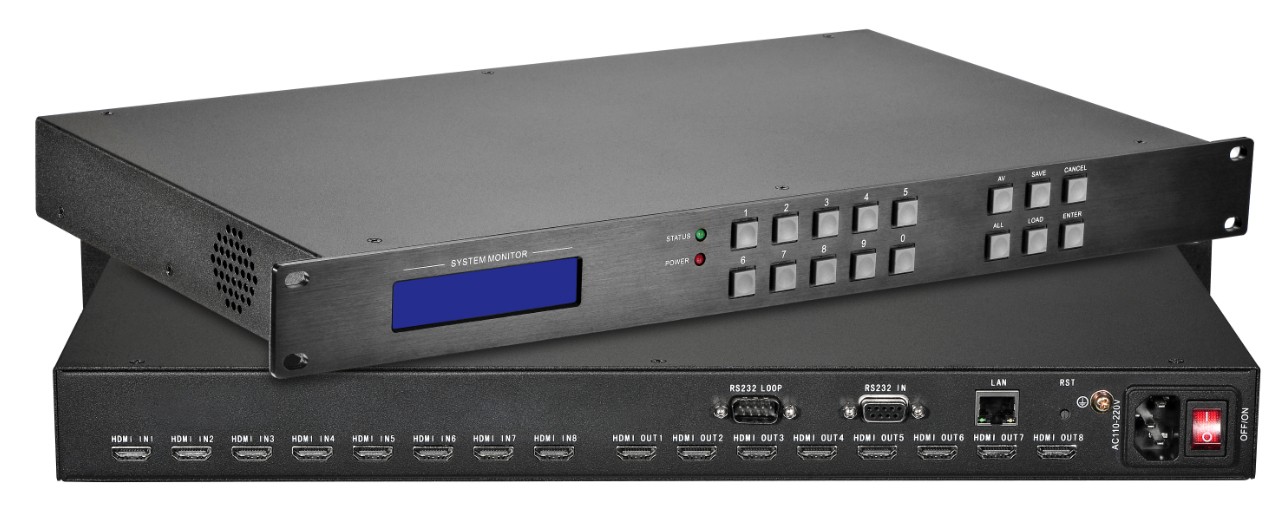

VS-HK8 User Manual
Conference System Digital Conferencing SolutionsThe VS-HK8 is a high performance UHD HDMI cross matrix switcher, which can cross-switch up to 4K*2K resolution HDMI signal between the 8 inputs and the 8 outputs, either with or without HDCP. It can be operated through versatile ways: RS-232, LAN, front panel buttons, and third party control systems. Its high performance and easy-to-manage property make allow it to be applied in both industrial and household projects, such as Broadcast & TV Stations, Meeting Halls, Big Display Projects, Hospital
Conference System Digital Conferencing Solutions
Description
The VS-HK8 is a high performance UHD HDMI cross matrix switcher, which can cross-switch up to 4K*2K resolution HDMI signal between the 8 inputs and the 8 outputs, either with or without HDCP. It can be operated through versatile ways: RS-232, LAN, front panel buttons, and third party control systems. Its high performance and easy-to-manage property make allow it to be applied in both industrial and household projects, such as Broadcast & TV Stations, Meeting Halls, Big Display Projects, Hospitals, Schools, Home Theaters, etc.
Features
- 8 HDMI inputs, 8 HDMI outputs
- Support 3GHz video formats up to 4k × 2k @24 Hz/25 Hz/30 Hz, and all mandatory HDMI 3D TV formats
- HDCP and DVI compliant
- Support HDMI 1.4
- Supports 10/100Mbps Ethernet network connection
- Supports Baudrates up to 115200bps
- Lossless and delay-less HDMI cross-switching
- Versatile Control Methods: Panel Buttons with LCD, RS232, TCP/IP control with RJ45 interface
- Support Mode Saving function: can save and recall 32 different scenes
- Support default HDMI EDID and reading EDID from display devices
- Input HDMI cable length up to 30 meters
- Standard rack-mounting installation design
- Support iOS App control
Specifications
Model | VS-HK8 |
| Input type | HDMI |
| Output type | HDMI |
| Video Protocol | HDMI 1.4, HDCP 1.3, compliant to DVI1.0 |
| Maximum resolution | Up to 4kx2k at 24 Hz/25Hz/30Hz |
| HDMI interface | Type A, 19 pin, female |
| Serial Interface | RS-232 IN, DB9, Female; RS-232 OUT, DB9, Male |
| Input cable length | Adaptive equalizer for cable lengths up to 20 meters |
| Output cable length | ≤ 15m |
| RJ45 control protocol | TCP/IP |
| Ethernet rate | Self-adaptive 10M/100M |
| Storage environment | Temperature: -20℃ ~ +70℃, humidity: 10%~90% |
| Work environment | Temperature: -20℃ ~ +70℃, humidity: 10%~90% |
| Power supply | AC 110~240V |
| Maximum power dissipation | 22W |
| Dimensions(WxDxH) | 1U（440mmx263mmx44mm） |
| Weight | About 4.3KG |
| MTBF | 30,000 hours |
| Warranty | One year warranty and lifetime maintenance |
