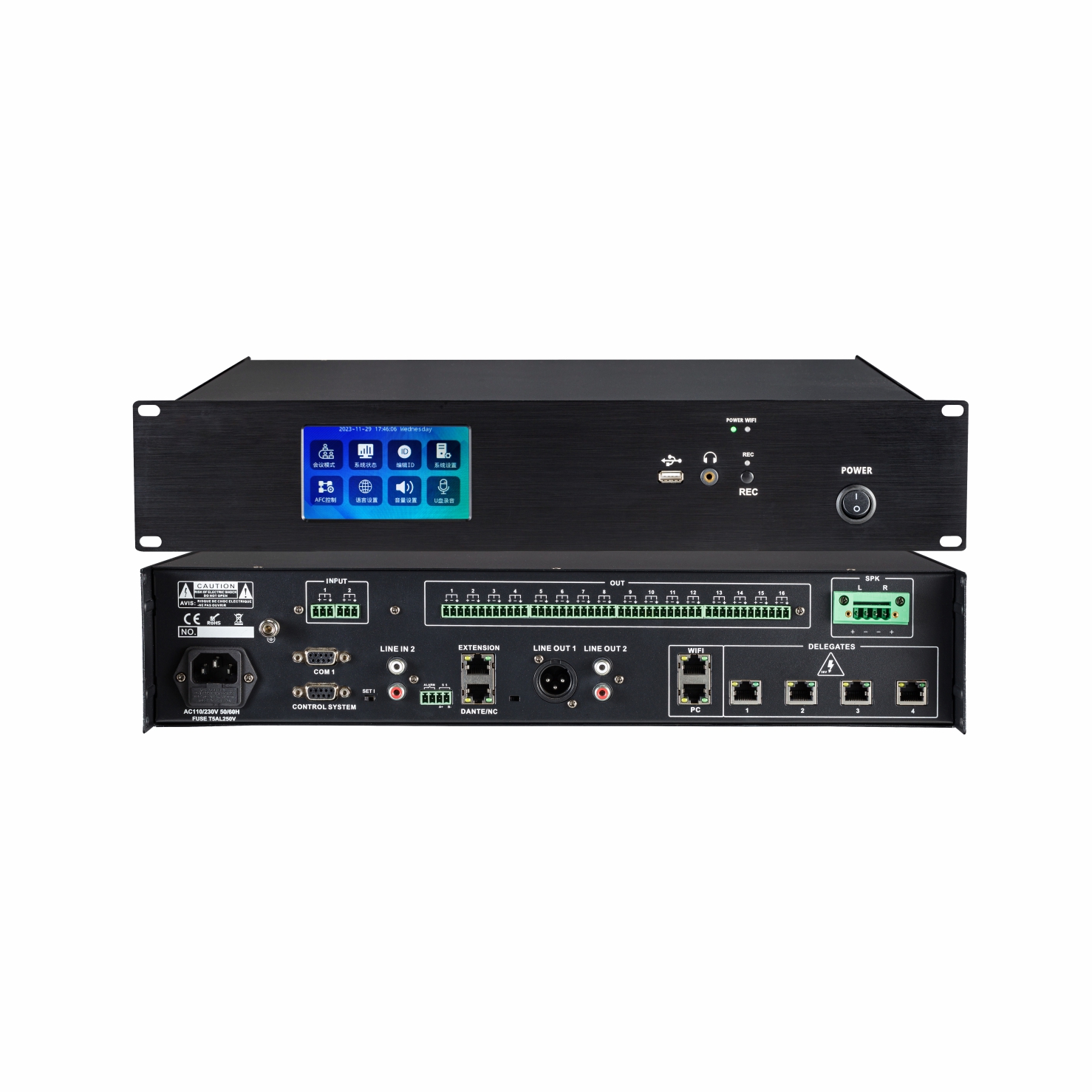

5G Wi-Fi Wireless Conference System Controller 5G-100MC
Conference System Wireless Conference SystemWireless Conference system, wireless audio conference system, wireless digital conferencing system, wireless Audio Conferencing System for Small Meeting Rooms, wireless digital conference microphone system, wireless digital conferencing microphone system, wireless Audio Conferencing System for big Meeting Rooms, wireless discussion conference system mic
Conference System Wireless Conference System
Features:
- Compatible with CE, EMC, ISO9001, ISO14001, EC 60914 & GBT15381-94
- Non compressed audio transmission, 48K sampling rate, 80Hz~16KHz bandwidth
- Support 6 wireless microphones on discussion simultaneously
- The 5G Wi-Fi wireless conference system capacity is of max 300 wireless microphones
- Built-in DSP processor,with audio matrix, noise suppression, EQ,volume,delay and other adjustment functions
- Support PELCO/VISCA camera control protocols, support camera auto tracking through IR & presets
- Support PC software management via TCP/IP control;supports both C/S and B/S architectures, which can be controlled by PC software or browsers
- Support simultaneous interpretation function, can transmit 63+1 wired simultaneous interpretation at the same time
- With a 4.3” HD touch screen, can set parameters or view by touch operation
- With USB recording function, the physical buttons on the panel can enable recording with one click, and there is a recording status indicator light prompt
- Supports 10 EQ adjustment functions, with 16 multifunctional output channels and 2 LINEOUT output channels both having 10 EQ adjustment functions
- DANTE protocol audio output module (optional)
- Equipped with an 8 Ω 2 * 50W power amplifier output function, it can directly provide audio amplification
- Include 1 RCA and 2 Phoenix terminals. The audio output interface includes 1 RCA, 1 Canon head, and 16 Phoenix terminals. Each output channel can adjust parameters such as EQ, delay, volume, etc.
- Support RS232 central control to achieve microphone on/off, priority, volume control, shutdown, and other controls.
- Support 16 channel role separation output mode, wired or wireless units can independently output sound, and support independent recording of each unit through recording software, while also supporting voice transcription device docking to achieve role separation
- The 16 channel simultaneous interpreting output mode can output the voice of the interpreter independently and provide external equipment for recording or monitoring equipment
- 16 channel phased output mode, built-in nx16 audio matrix processor, realizing 16 channel grouped output function, outputting to any channel at any volume ratio
- Four microphone management modes: FIFO (first in, first out), NORMAL (normal mode), VOICE (voice control mode), and APPLY (application mode).
- Support four operational language: English/Chinese/French/Russian
Specification
| Model | 5G-100MC |
| Description | 5G Wi-Fi Wireless Conference System Controller |
| System Capacity | 300 units |
| Function | Sign-in/Discussion/Voting |
| Network Interface | RJ45 |
| Control Interface | Dante interface, RS232/485 interface |
| Display | 4” full-color touch screen display |
| S/N | >80dB |
| T.H.D | <0.05% |
| Static Power Consumption | 30W |
| Output Power Consumption | 350W |
| Dynamic Range | >80dB |
| Frequency Response | 80Hz~16KHz |
| Communication distance | <100m |
| Dimension | 484×405×88mm |
| Power Supply | AC110V-230V/50Hz |
| Optional Function | Auto-video tracking, simultaneous interpretation & AV automation control system |
Connection Diagram:
