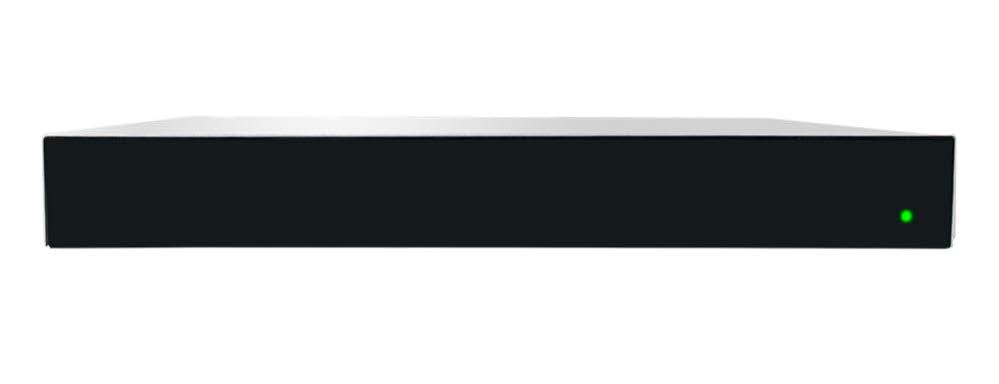

8K Ultra HD Video Conference Split End User Manual VC-P800C
Conference System Digital Conferencing SolutionsThe 8K level ultra high definition video conference split terminal user manual is suitable for administrators who need to configure, customize, and manage terminal products, as well as troubleshoot system issues.
Conference System Digital Conferencing Solutions
DESCRIPTION
The 8K level ultra high definition video conference split terminal user manual is suitable for administrators who need to configure, customize, and manage terminal products, as well as troubleshoot system issues.
- This guide is mainly applicable to the following engineers:
- System administrator
- technical support
Technical Parameter
Project | Subitem | Index |
| Standards to be followed | Communication standards | ITU-H.323、SIP、SCM Cloud Protocol |
| Video standards | H.264、H.264 MP、H.264 HP、H.265 | |
| Audio standards | G.711、G.722、G.722.1、G.722.1C、OPUS | |
| Double stream standard | H.239 | |
| Network standards | TCP/IP DHCP HTTP | |
| Video Characterist ics | Active image resolution | 4KP30、1080P60、1080P30、720P60、720P30、4CIF |
| Data content resolution | HDMl Input: 1280x720P 60fps/50fps/30fps /25fps、1920x1080P 60fps/50fps/30fps /25fps 、3840x2160P 60fps/50fps/30fps /25fps HDMI OutPut: 1280*x720P 60fps/50fps/30fps /25fps、1920x1080P 60fps/50fps/30fps /25fps 、3840x2160P 60fps/50fps/30fps /25fps 、7680x4320P 60fps/50fps/30fps /25fps | |
| Call bandwidth | 64Kbps-8Mbps | |
| Display method | Support 4：3and16：9 | |
| Interface | VIDEO IN | 1 HDMI input interface and 1 USB input |
| Video Output | 1 HDMI and 1 Type-C expansion output port | |
AUDIO IN | 2-way audio input interface: LINE IN * 1, USB omnidirectional microphone | |
| AUDIO Output | 3-way audio output interface, HDMI * 1, LINE OUT * 1,USB omnidirectional microphone | |
| Network interface | 1 Gigabit Ethernet port | |
| USB interface | 2 USB 2.0, 1 USB 3.0, and 1 RS232S serial port | |
| WIFI interface | 1 WIFI antenna interface, supporting 2.4/5GHz dual band signals | |
| Infrared Interface | 1 Infrared Interface | |
| physical property | Environmental temperature requirements | 0 ℃ ~35 ℃ (working state) -40 ℃ ~55 ℃ (non working state) |
| Relative humidity | 10% to 80% (working state) 0% to 95% (non working state) (non condensing) | |
| Power supply | DC 12V |
