HD recording manual of operation VC-2000A
Conference System Digital Conferencing SolutionsMultimedia Teaching Central Control Host (4+2),provide no less than 4 HD SDI video input interfaces and 2 HDMI inputs, 1 HDMI video output interface and 1 VGA video output interface,RJ45 network interface,3pcs 2 USB 2.0 and one USB 3.0
Conference System Digital Conferencing Solutions
Functional features
- HD recording
Hd recording host software mainly for the classroom class environmenthd recording, recording of the video support MP4 \ FIV courseware,recording end automatic save, but also support multiple channel recording at the same time, with fast, simple operation, time-saving, through the recorded video can be adjusted through different standards, the highest definition support 1080P@60. In order to ensure the clarity and viewing effect of the video.
- live broadcast
Hd recording host software, on the basis of no additional equipment, can be different schools, different classrooms, multi-concurrent live broadcast, the local live broadcast courseware can also be pushed through the streaming media server to the school platform for large concurrent real-time live broadcast courseware.
- Manual direct broadcast
The guide interface can be freely switched over, and different resource Windows can be manually switched to the guide interface, or freely switched over in an intelligent way, so as to record and live broadcast for different videos
- Remote interaction
On the premise of not adding equipment, remote interactive video can be connected between different classrooms. A single classroom can be connected to access remote interactive video of multiple classrooms, and interactive video can be switched freely between. At the same time, the sound of distant interactive video will also come in with the access, increasing the viewing effect of the video.
- Remote guide micro class
Without the need to add equipment, you can support remote directing,teaching resource editing and management, remotely control the imaging machine cloud head and video directing functions, support the recorded courseware resources on demand, download, directory editing, at the same time, support courseware online editing, cut into a micro class, and share to the platform.
plant parameter
HD recording host | |
| model | Slim1 |
| video in | A 4-way SDI / RTSP network flow The 3-way HDMI |
| video monitor 525 vidicon video out | A 2-way HDMI interface |
| network interface: | Gigabit Ethernet port: 1 road |
| Other interfaces: | RS232 control port 6 road USB2.03 road USB3.01 road |
| working temperature | 0℃~+50℃ |
| source | DC12V±10% |
| size: | Standard 19-inch 1U equipment |

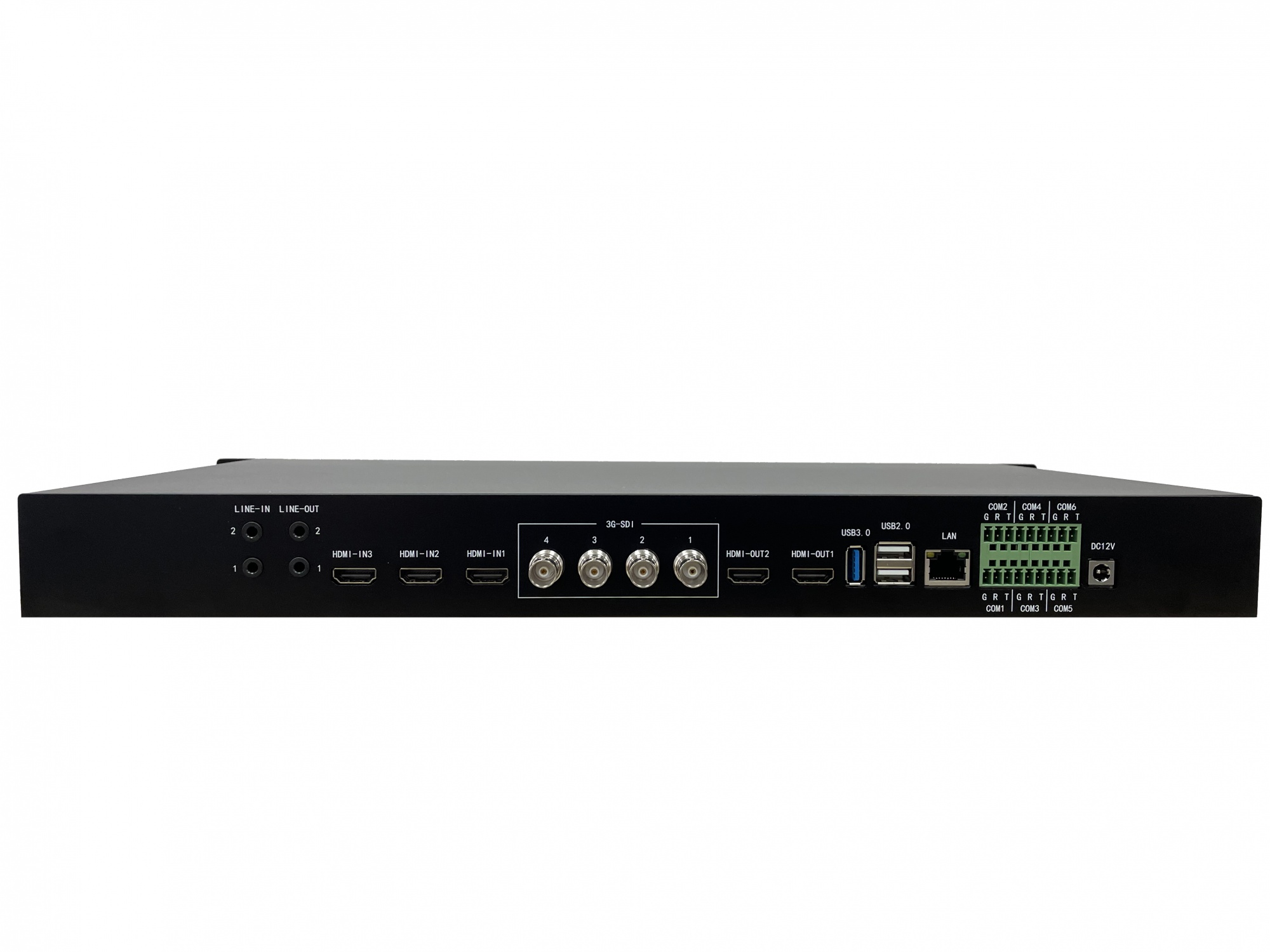

Description
- LINE IN1 / 2 audio input interface can be selected for audio source input interface
- LINE OUT1 / 2 audio output interface is mainly used for recording and broadcasting the audio ring out
- The HDMI IN1 / 2 / 3 video input interface is used for access to the classroom peripheral video access. Such as the teacher computer, physical booth and so on.
- SDI interface is mainly used to connect HD camera video access and support network flow input
- HDMI OUT2, the output interface is mainly used to connect the display screen and output the local broadcast interface of the recording host
- HDMI OUT1, the output interface is mainly used for recording the live broadcast screen output of the host
- The USB 3.0 interface is mainly used for local video copies
- The USB 2.0 interface is mainly used to connect to USB devices, such as keyboard, mouse and other USB devices
- LAN port Gigabit Ethernet interface
- Com1-6 RS232 control interface is used for external broadcast keyboard, desktop control,camera control, etc
- 12V Power supply input interface
