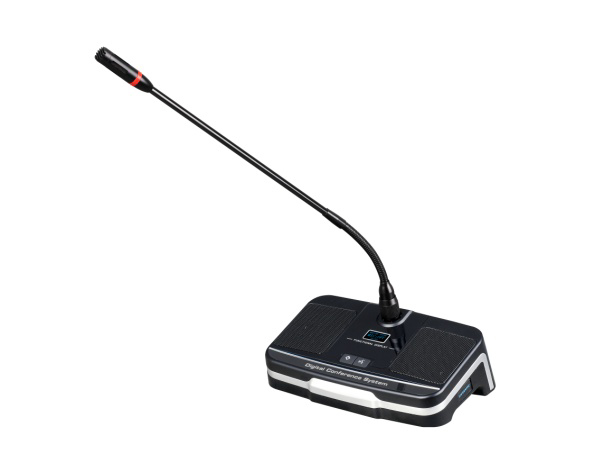

Digital Conference System (CAT6 & Recording) CS-903, Chairman Unit CS-904, Delegate Unit
CS-903 and CS-904 is digital conference system microphone system of discussion function.
Features:
- Digital conference system microphone system of discussion function.
- CS-903 is chairman unit with priority over CS-904 delegate unit.
- Digital conference system by CAT6 cable and RJ45 port, 8 wired cable and 8 PIN connector as spare use.
- Super cardioid directive condenser pickup
- Special anti-jamming circuit design without interference with mobile, wi-fi, Bluetooth and radio system.
- Each controller supports 10 chairman microphones and 100 delegate microphones.
- Support multiple discussion modes: free, first in first out, and limited discussion.
- Support free discussion quantity of 1, 2, 3 and 5.
- With round ring indicator will be light on when microphone on.
- Human voice pick up distance up to 15-60cm.
- Flexible gooseneck microphone of black color.
- Each microphone with volume attenuator.
- With 0.96” OLED to display the ID and working status.
- Power supply direct from digital conference system controller CS-900.
Specification:
| Model | CS-903 | CS-904 |
| Description | Chairman Unit | Delegate Unit |
| System Capacity | 100 units and 1000 units by cascaded more extension controller | |
| Connection Way | Hand in hand | |
| Power Supply | DC24V by controller CS-900 | |
| Voice Pickup Distance | 15-60cm | |
| Sensitivity | ||
| Max SPL | 125dB | |
| THD | <0.05% | |
| S/N Ratio | >80dB | |
| Frequency Response | 30Hz-20KHz | |
| Impedance | 2k Ohm | |
Direction | 0°/180°>20dB, 1kHz | |
| Indicator | Red round ring indicator light on when microphone on | |
| Gooseneck Length | 400mm | |
| Display | 0.96” OLED to display the ID and working status. | |
| Connector | One RJ45 port by CAT6 cable and one 8 PIN port as spare use | |
| Finish | ABS in black | |
| Dimension | 205(W)×115(D)×60(H)mm | |
| Weight | 1kg | |
