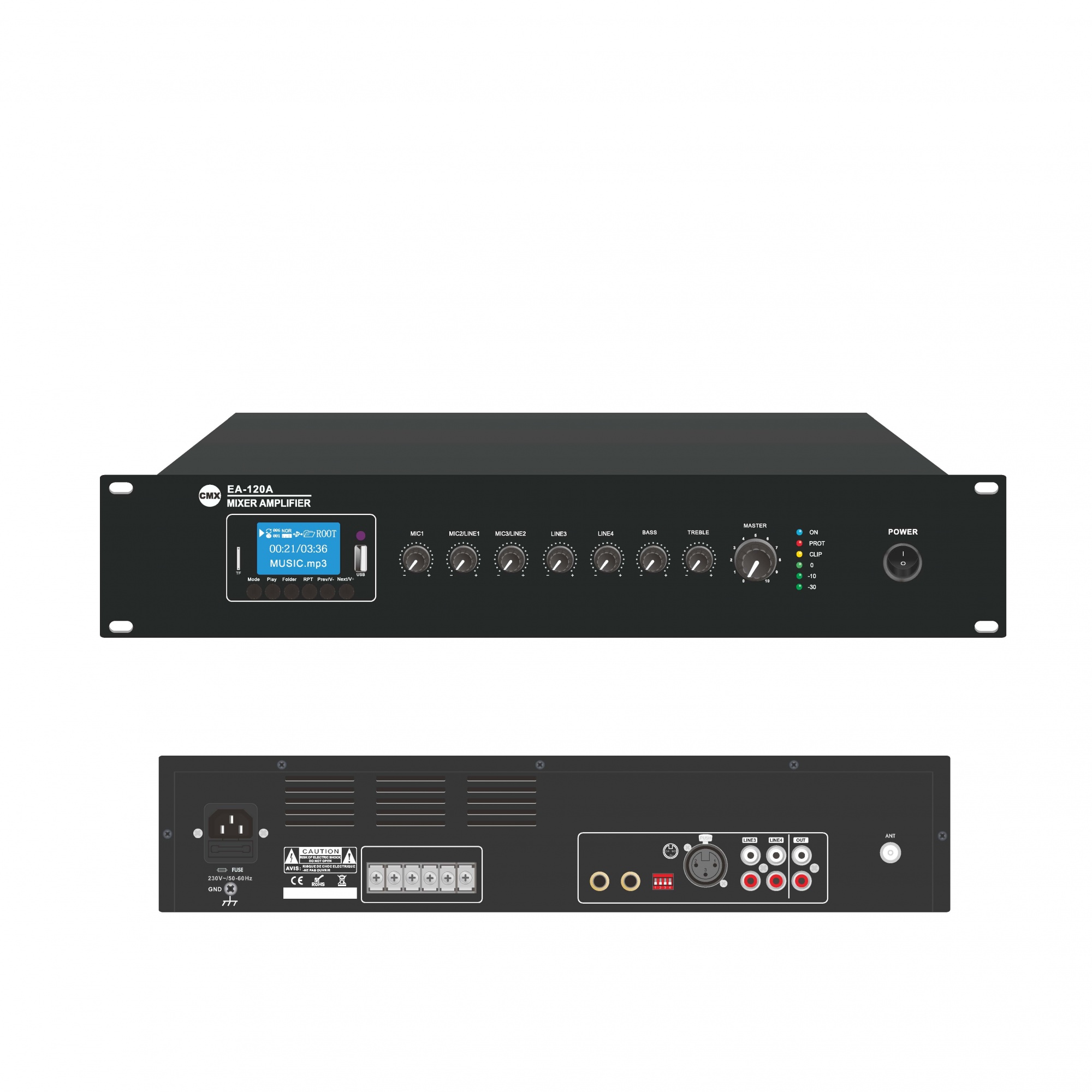

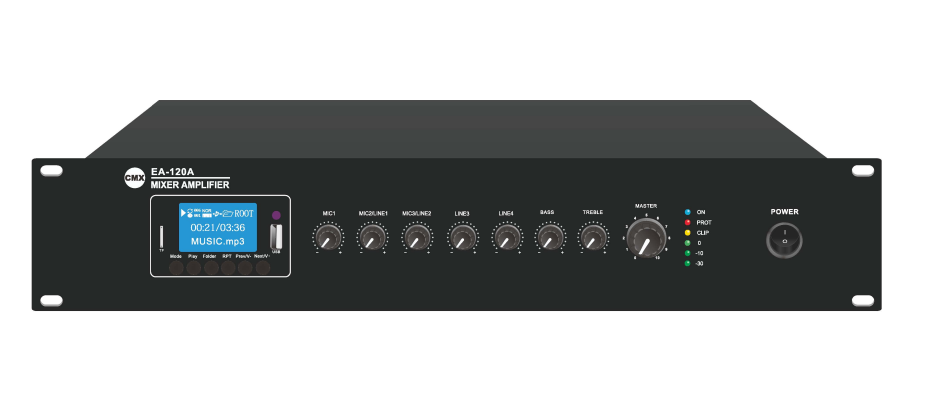

Mixer Amplifier with USB/SD/FM/Blue Tooth EA-60A/EA-120A/EA-240A/EA-350A/EA-500A
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersMixer Amplifier with USB/SD/FM/Blue Tooth EA-60A/EA-120A/EA-240A/EA-350A/EA-500A are 19" rack mount mixer amplifier for commercial audio & public address use, 3 mic, 2 aux inputs, 100V/70V & 4-16 Ohm, RMS power from 60W, 120W, 240W, 350W to 500W.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Mixer Amplifier with USB/SD/FM/Blue Tooth
EA-60A/EA-120A/EA-240A/EA-350A/EA-500A
Features:
- Compact mini size public address amplifier
- Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 60W, 120W, 240W, 350W to 500W
- Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
- LED indicators for power, clip, protect and signal
- Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
- Mic/line2-3 switchable inputs unbalanced 6.3mm jack
- Line 1-2 input of RCA input and one RCA line output
- Volume control for Mic1-3, line1-2, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- AC230V power supply system
Specification:
Model | EA-60A | EA-120A | EA-240A | EA-350A | EA-500A |
Description | Mixer Amplifier with USB/SD/FM/Blue Tooth | ||||
Rated Power Output | 60W | 120W | 240W | 350W | 500W |
Speaker Outputs | 100V or 70V & 4 Ohm-8 Ohm-16 Ohm | ||||
Connector | Mic1 input by balanced XLR with phantom power & VOX highest priority Mic/line switchable input 2-3 unbalanced 6.3mm jack Line1-2 inputs by RCA; Line output by RCA | ||||
Input | MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | ||||
Line Out | 0.775(0dBV) | ||||
Frequency Response | 60Hz-15kHz(±3dB) | ||||
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | ||||
THD | Less than 0.5% | ||||
Protection | Short-circuit, clip, overload and high temp protection | ||||
Power Consumption | 80W | 150W | 310W | 450W | 650W |
Power Supply | AC230V; 50-60Hz | ||||
Dimension | 484×405×88mm | ||||
Weight | 7.0kg | 7.1kg | 8.6kg | 8.7kg | 8.9kg |
