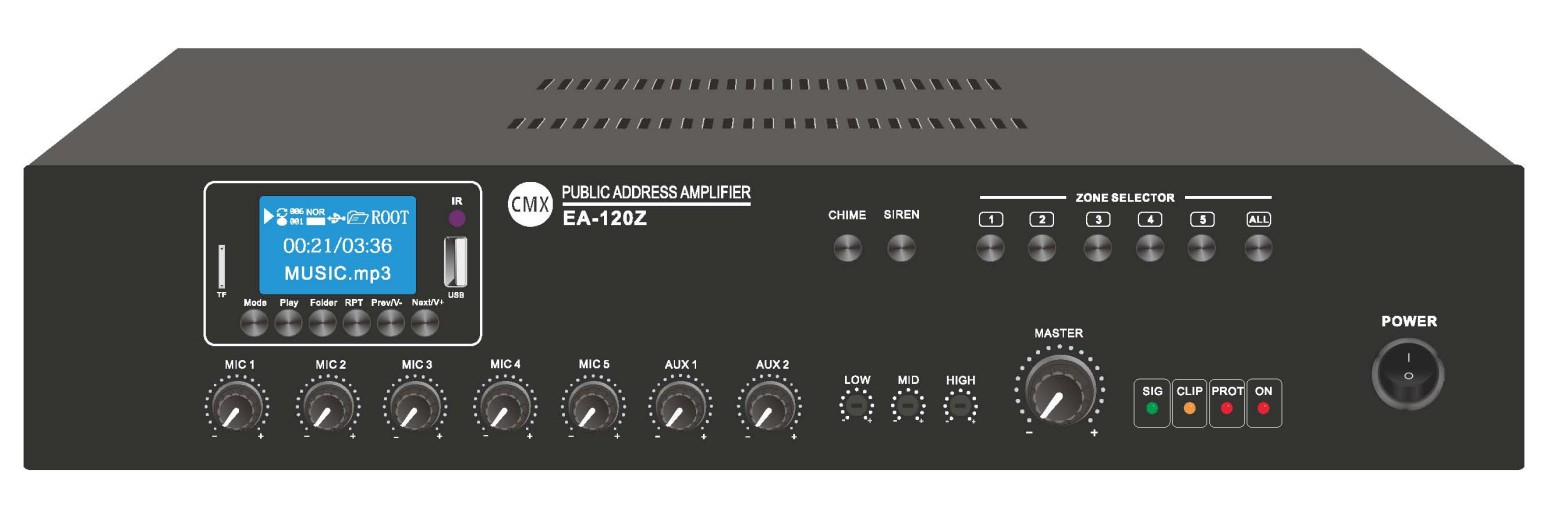

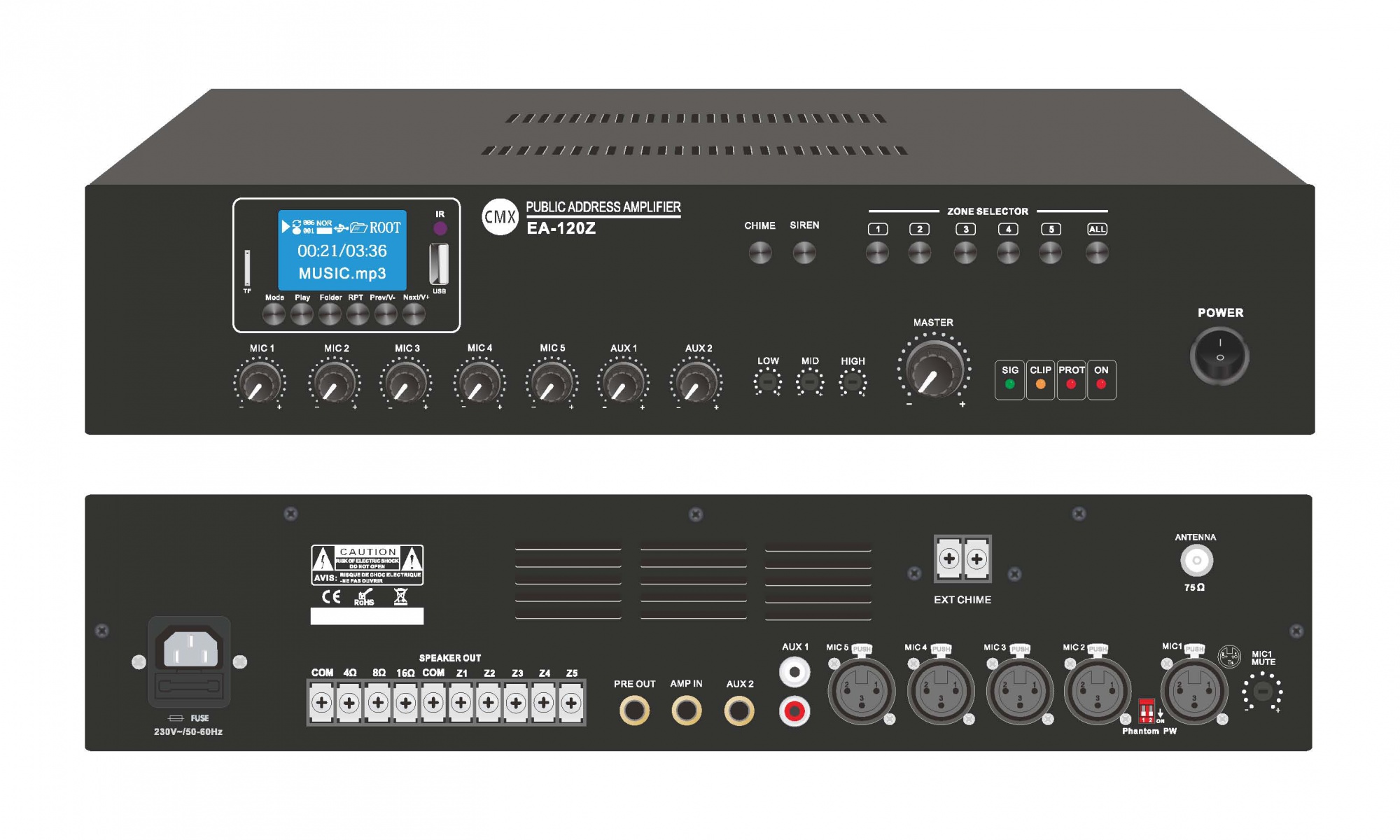

5 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth EA-60Z/EA-120Z/EA-240Z/EA-350Z/EA-500Z/EA-650Z
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Zone Paging5 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth EA-60Z/EA-120Z/EA-240Z/EA-350Z/EA-500Z/EA-650Z is a 5 zone mixer amplifier with 7 Inputs includes Mic1-5 XLR inputs and Aux 1-2 inputs, it is ideal for multiple zone paging system and multiple zone background music system mixer amplifiers. RMS power from 60W to 650W divided into 5 zones.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Zone Paging
Features:
- Tabletop 5 zone mixer amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 60W, 120W, 240W, 350W, 500W& 650W
- 5 zone speaker outputs 100V & single zone speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
- EXT Chime for closed trigger input to activate the 4 tone chime and siren
- Mic1 priority &mute level attenuator
- +48V Phantom power for Mic1 & Mic 2
- 7 Inputs includes Mic1-5 XLR inputs and Aux 1-2 inputs
- Amp input and Pre output for external amplifier link
- EQ of low, middle, high and master tone control
- Complete amplifier protection includes short-circuit, clip, overload and high temp
Specification:
Model | EA-60Z | EA-120Z | EA-240Z | EA-350Z | EA-500Z | EA-650Z |
Description | 5 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth | |||||
Rated Power Output | 60W | 120W | 240W | 350W | 500W | 650W |
Speaker Outputs | 100V or 70V & 4 Ohm-8 Ohm-16 Ohm 5 Zone speaker outputs 100V | |||||
Connector | Mic1-5 input by balanced XLR; Aux 1 RCA input, Aux 2 6.3mm phone jack input Amp input 6.3mm phone jack, Pre Output 6.3mm phone jack EXT Chime for closed trigger input to activate the 4 tone chime and siren Mic1 Mute attenuator, Mic1-2 +48V phantom power on/off dipswitch | |||||
Input | MIC1-5: 5-8mV, 600Ω; Aux 1-2, 150-470mV, 10KΩ | |||||
Line Out | 0.775(0dBV) | |||||
Frequency Response | 60Hz-15kHz(±3dB) | |||||
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | |||||
THD | Less than 0.5% | |||||
Protection | Short-circuit, clip, overload and high temp protection | |||||
Power Consumption | 80W | 150W | 310W | 450W | 650W | 800W |
Power Supply | AC230V; 50-60Hz | |||||
Dimension | 484×350×88mm | |||||
Weight | 7.0kg | 7.1kg | 8.6kg | 8.7kg | 8.9kg | 9.2kg |
