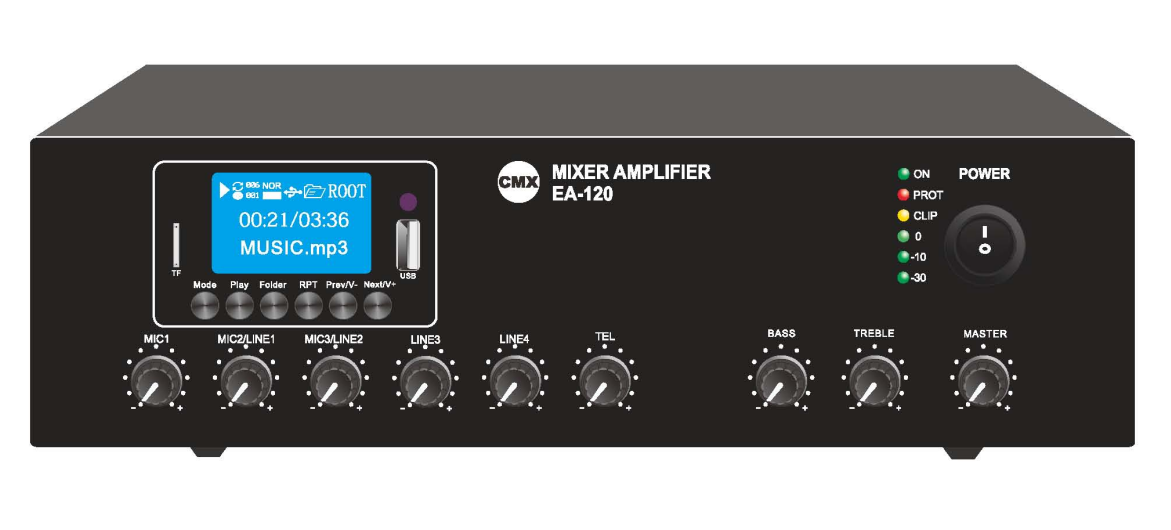

Mixer Amplifier with USB/SD & DAB+ FM & Blue Tooth, EA-30D EA-60D EA-120D
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers DAB+ AmplifierEA-30D, EA-60D & EA-120D is mixer amplifier with DAB+, USB/SD & Bluetooth, its RMS power of 30W, 60W to 120W. 3 mic and 2 aux inputs, support 100V & 8 Ohm loudspeakers connection.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers DAB+ Amplifier
- Tabletop mixer amplifier with media player
- Built-in medial player with USB/SD, FM/DAB+ & Bluetooth
- Rated power output at 30W, 60W to 120W
- Speaker output of 100V or 70V & 4-16Ω
- 3 x mic/line inputs, 2 x RCA line inputs, 1 x TEL input and 1 x RCA line output
- XLR input with switchable +48V phantom power
- With short-circuit, clip, overload and high temp protection
- 230V AC and 24V DC both power supply
Specification:
Model | EA-30D | EA-60D | EA-120D |
Description | Tabletop Mixer Amplifier with USB/SD & FM/DAB+ & Bluetooth | ||
Rated Power Output | 30W | 60W | 120W |
Speaker Outputs | 100V or 70V & 4-16Ω | ||
Connector | Mic1 input by balanced XLR with phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm jack Line1-2 inputs by RCA, Tel input with MOH, Line output by RCA | ||
Input | Mic1-3: 5-8mV, 600Ω; Line & TEL: 150-470mV, 10KΩ, unbalanced RCA | ||
Line Out | 0.775(0dBV) | ||
Frequency Response | 60Hz-15kHz(±3dB) | ||
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | ||
THD | Less than 0.5% | ||
Protection | short-circuit, clip, overload and high temp protection | ||
Power Consumption | 60W | 100W | 200W |
Power Supply | 230V AC & 24V DC; 50-60Hz | ||
Dimension | 320×210×90mm | ||
Weight | 3.7kg | 4.3kg | 4.9kg |
