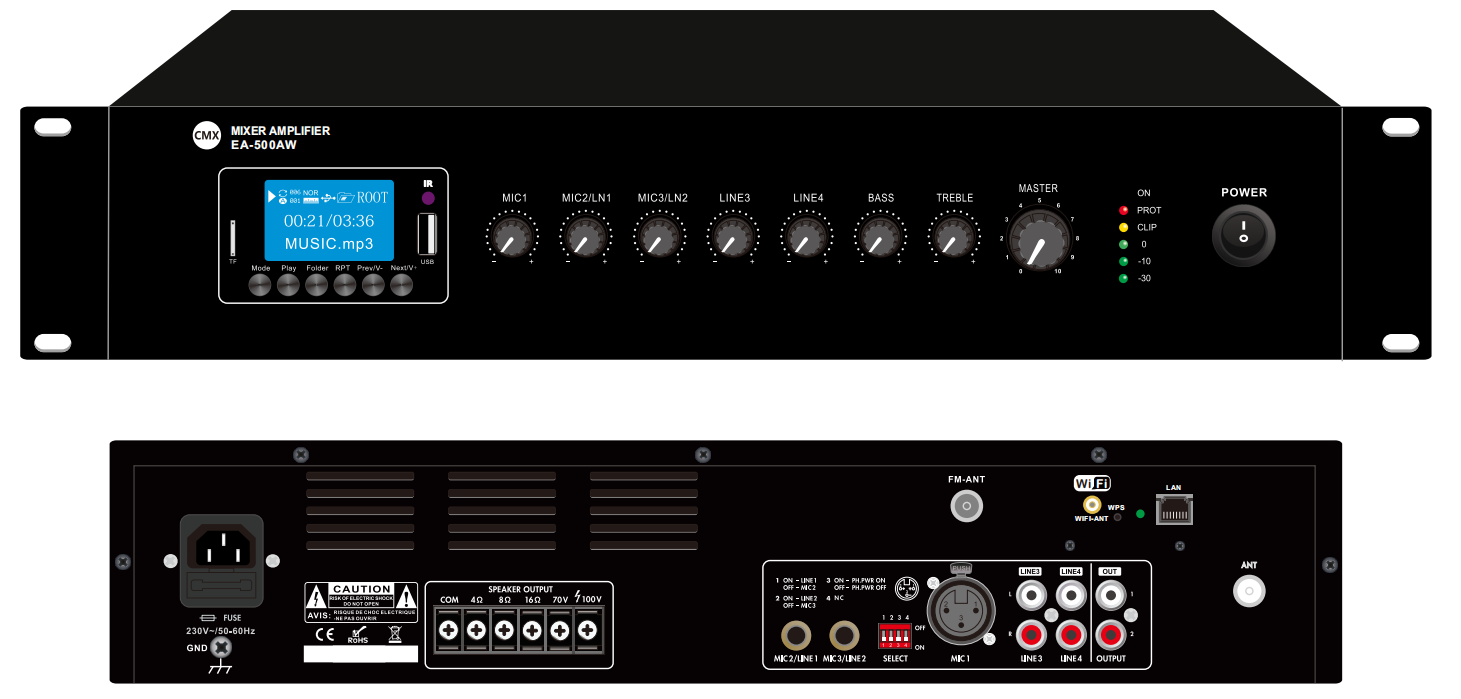

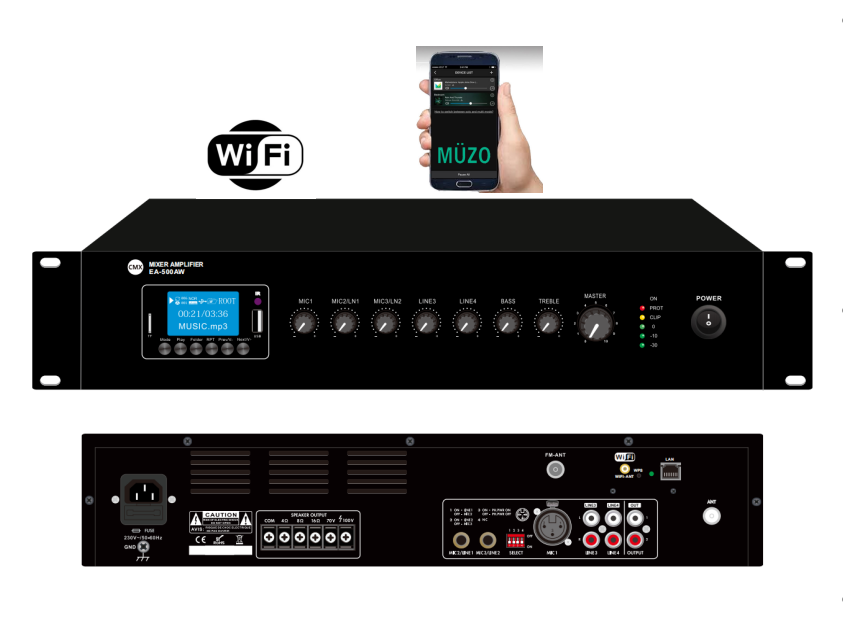

Wi-Fi Internet Streaming Amplifier with USB/SD/FM/Bluetooth EA-60AW/EA-120AW/EA-240AW/EA-350AW/EA-500AW/EA-650AW

Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Wi-Fi Amplifiers

Wi-Fi Internet Streaming Amplifier with USB/SD/FM/Bluetooth EA-60AW/EA-120AW/EA-240AW/EA-350AW/EA-500AW/EA-650AW Wi-Fi Internet Radio Streaming Mixer Amplifier with audio sources, support IOS and Google App download the linkplay add to use mobile for remote control, with 3 mic, 2 aux, EMC input,100V & 8 Ohms speaker outputs. The Wi-Fi mixer amplifier is of rated power output of 120W to 650W, which is designed to connect multiple units of 100V loudspeakers for background music system and paging s

Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Wi-Fi Amplifiers

Download Annex

Description:

Wi-Fi Internet Streaming Amplifier delivering from 60W up to 650W output with Bluetooth and Wi-Fi streaming capability. Controlled from an Android or iOS smart phone, the Wi-Fi module is compatible with freely available apps to stream music and podcasts directly from a Wi-Fi network. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide. Subscription services can store online playlists which can be cast directly from the internet without requiring the smart phone to be connected to the network. Wireless streaming of tracks and playlists stored on the smart phone can be sent from within the app or directly via Bluetooth to the amplifier. In addition, the Wi-Fi Internet Streaming Amplifier has inputs for USB and TF card for playback of stored tracks. The Wi-Fi Internet Streaming Amplifier provides a versatile "hands off" background music solution for continuous playback of music from internet services or a choice of other sources for bars, cafes, restaurants, reception areas and house parties. The Wi-Fi Internet streaming Amplifier support multiple zone or multiple room of different music, while it also support multiple mobile to remote control over Wi-Fi, so remote volume and music control is easy for both commercial or home audio applications.



Feature:

  • Compact mini size Wi-Fi Internet Streaming amplifier
  • Tabletop Wi-Fi mixer amplifier with Mp3 player, FM radio & Bluetooth
  • Wi-Fi streaming amplifier with smart phone control
  • Free Wi-Fi Legacy Player app for Android or iOS
  • Support Spotify, DLNA, airplay, internet radio and any online radio stations.
  • Support multiple zone or multiple room of different music
  • Support multiple mobile to remote control over Wi-Fi
  • With LAN port and WPS to reset Wi-Fi address
  • Rate power output at 60W, 120W, 240W, 350W, 500W to 650W
  • Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
  • Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
  • LED indicators for power, clip, protect and signal
  • Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
  • Mic/line2-3 switchable inputs unbalanced 6.3mm jack
  • Line 1-2 input of RCA input and one RCA line output
  • Volume control for Mic1-3, line1-2, bass/treble and master
  • Complete amplifier protection includes short-circuit, clip, overload and high temp


Specification:

Model

EA-60AW

EA-120AW

EA-240AW

EA-350AW

EA-500AW

EA-650AW

Description

Wi-Fi Internet Streaming Mixer Amplifier with USB/SD/FM/Blue Tooth

Rated Power Output

60W

120W

240W

350W

500W

650W

Speaker Outputs

100V or 70V & 4 Ohm-8 Ohm-16 Ohm

Connector

Mic1 input by balanced XLR with phantom power & VOX highest priority

Mic/line switchable input 2-3 unbalanced 6.3mm jack

Line1-2 inputs by RCA; Line output by RCA

Input

MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA

Line Out

0.775(0dBV)

Frequency Response

60Hz-15kHz(±3dB)

S/N Ratio

Line ≥ 85dB, Mic≥ 72dB

THD

Less than 0.5%

Protection

Short-circuit, clip, overload and high temp protection

Power Consumption

80W

150W

310W

450W

650W

800W

Power Supply

AC230V; 50-60Hz

Dimension

484×405×88mm

Weight

7.0kg

7.1kg

8.6kg

8.7kg

8.9kg

9.5kg


Wi-Fi Internet Streaming Amplifier with USB/SD/FM/Bluetooth EA-60AW/EA-120AW/EA-240AW/EA-350AW/EA-500AW/EA-650AW
Wi-Fi Internet Streaming Amplifier with USB/SD/FM/Bluetooth EA-60AW/EA-120AW/EA-240AW/EA-350AW/EA-500AW/EA-650AW Wi-Fi Internet Radio Streaming Mixer Amplifier with audio sources, support IOS and Google App download the linkplay add to use mobile for remote control, with 3 mic, 2 aux, EMC input,100V & 8 Ohms speaker outputs. The Wi-Fi mixer amplifier is of rated power output of 120W to 650W, which is designed to connect multiple units of 100V loudspeakers for background music system and paging s
