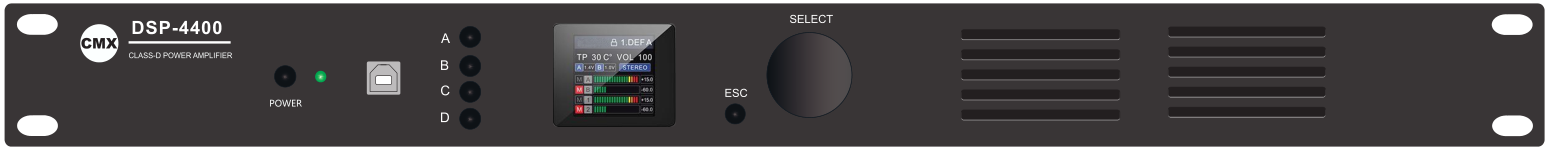

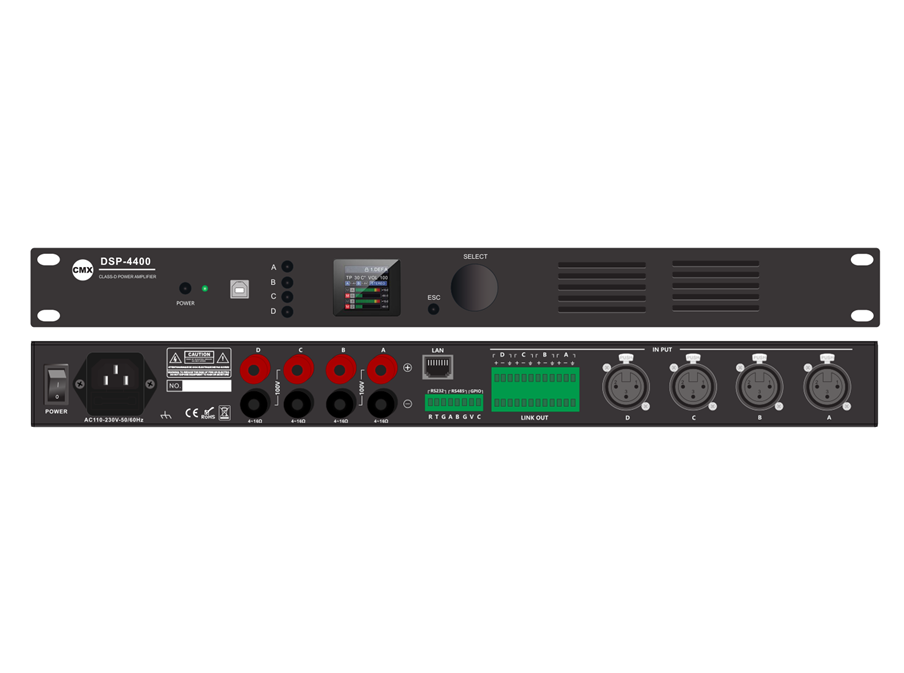

4-Channel Amplifiers with DSP Processor DST-4400 DST-4300 DST-4200
Professional Sound Commercial Audio PA Amplifiers 100V 70V Amplifiers Power Amplifier DSP Amplifiers4-Channel Amplifiers with DSP Processor DST-4400 DST-4300 DST-4200 Four Channel Amplifier with DSP Processor is one two channel low impedance amplifier built-in DSP processor, ideal for high performance fixed installation sound system like house or worship, lecture room and concert room etc. 4 channel professional audio power amplifier with 4 IN 4 OUT DSP processor, support 100V & 8 Ohms speaker connection, this range amplifier power output from 400W by four channels to 200W by four channels at
Professional Sound Commercial Audio PA Amplifiers 100V 70V Amplifiers Power Amplifier DSP Amplifiers
Description
The DST-4400 is 4-channel flexible amplifiers with DSP processor for high performance installation sound system. The 4-channel power amplifiers with DSP processor are rated power output at 4 x 200W to 4 x 400W@ 8 Ohm which provide an enormous flexibility for different size sound system applications. The DSP processor in combination with remote management software gives user friendly experience with intuitive functions overview for easy configuration. Acoustics can be optimized using noise gate, matrix mixer, PEQ, crossover, delay, compressor, Butterworth, Bessel, Linkwitz6~24. These settings can be custom configured using the English remote software by mini USB port on front panel. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded to the amplifier. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. The amplifier built-in 4 Input 4 Outputs high performance DSP processor, which can ensure each input and output could be managed respectively. One mini USB on front panel for DSP configure. There are four balanced line inputs by XLR. The amplifiers support 100V & 8 Ohm both commercial audio & professional audio applications, where an output selector could enable this function for dedicated sound system. The installation of this 4-channel amplifier with DSP allows receiving and sending of low latency, high quality audio with multiple Presets. Dante (DT44) or AES67 (AES674) enabled network module are optional to add.
Feature:
- 4-channel amplifier with DSP processor
- Rated power output at 4 x 200W to 4 x 400W@ 8 Ohm
- Support 4Ω, 8Ω & 100V, mono, free matrix, stereo & bridge modes
- Built-in DSP with EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter
- 31 bands of input PEQ and 10 bands of output PEQ
- 30 presets of DSP (Digital Signal Processor)
- 4 In 4 Out matrix DSP processor
- One mini USB port on front panel for DSP configure
- 0dBu/6dBu sensitivity adjustment for each input
- Remote GPIO of RS232 & RS485
- 1U height 19” rack mount type power amplifier
- Balanced line input by XLR for four channels
- Complete short circuit, overload, high temp, clip and DC protection
- Dante (DT44) or AES67 (AES674) enabled network module are optional to add
Specification:
Model | DST-4400 | DST-4300 | DST-4200 |
Description | 4-Channel Amplifier with DSP Processor | ||
Rated Power Output 8 Ohm | 4 x 400W | 4 x 300W | 4 x 200W |
Rated Power Output 4 Ohm | 4 x 800W | 4 x 600W | 4 x 400W |
Rated Power Output 100V | 2 x 400W | 2 x 300W | 2 x 200W |
Bridge Output 8 Ohm | 1000W | 800W | 600W |
Speaker Output | 4Ω, 8Ω & 100V, mono, free matrix, stereo, bridge | ||
DSP | EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter, Butterworth, Bessel, Linkwitz6~24 Mini USB for configure, monitoring & control via fully manageable remote PC software | ||
Frequency Response | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) | ||
Input | 6dBu, Max. 16dBu (4.9V), balanced XLR by four channels | ||
THD | <0.1% (1KHz/-3dBv, 300W) | ||
S/N Ratio | 6dBu: 94dB, 0dBu: 94dB | ||
Crosstalk | <-70dB | ||
Gain Control | 6dBu: 30dB（29.5 times）, 0dBu: 36dB（31.1 times） | ||
Protection | DSP limiter, High temperature, DC, high frequency, short circuit, back EMF, peak current limiter, Back EMF, Surge current limiter, startup delay, power circuit breaker protection, power over voltage , under voltage protection | ||
Display | 240x240 pixel, IPS LCD colorful English Display | ||
Power Consumption | 2000W | 1600W | 1000W |
Power Supply | AC input switchable between 180~260V, 50-60Hz | ||
Dimension | 484x300x44 mm | ||
Weight | 5.4Kg | ||
DSP (4 IN 4 OUT)Specifications | |||
Input PEQ | 31 PEQS | ||
Output PEQ | 10 PEQS | ||
Crossover | Butterworth, Bessel, Linkwitz6~24 | ||
Output Delay | Input Delay: 2 x 80ms / Output Delay: 4 x 20ms | ||
Output Compressor | Knee, Threshold, Attack, Ratio, Release | ||
Output Limiter | Threshold-90dBu~21dBu, release 1~2895ms | ||
DSP Presets | 30 (one for factory preset) | ||
Control port | USB, RS485, RS232, GPIO | ||
DSP Channel | 4 Inputs & 4 Outputs | ||
