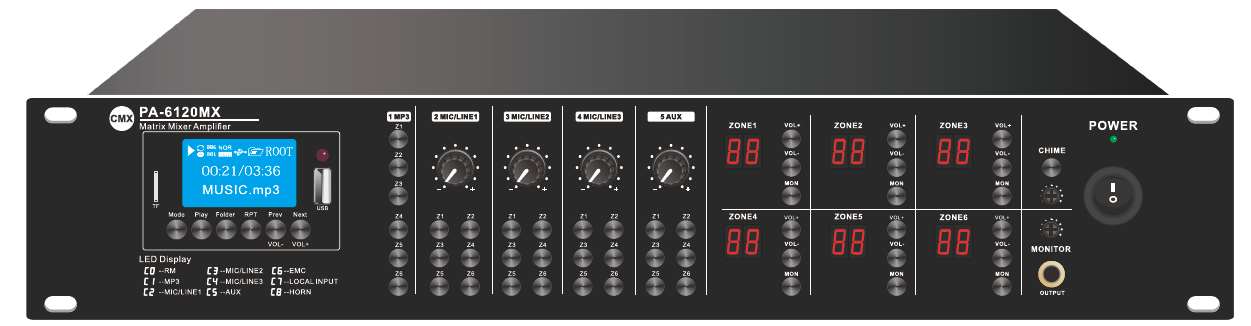

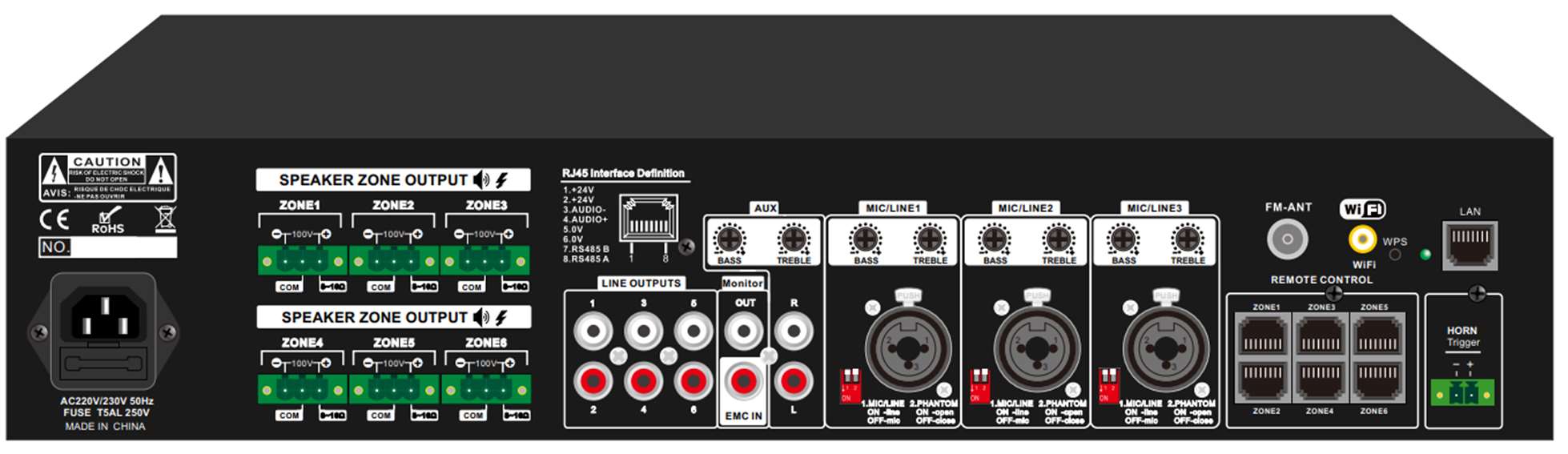

Wi-Fi Internet Streaming 6 Zone Matrix Amplifier with USB/SD/FM/Bluetooth PA-6030MW/PA-6060MW/PA-6120MW
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Wi-Fi Amplifiers Matrix AmplifierWi-Fi Internet Streaming 6 Zone Matrix Amplifier delivering 180W to 720W output with Bluetooth and Wi-Fi streaming capability. Controlled from an Android or iOS smart phone, the Wi-Fi module is compatible with freely available apps to stream music and podcasts directly from a Wi-Fi network. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Wi-Fi Amplifiers Matrix Amplifier
Description:
Wi-Fi Internet Streaming 6 Zone Matrix Amplifier delivering 180W to 720W output with Bluetooth and Wi-Fi streaming capability. Controlled from an Android or iOS smart phone, the Wi-Fi module is compatible with freely available apps to stream music and podcasts directly from a Wi-Fi network. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide. Subscription services can store online playlists which can be cast directly from the internet without requiring the smart phone to be connected to the network. Wireless streaming of tracks and playlists stored on the smart phone can be sent from within the app or directly via Bluetooth to the amplifier. In addition, the Wi-Fi Internet Streaming Amplifier has inputs for USB and TF card for playback of stored tracks. The Wi-Fi Internet Streaming Amplifier provides a versatile 'hands off' background music solution for continuous playback of music from internet services or a choice of other sources for bars, cafes, restaurants, reception areas and house parties. The Wi-Fi Internet Streaming 6 Zone Amplifier support multiple zone or multiple room of different music, while it also supports multiple mobile to remote control over Wi-Fi, so remote volume and music control is easy for both commercial or home audio applications. Wi-Fi 6 zone matrix mixer amplifier built-in 6 units class D power amplifier for 100V or 8-16 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. The 6 zone matrix mixer amplifiers or 6 channel matrix amplifiers is ideal for multiple room multiple audio background music system, up to 6 units remote paging microphone could be connected to this amplifier, so this compact matrix amplifier could be used as one commercial audio solution integrates audio matrix background music system, paging system and voice alarm system. 3 Mic/line switchable inputs, 1 aux input and an integral USB/SD/FM audio player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic1 channel with VOX highest priority and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and Alerts. The 6 zones mixer amplifier is designed for multi-room commercial audio systems requiring different audio sources & multiple paging microphones, additionally, up to 6 remote control panes could be connected to this 6 zones mixer amplifier through CAT6 cable, which could be installed in each 6 rooms to select different audio sources locally and adjust the local loudspeaker loudness and input Bluetooth to its own room
Features:
- Multi-room multiple music systems requiring different audio sources & multiple paging microphones
- 6 zone mixer amplifier built-in USB/SD/FM/Bluetooth audio player
- 6 zone mixer amplifier built-in 6 channel power amplifier & 6 channel audio matrix
- Wi-Fi Internet Streaming 6 zone mixer amplifier with Mp3 player, FM radio & Bluetooth
- Wi-Fi streaming amplifier with wireless smart phone control
- Free Wi-Fi Legacy Player app for Android or iOS
- Support Spotify, DLNA, airplay, internet radio and any online radio stations.
- Support multiple zone or multiple room of different music
- Support multiple mobile to remote control over Wi-Fi
- Support one mobile to remote control multiple Wi-Fi amplifiers
- With LAN port and WPS to reset Wi-Fi address
- Support both 100V or 8-16 Ohms speaker applications
- 6 independent output zones with attenuation
- 3 mic/line inputs, 1 aux input & an integral audio player matrix switched to any of the 6 zones independently
- 3 mic/line switchable input with +48V phantom power balanced COMBO XLR
- Each input with bass/treble includes 3 mic/line & 1 auxiliary input
- Mic1 with VOX highest priority and chime functions
- 24V mute contact to active the built-in pre-recorded Alert/EVAC message
- Monitor headphones output with attenuation
- Up to 6 remote microphones PA-6000RM connection to the amplifier through CAT6 cable
- Up to 6 remote control panels PA-6000SV connection to the amplifier through CAT6 cable
- Remote control panel PA-6000SV select source, adjust volume and input Bluetooth
- With complete protection includes short-circuit, clip, overload and high temp
Specification:
Model | PA-6030MW | PA-6060MW | |
| Description | Wi-Fi Internet Streaming 6 Zone Mixer Amplifier with USB/SD/FM/Bluetooth | ||
| Rated Power Output | 6×30W | 6×60W | 6×120W |
| Speaker Output | 100V and 8-16 Ohms | ||
| Input | Mic/line1-3: 2.5mV, balanced COMBO XLR input with +48V phantom power Line1-2: 250mV; RCA type 24V Mute: 250mV, phoenix connector Remote Mic 6 units by CAT6 cable up to 200 meters, direct powered by amplifier | ||
Remote Panel | 6 units by CAT6 cable up to 200 meters, direct powered by amplifier | ||
| Frequency Response | 80-16KHz | ||
| THD | <0.1% | ||
| S/N Ratio | >70dB | ||
| Protection | High temp, short circuit, clip & overload | ||
| Power Supply | 230V AC, 50-60Hz | ||
| Power Consumption | 200W | 400W | 900W |
| Dimension | 484×405×88mm | ||
| Weight | 6.5Kg | 6.7kg | 6.9kg |

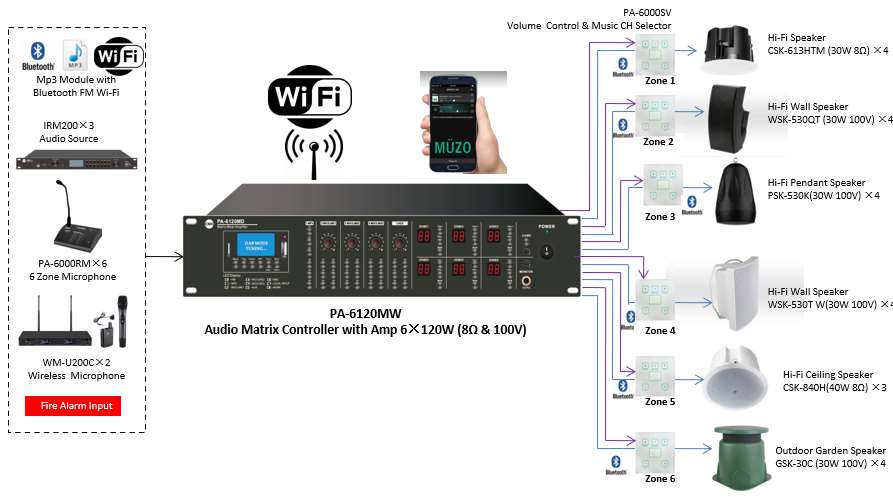

Diagram:

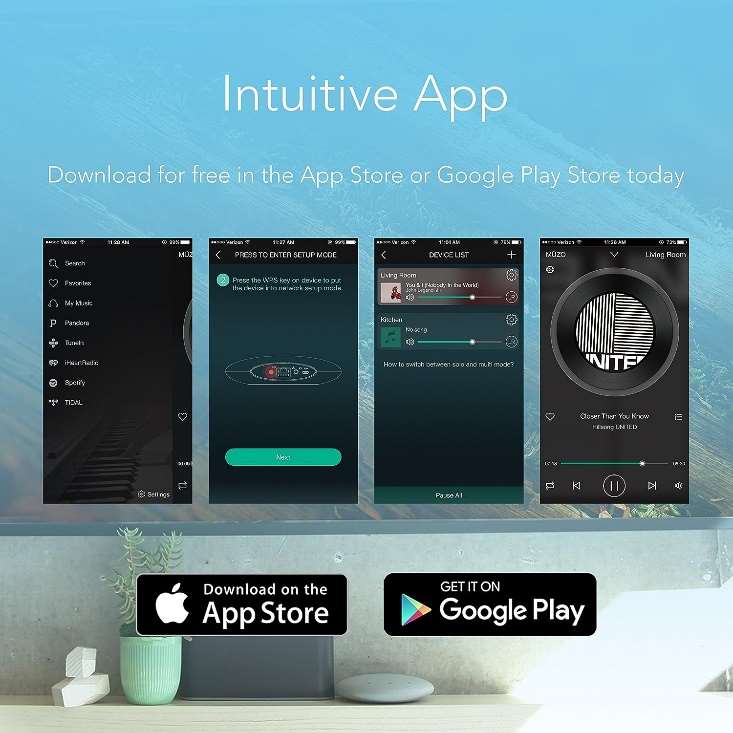

Wi-Fi Music APP Player:
