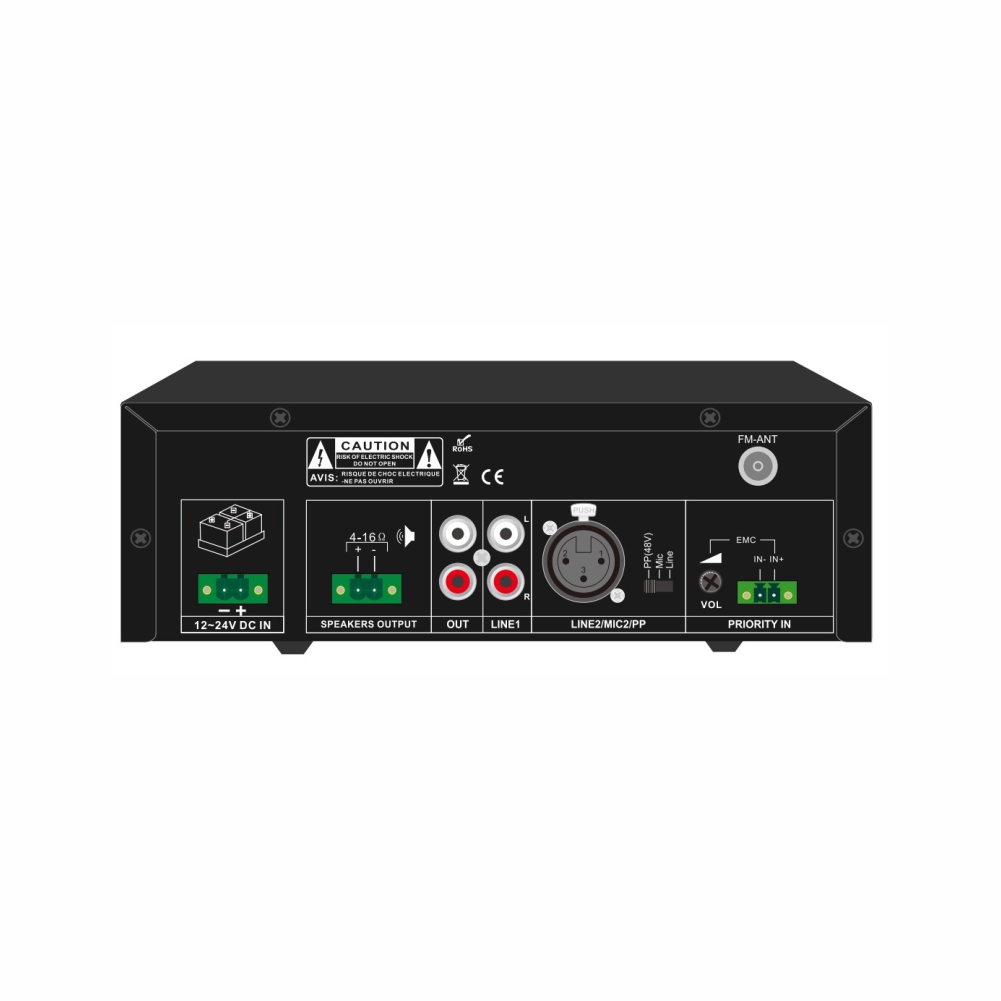

Car Amplifier with USB/SD/FM/Blue tooth CP-60MC
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersThe CP-60MC is a 60 W car amplifier designed for use with a 12 V car battery which is of 60 watts 8 ohms power output to power loading two 30 watts or four 15 watts loudspeakers. It is powered by 12V or 24V car battery, with Mic input,with Mp3, FM and blue tooth for music streaming, with EMC for fire alarm override, the Mic1 with mute over BGM. This car amplifier is ideal for bus, car, Taxi, cruise & vessel etc vehicle sound system.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Description:
The CP-60MC is a 60 W car amplifier designed for use with a 12 V car battery which is of 60 watts 8 ohms power output to power loading two 30 watts or four 15 watts loudspeakers. It is powered by 12V or 24V car battery, with Mic input,with Mp3, FM and blue tooth for music streaming, with EMC for fire alarm override, the Mic1 with mute over BGM. This car amplifier is ideal for bus, car, Taxi, cruise & vessel etc vehicle sound system.
Feature:
- Mini size car or vessel vehicle amplifier
- Tabletop car amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 60W 8 Ohm and speaker output of 4-16 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
- LED indicators for power, clip, protect and signal,Mic1 of 6.3mm Jack input on front panel
- Mic/line2 switchable input balanced XLR with +48V phantom power
- Line1 input of RCA input and one RCA line output
- With EMC input from fire alarm system
- Input priority from high to low: EMC, Mic1 and others inputs
- Volume control for Mic1, line 1, Mic2/line2, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- 12-24V DC car battery power supply system

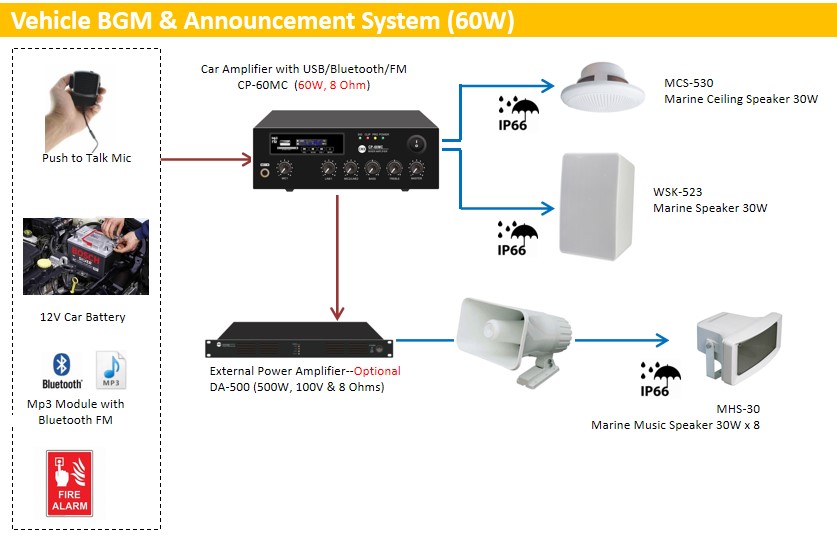

Connection Diagram：
Specification:
| Model | CP-60MC |
| Description | Car Amplifier with USB/SD/FM/Blue tooth |
| Rated Power Output | 60W |
| Speaker Outputs | 4-16 Ohm |
| Connector | Mic1 of 6.3mm Jack on front panel Mic/line2 switchable input balanced XLR with +48V phantom power Line1 input of RCA input and one RCA line output With EMC input from fire alarm system |
| Input | MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA |
| Line Out | 0.775(0dBV) |
| Frequency Response | 60Hz-15kHz(±3dB) |
| S/N Ratio | Line ≥ 85dB, Mic≥ 72dB |
| THD | Less than 0.5% |
| Protection | Short-circuit, clip, overload and high temp protection |
| Power Consumption | 80W |
| Power Supply | 12-24V DC; 50-60Hz |
| Dimension | 220×200×72mm |
| Weight | 2.6kg |
Previous : Wi-Fi Internet Streaming 6 Zone Matrix Amplifier with USB/SD/FM/Bluetooth PA-6030MW/PA-6060MW/PA-6120MW
Next : Mixer Amplifier with USB/SD/FM/Bluetooth DC-60AB/DC-120AB/DC-240AB/DC-350AB/DC-500AB
