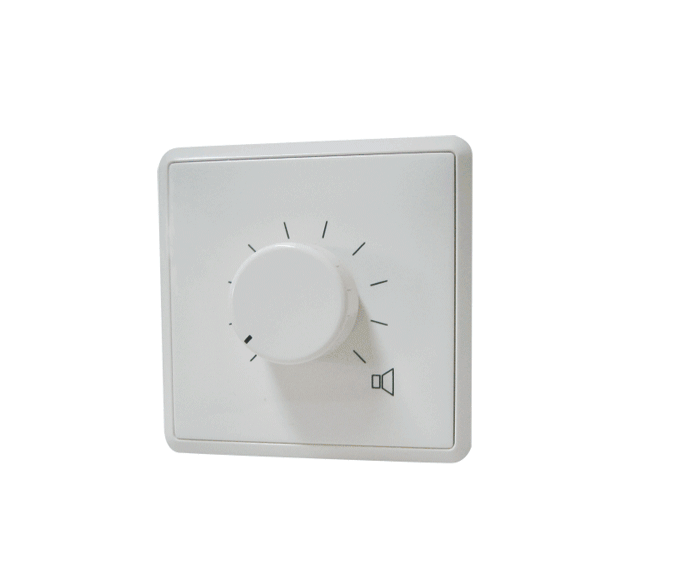

VC-H6 VC-H24 VC-H36 VC-H50 6W-24W-36W-50W 100V Volume Controller with Relay
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller Volume Controller with RelayVC-H6 VC-H24 VC-H36 VC-H50 6W-24W-36W-50W 100V Volume Controller with Relay is volume attenuation for speaker loudness, it will override the music by voice alarm system in case of emergency, wherever public address and background music speaker volume control is needed.
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller Volume Controller with Relay
100V Volume Controller with Relay
VC-H6 (6W)
VC-H24 (24W)
VC-H36 (36W)
VC-H50 (50W)
Features:
- PA (Public address) system use volume control.
- Background music system use attenuator.
- The public address system volume controller is used to adjust the loudspeaker output in the room.
- The PA system volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.
- High level white UV-protected ABS material to integrate together with the white wall and architecture design.
- Built-in transformer to control the PA 100V line loudspeakers.
- With 10 levels of volume attenuator and one position of off.
- Wall plate and front panel are separated fixed together.
- Surface wall mount or in-wall mounting box shall be purchased separated.
Specification:
Model | VC-H6 | VC-H24 | VC-H36 | VC-H50 |
Description | 100V Volume Controller | |||
Rated Output | 6W | 24W | 36W | 50W |
Transformer | No | Yes | Yes | Yes |
Line Input | 100V or 70V | |||
Volume Step | 10 steps | |||
Attenuation Per Step | 3dB | |||
Total Attenuation | 33dB | |||
Material | UV-protected ABS | |||
Finish | White | |||
Mounting Way | Surface mount or in-wall mount | |||

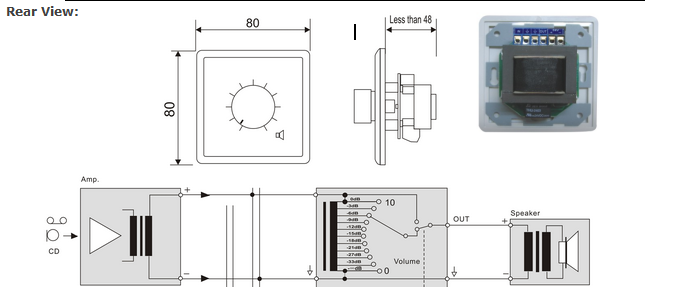

Dimension | 80(W)*80(D)*48(H)mm | |||
