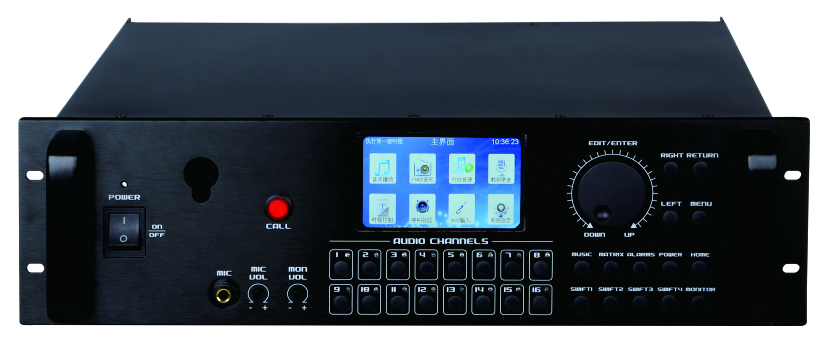

Audio Matrix Instructions PA-3200C
PA SystemThis unit offers an ideal solution for any pa system that requires multi-zone background music,schedule timings,emergency broadcast and audio recording.Suitable for a variety of venues such as shopping malls,industrial sites,commercial buildings and so on.
PA System
Descriptions:
This unit offers an ideal solution for any pa system that requires multi-zone background music,schedule timings,emergency broadcast and audio recording.Suitable for a variety of venues such as shopping malls,industrial sites,commercial buildings and so on.
Features:
- 4 sets of general schedule programs + 6 sets of special schedule programs,each one with up to 256 timing points. The general schedule is cycled per 7 days,and the special schedule is conducted on a specific date to meet the needs of various times and occasions.
- Built-in MP3/FM radio/6 audio sources/32 audio outputs. 4 programmable power supply + 2 extended synchronous power supply (short circuit signal).
- 16 channels of fire signal input (short circuit signal).
- Colorful 4.3-inch TFT display.
- Built-in 2GB memory,supports connecting SD card,supports receiving music downloaded from computer.
- Supports audio formats including MPEG 1/2 Layer 3, WMA, WAV, OGG.
- Supports audio recording from MIC, LINE IN and FM tuner.
- Built-in monitor speaker with volume control.
Model | PA-3200C |
| Memory | Built-in 2G memory |
| Audio Format | MP3、WMA、AAC、WAV、APE、FLAC |
| FM Tuner | FM 88-108MHz |
| Recording | MIC 5mV LINE 500mV |
| Output | LINE 500mV Unbalanced |
| S/N | ≥85dB |
| Distortion | <0.1%(1KHz) |
| Frequency Response | 20Hz-20KHz±3dB |
| Power Supply | AC220V/50Hz(MAX1600W) |
| Net Weight | 5Kg |
| Gross Weight | 6Kg |
| Size | 485×395×95 mm |
