Tabletop Mixer Amplifier with USB/SD/FM/Bluetooth/Echo CP-120M/CP-240M/CP-350M/CP-500M
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersCompact mini size public address amplifier.Tabletop mixer amplifier with Mp3 player, FM radio & bluetooth.Rate power output at 120W, 240W, 350W, 500W.Speaker output of 100V & 4-8 Ohm.Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and bluetooth.LED indicators for power, clip, protect and signal.With mute and EMC input from fire alarm system.Input priority from high to low: MUTE, EMC and others inputs.With Echo features and volume control.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Feature:
- Compact mini size public address amplifier
- Tabletop mixer amplifier with Mp3 player, FM radio & bluetooth
- Rate power output at 120W, 240W, 350W, 500W
- Speaker output of 100V & 4-8 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and bluetooth
- LED indicators for power, clip, protect and signal
- Mic1 of 6.3mm Jack input on front panel
- Mic/line2 switchable input balanced XLR with +48V phantom power
- Line1 input of RCA input and one RCA line output
- With mute and EMC input from fire alarm system
- Input priority from high to low: MUTE, EMC and others inputs
- With Echo features and volume control
- Volume control for Mic1, Echo, line 1, Mic2/line2, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- 110V-230V AC & 24V DC both power supply system
Specification:
Model | CP-120M | CP-240M | CP- 350M | CP-500M |
Description | Mini Mixer Amplifier with USB/SD/FM/Bluetooth/Echo | |||
| Rated Power Output | 120W | 240W | 350W | 500W |
Speaker Outputs | 100V & 4-8 Ohm | |||

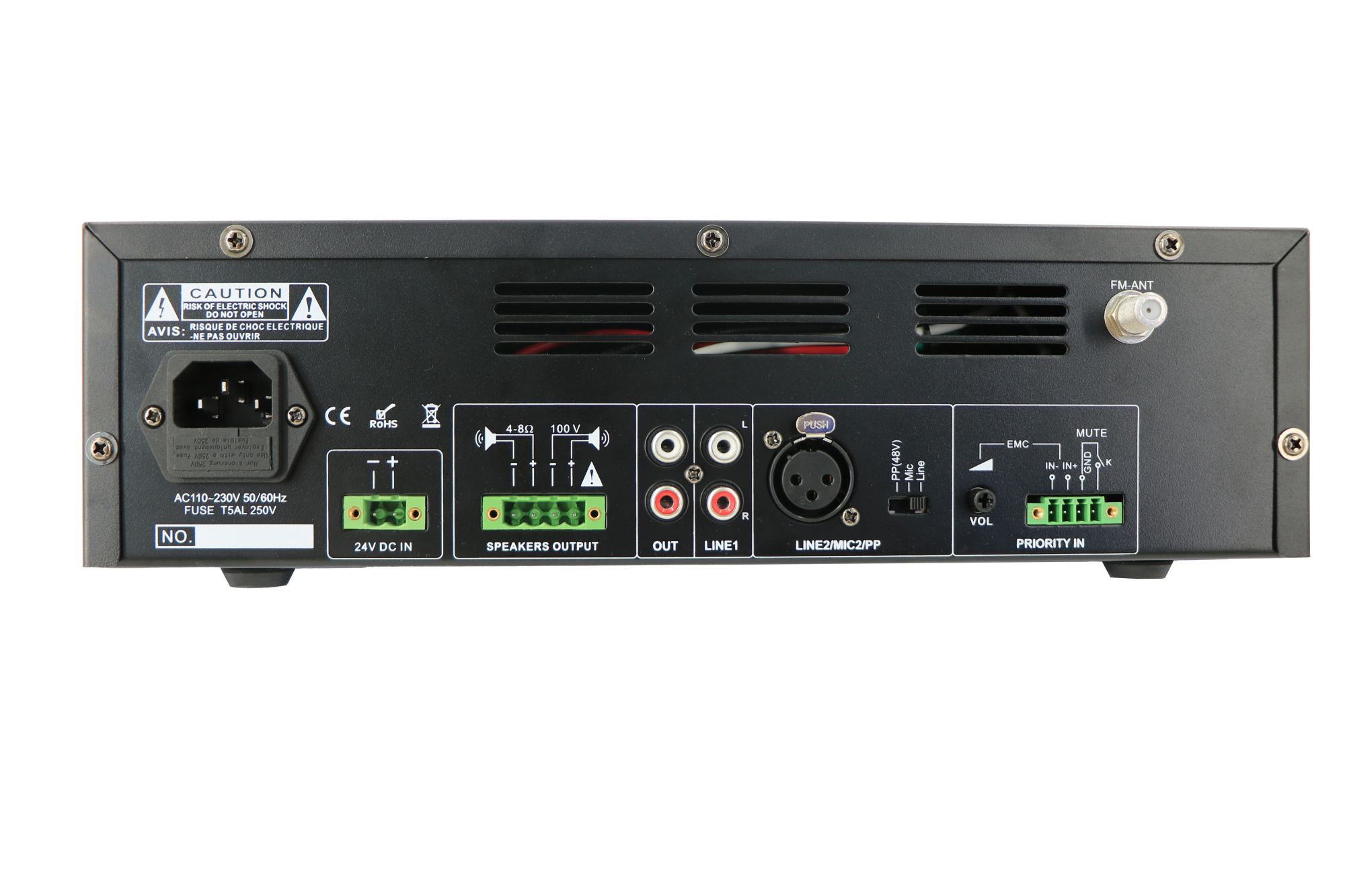

| Connector | Mic1 of 6.3mm Jack on front panel Mic/line2 switchable input balanced XLR with +48V phantom power Line1 input of RCA input and one RCA line output With mute and EMC input from fire alarm system | |||
Input | MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | |||
Line Out | 0.775(0dBV) | |||
| Frequency Response | 60Hz-20kHz(±3dB) | |||
| S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | |||
| THD | Less than 0.5% | |||
| Protection | Short-circuit, clip, overload and high temp protection | |||
| Power Consumption | 200W | 400W | 500W | 650W |
| Power Supply | 110V-230V AC & 24V DC; 50-60Hz | |||
| Dimension | 320×210×90mm | |||
| Weight | 3.4kg | 3.5kg | 3.6kg | 3.7kg |
