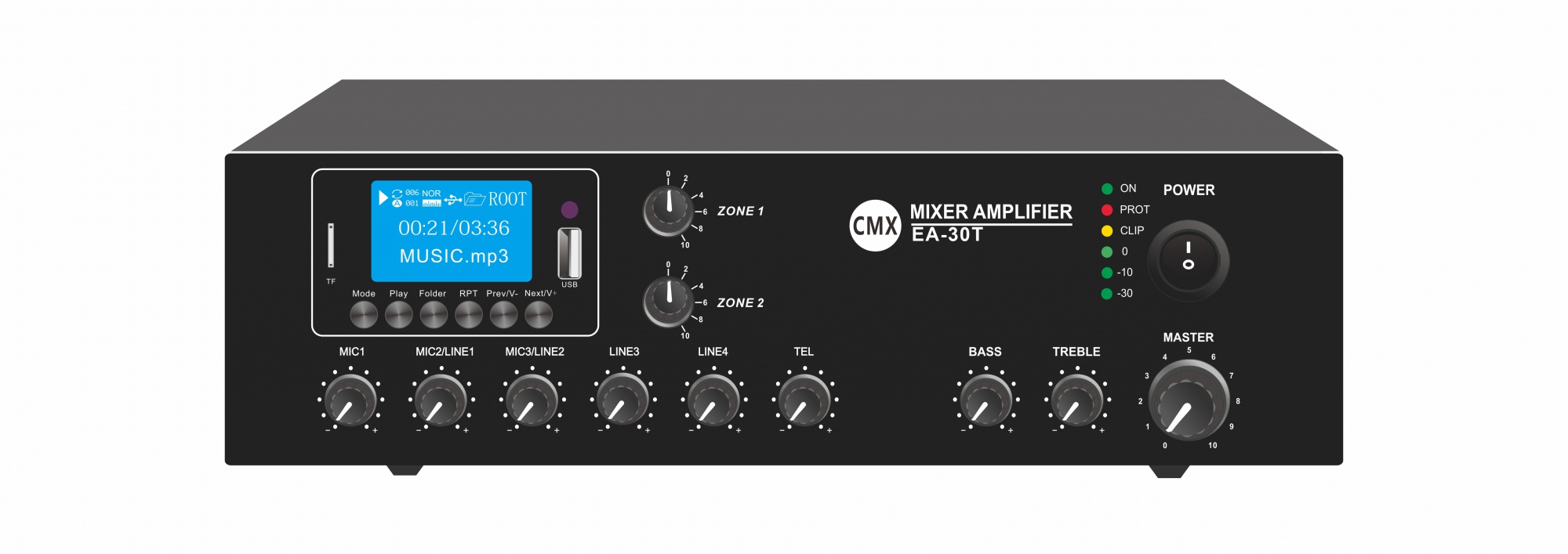

2 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth EA-30T/EA-60T/EA-120T
PA Amplifiers 100V 70V Amplifiers Matrix AmplifierCompact 2 zone public address amplifier.Tabletop 2 zone mixer amplifier with Mp3 player,FM radio & blue tooth.
Rate power output at 30W, 60W to 120W.Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm.2 zone speaker outputs of 100V with separate zone attenuator.Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FMM rad and blue tooth .LED indicators for power, clip, protect and signal.Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOXX pr
PA Amplifiers 100V 70V Amplifiers Matrix Amplifier
Feature:
- Compact 2 zone public address amplifier
- Tabletop 2 zone mixer amplifier with Mp3 player,FM radio & blue tooth
- Rate power output at 30W, 60W to 120W
- Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
- 2 zone speaker outputs of 100V with separate zone attenuator
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FMM rad and blue tooth
- LED indicators for power, clip, protect and signal
- Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOXX priority on/n/off
- Mic/line 2-3 switchable input unbalanced 6.3mm jack
- Line 1-2 input of RCA input and one RCA line output
- Telephone input with secondary priority and MOH (Music on Hold)
- Volume control for Mic1-3, line1-2, TEL, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- 230V AC & 24V DC both power supply system
- Optional to add DAB & DAB+ module
Specification:
Model | EA-30T | EA-60T | EA-120T |
| Description | 2 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth | ||
| Rated Power Output | 30W | 60W | 120W |
Speaker Outputs | 100V or 70V & 4 Ohm-8 Ohm-16 Ohm Two Zone speaker outputs of 100V with separate zone attenuator | ||
| Connector | Mic1 input by balanced XLR with phantom power & VOX highest priority Mic/line switchable input 2-3 unbalanced 6.3mm jack Telephone input with secondary priority and MOH (Music on Hold) Line1-2 inputs by RCA;Line output by RCA | ||
| Input | MIC1-3: 5-8mV,600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | ||
| Line Out | 0.775(0dBV) | ||
| Frequency Response | 60Hz-15kHz(±3dB) | ||
| S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | ||
| THD | Less than 0.5% | ||
| Protection | Short-circuit, clip,overload and high temp protection | ||
| Power Consumption | 60W | 100W | 200W |
| Power Supply | 230V AC & 24V DC;50-60Hz | ||
| Dimension | 320×210×90mm | ||
| Weight | 3.7kg | 4.2kg | 4.8kg |
