Pre-Amplifier with Remote Mic and Wall Plate PA-201MX
Pre-Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersMp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth,Support one remote microphone input and one remote controller input, maximum distance up to 200m,Can be used with remote paging mic PA-201RM and remote volume controller PA-200SV
Pre-Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Features:
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
- Support one remote microphone input and one remote controller input, maximum distance up to 200m
- Can be used with remote paging mic PA-201RM and remote volume controller PA-200SV
- Support up to 6pcs remote paging mic PA-201RM and 1pcs remote volume controller PA-200SV
- 5 balanced Mic phoenix input, Aux 1-3 input and 1 Mute input,
- With chime, Mic 1-5 with 48V phantom power
- Independent volume control of Mic 1-5 and Aux 1-3, bass/treble and master
- Priority Mute>Mic1>Remote paging Mic> others
- 1 output to connect power amplifier, 1 REC out to connect recorder
- 200V to 230V AC and 24V DC both power supply
- 2U Standard cabinet design

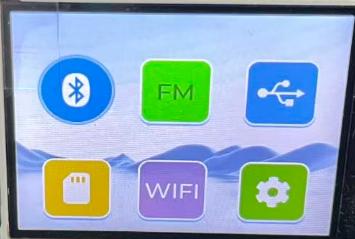

- Colorful MP3 player as an option
Specifications:
| Model | PA-201MX |
| Description | Preamp with Remote Microphone and MP3 Player |
| Mic Input | Mic 1-5: 5mV/600Ω,balanced |
| Aux Input | Aux 1-3: 200mV/10kΩ,unbalanced |
| Remote Paging Mic | PA-201RM, maximum distance up to 200m |
| Remote Controller | PA-200SV, maximum distance up to 200m |
| Output | 600Ω/1V,balanced |
| Frequency Response | 20-20KHz(±1dB) |
| S/N Ratio | >70dB |
| Tone | Bass:±10dB at 100Hz |
| Tone | Treble :±10dB at 100KHz |
| Power supply | AC220-230/50Hz |
| DC in | DC 24V/3A |
| Dimension | 484(W)×264(D)×88(H)mm |

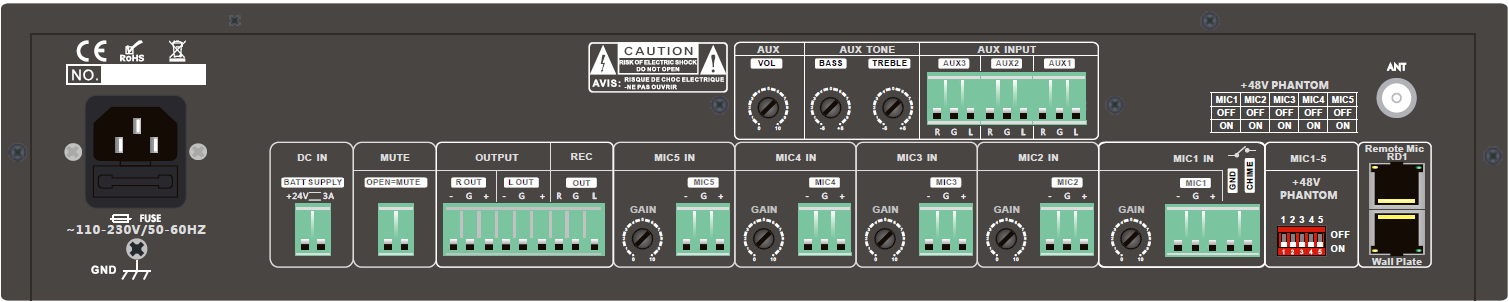

Rear Panel:

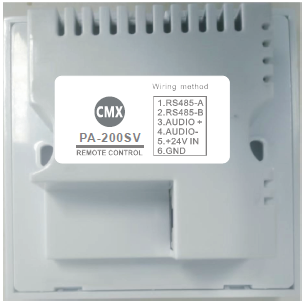

PA-200SV Remote Control Panel
- Communication through CAT6 cable up to 200 m
- Direct power supply from mixer amplifier
- Audio sources selection and volume control
- 1 unit capacity for each mixer amplifier

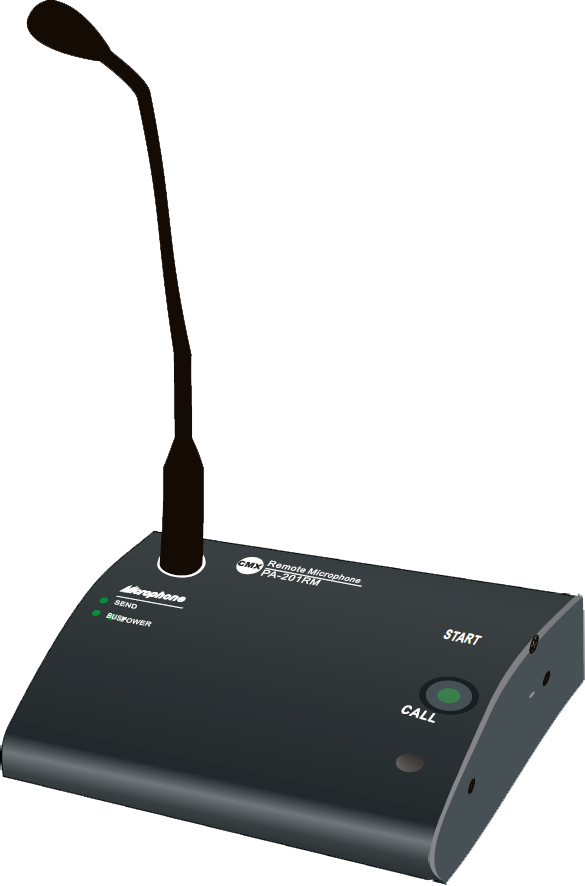

PA-201RM Remote Microphone
- Communication through CAT6 cable up to 200m
- Direct power supply from mixer amplifier
- Single zone paging
- Up to 6 Mics working simultaneously loop connection

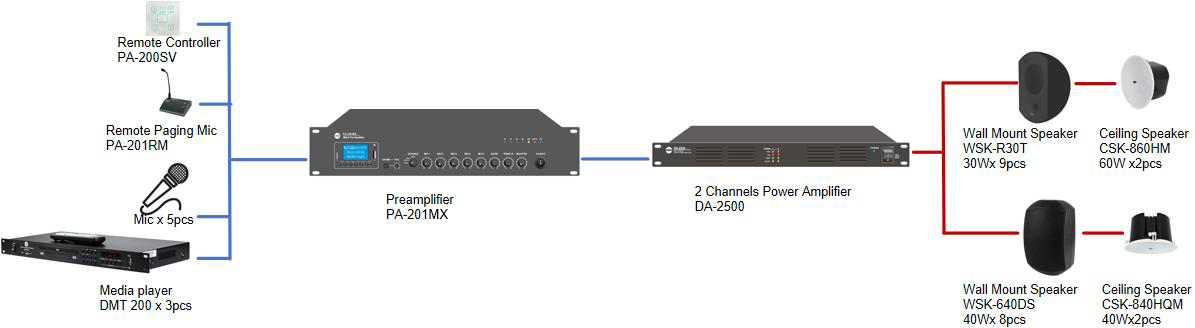

Connection:
Previous : Mixer Amplifier with USB/SD/FM/Blue Tooth DB-60A/DB-120A/DB-240A/DB-350A/DB-500A
Next : 100V Two Channel Power Amplifier With DSP & DANTE DSP-2120/ DSP-2240/ DSP-2350/ DSP-2500
