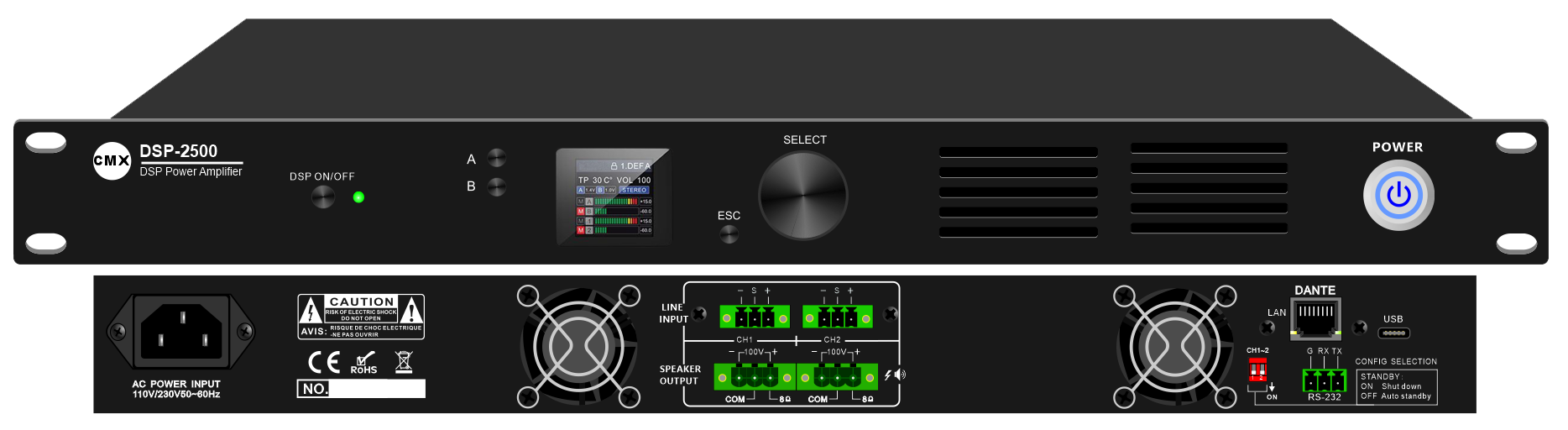

100V Two Channel Power Amplifier With DSP & DANTE DSP-2120/ DSP-2240/ DSP-2350/ DSP-2500

Graphic
Detail

100V Two Channel Power Amplifier With DSP & DANTE DSP-2120/ DSP-2240/ DSP-2350/ DSP-2500

Professional Sound Commercial Audio Pre-Amplifiers 100V 70V Amplifiers

The DSP-2500 is 100V four channel Class-D power amplifiers with DSP & Dante network module for affordable audio amplification in both fixed and commercial audio installations. The DSP power amplifiers are rated power output at 2 x 500W @ 100V & 4 Ohm and 2 x 300W @8 Ohm,which provide an enormous flexibility for different size sound system applications.

Professional Sound Commercial Audio Pre-Amplifiers 100V 70V Amplifiers

Download Annex

Product Detail

Description

The DSP-2500 is 100V four channel Class-D power amplifiers with DSP & Dante network module for affordable audio amplification in both fixed and commercial audio installations. The DSP power amplifiers are rated power output at 2 x 500W @ 100V & 4 Ohm and 2 x 300W @8 Ohm,which provide an enormous flexibility for different size sound system applications. The DSP processor in combination with remote management software gives user friendly experience with intuitive functions overview for easy configuration. Acoustics can be optimized using noise gate,matrix mixer, PEQ, crossover, delay, compressor, Butterworth, Bessel, Linkwitz6~24. These settings can be custom configured using the English remote software by mini USB port on front panel. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured.Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded to the amplifier. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. The amplifier built-in 2 Input 2 Outputs DSP and 2 Input 2 Outputs Dante network card, which can ensure each input and output could be managed respectively, one RJ45 port is used for & Dante and one type C style USB on rear panel for DSP configure. There are two balanced line inputs by phoenix terminal and two 100V,4 Ohm / 8 Ohm speaker output. The amplifiers support 100V & 4 Ohm / 8 Ohm both commercial audio & professional audio applications, where an output selector could enable this function for dedicated sound system. The installation of this Dante network amplifier with DSP allows receiving and sending of low latency, high quality audio over a standard Ethernet network.

Feature:

2 x 500W Class-D power amplifier at 100V (DSP-4500)
Support 100V & 8 Ohm, 4 Ohm speaker output
Built-in DSP with EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter
31 bands of input PEQ and 10 bands of output PEQ
30 pre sets of DSP (Digital Signal Processor)
2 Input 2 Outputs Dante network module and 2 In 2 Out matrix DSP module
One Ethernet RJ-45 network connector for Dante configure
One type C style USB port on front panel for DSP configure
0dBu/6dBu sensitivity adjustment for each input
1U height 19” rack mount type power amplifier
Balanced line input by phoenix terminal for two channels
Complete short circuit, overload, high temp, clip and DC protection

Specification:

Model	DSP-2120	DSP-2240	DSP-2350	DSP-2500
Description	100V Two Channel Power Amplifier with DSP & Dante
Rated Power Output 8 Ohm	2 x 120W	2 x 240W	2 x 300W	2 x 300W
Rated Power Output 4 Ohm	2 x 120W	2 x 240W	2 x 350W	2 x 500W
Rated Power Output 100V	2 x 120W	2 x 240W	2 x 350W	2 x 500W
Speaker Output	4Ω, 8Ω & 100V, mono, free matrix, stereo, bridge
DSP	EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter, Butterworth, Bessel, Linkwitz6~24 Mini USB for configure, monitoring & control via fully manageable remote PC software
Frequency Response	20Hz-20KHz (+1/-2dB)
Input	0.775mv±5%, balanced phoenix terminal by four channels
THD	<1%@1W to full power
S/N Ratio	92dB
Crosstalk	<-70dB
Gain Control	6dBu: 30dB（29.5 times）, 0dBu: 36dB（31.1 times）
Protection	DSP limiter, High temperature, DC, high frequency, short circuit, back EMF, peak current limiter, Back EMF, Surge current limiter, startup delay, power circuit breaker protection, power overvoltage , under voltage protection
Display	320x240 pixel, IPS LCD colorful English Display
Power Consumption	350W	700W	1000W	1500W
Power Supply	AC input switchable between 110~230V, 50-60Hz
Dimension	482x370x45 mm
Weight	5.8Kg
DSP (2 IN 2 OUT)Specifications
Input PEQ	31 PEQS
Output PEQ	10 PEQS
Crossover	Butterworth, Bessel, Linkwitz6~24
Output Delay	Input Delay: 2 x 80ms / Output Delay: 4 x 20ms
Output Compressor	Knee, Threshold, Attack, Ratio, Release
Output Limiter	Threshold-90dBu~21dBu, release 1~2895ms
DSP Presets	30 (one for factory preset)
Control port	USB, RS232
DSP Channel	2 Inputs & 2 Outputs
Dante Module	2 Inputs & 2 Outputs
