IP Network Intercom Slave Station DI-9712 IP Intercom System

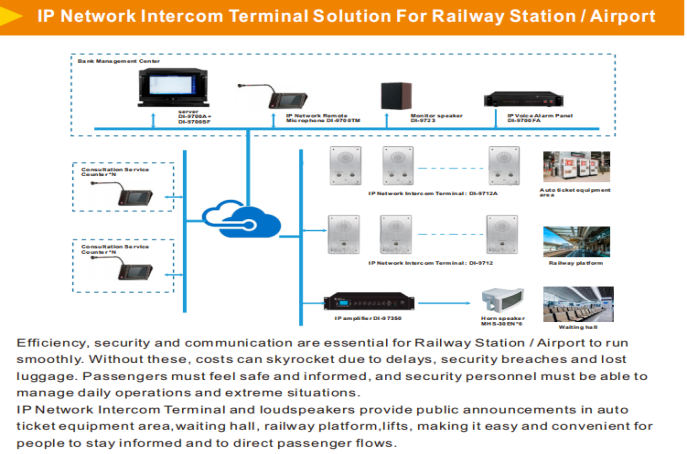

IP Intercom system IP Emergency Communication System Two Way Intercom System Duplex2-Way Intercom SolutionsDI-9712 is one IP intercom system which could two way full duplex emergency communicate with intercom master station DI-9700TM, busy forward, many master station reception, intercom communication recording, POE power sypply and waterproof outdoor instation, trigger integration with fire alarm, door access, CCTV and door acess system, ideal for parking, school, bank, prison, hospital and train station emergency communication system.
IP Intercom system IP Emergency Communication System Two Way Intercom System Duplex2-Way Intercom Solutions
Feature:
- Brushed aluminum design,Embedded installation.
- Single button two way duplex intercom slave station
- Intercom panel built-in speaker, microphone.
- Full duplex two way communication system.
- Embed PC technology, built-in DSP & high speed industrial chip to ensure start time less than 1 second
- One short circuit output can be used for electronic access control or alarm indicator.
- One short circuit input can be used to play warning voice or trigger associated devices.
- Equipped with one local line output, capable of external active speakers or headphones for communication
- and receiving broadcasts.
- Equipped with one local line input, capable of external audio source equipment.
- Can achieve intercom and environmental sound monitoring with equipped IP microphone.
- Can be accessed from Ethernet ports and has cross network segment and cross routing functions.
- This device can support remote upgrades of both LAN/WAN networks.
- Aluminum finish can be durable use and waterproof rate level of IP54
- 1×RJ45 Ethernet Port,12V DC power supply,POE power supply (optional)
- Ideal solution for prison, hospital, hotel, military, factory, train station and airport.
Description:
The IP Network Intercom Slave Station or door station DI-9712 is designed for two way duplex emergency communication system. Press the button to start the two way intercom call to the master station DI-9700TM, while recording, busy forward, sound pick up and pre-recorded announcement is also possible for this system. Control input and output is used to integrate with door access, CCTV or fire alarm system. Ideal for bank, factory, school, park, hospital and train station emergency help communication system.
Specification:
Model | DI-9712 |
Network interface | RJ45 |
Transmission Rate | 10M/100Mbps |
Audio Format | MP3/MP2 |
Sampling Rate | 8K～48KHz |
Audio Mode | 16 digit stereo CD tone |
SNR | ≥75dB |
Frequency response | 200Hz—16KHz+-3dB |
Input Sensitivity | 10mv/250mv |
Protocol | TCP/IP,UPP,IGMP, support group broadcasting |
Harmonic Distortion | ≤0.3% |
Built in speaker | 5W,8Ω |
Line in | 350MV、1KΩ |
Line out | 775MV、1KΩ |
Control in | One short-circuit input |
Control out | One short-circuit output |
Operating Temperature | 5℃ ~ +45℃ |
Operating Humidity | 10% ~ 90% |
Power Supply | DC-12V |
IP rate | IP54 |
Dimension | 194.4×117×39.5mm |
Power Consumption | ≤8W |
