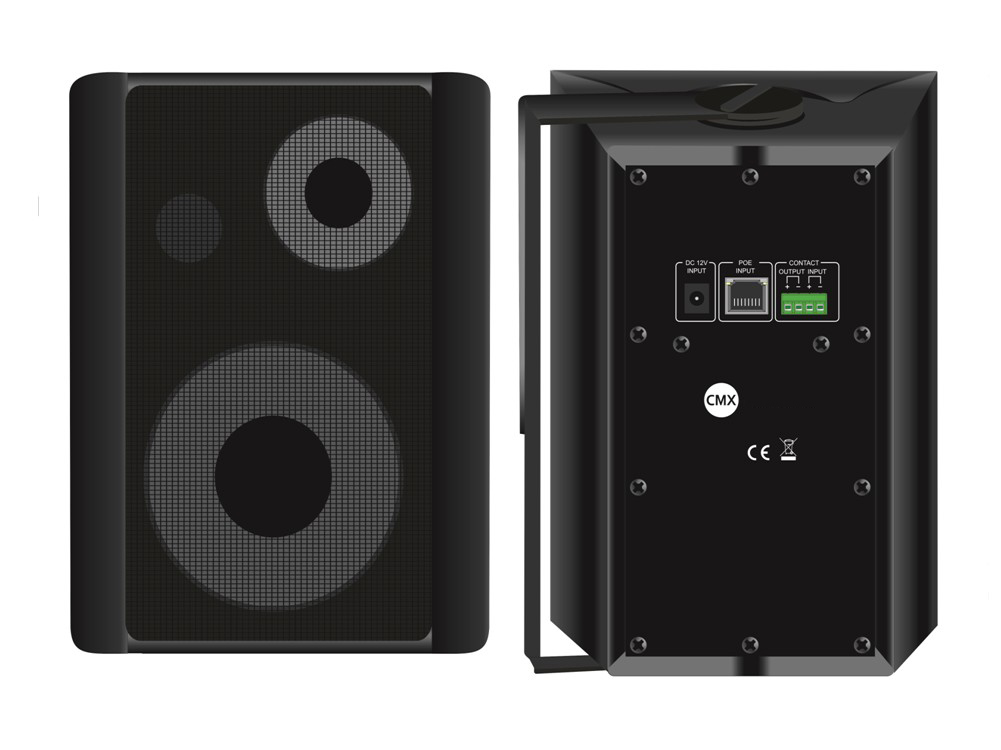

DI-97601 IP POE Wall Mount Speaker

IP Speaker IP Audio Solutions

DI-97601 is one IP based POE wall mount speaker, built-in ip decoder, POE power supply amplifier and indoor ceiling speaker all in one solution. Through the IP software for general speech, live speech, emergency speech, music broadcast, voice alarm and scheduled program to be operated to the IP POE loudspeakers.

IP Speaker IP Audio Solutions

IP POE Wall Mount Speaker

DI-97601


Description:

The IP POE Powered Wall Mount Speaker is the latest in IP technology. This Power over Ethernet (Compatible with IEEE 802.3at) POE loudspeaker featured of network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The POE loudspeaker is capable of broadcasting audio through multicast. The POE powered wall mount speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply. The POE powered loudspeaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External 12V DC connector is also equipped in this POE speaker for standby power supply use. The POE loudspeaker is designed with 5” two way wall mount speaker with 30W class-D amplifier. The remote paging microphone DI-9700TM enables to make announcement over individual speaker, group speakers over network.


Features:

  • POE (Power over Ethernet) supportable all in one network audio system
  • POE IP PA system with background music, paging system and voice alarm system
  • Minimum cable connection over existing LAN/WAN/Internet system
  • Huge system capacity up to 1,200 zones
  • Support with existing POE switch network system
  • Compatible with IEEE 802.3at
  • IP based POE powered 30W 5” two way wall mount speaker
  • Built-in IP audio decoder, 30W class-D amplifier and speaker
  • Single network cable for control, signal and power supply
  • Same POE speakers enable to be several group or zone defined
  • Different music or voice message simultaneously broadcasted through different POE speakers
  • Paging prioritization and background music system
  • Network adjustable speaker volume
  • 12V DC power supply input as standby use


Specifications:

Model

DI-97601

Description

IP POE Wall Mount Speaker

Power Output

30 Watts (1KHz@-3dB)

Built-in Amplifier

30W Watts 4 Ohm

Speaker Unit

5” woofer+1.5” tweeter

Network I/F

10/100Mbps

Protocol

ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast)

Audio Format

MP3/MP2

Audio Quality

16digit stereo CD level

Sampling Rate

8K~48K

Bit Rate

8K~512Kbps

Sensitivity

92dB/1W/1M

S/N Ratio

≧85dB

THD

≦0.1%

Frequency Response

100-18KHz(±3dB)

Connector

One RJ45 port, One DC12V battery backup input

Power Input

POE 802.3at & DC 12V

Operation Temp

-30℃ to +55℃

Dimension

257×185×170mm

Bracket

U-Shaped wall mount bracket

Material

ABS cabinet and steel grille in black

Weight

2.5kg




DI-97601 IP POE Wall Mount Speaker
DI-97601 is one IP based POE wall mount speaker, built-in ip decoder, POE power supply amplifier and indoor ceiling speaker all in one solution. Through the IP software for general speech, live speech, emergency speech, music broadcast, voice alarm and scheduled program to be operated to the IP POE loudspeakers.
