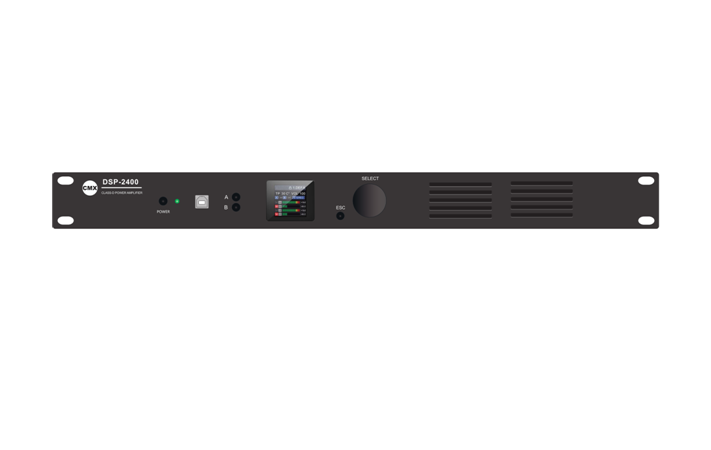

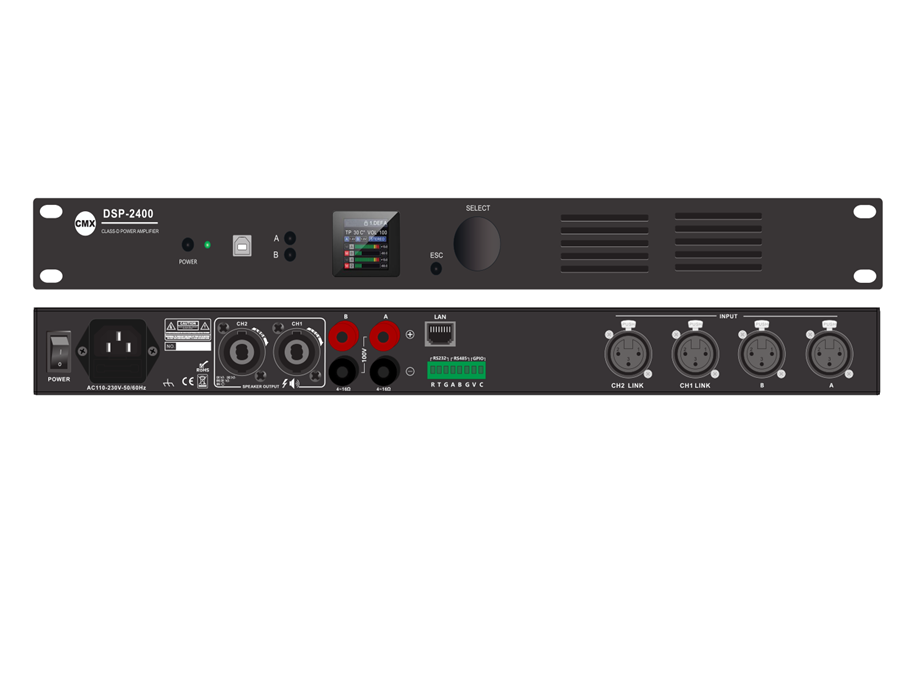

DSP-2400 DSP-2300 DSP-2200 Stereo Power Amplifier with DSP & Dante
Professional Sound Power Amplifier Dante Amplifier DSP AmplifiersDSP-2400 Stereo Power Amplifier with DSP & Dante is one two channel low impedance amplifier built-in DSP processor and Dante Network audio, ideal for IP network multiple audio streaming professional sound system, 2 channel professional audio power amplifier, 2 channel Dante input output, 2 IN 2 OUT DSP processor, support 100V & 8 Ohm speaker connection.
Professional Sound Power Amplifier Dante Amplifier DSP Amplifiers
Description
The DSP-2400 is two channel Class-D power amplifiers with DSP & Dante network module for affordable audio amplification in both fixed and commercial audio installations. The DSP power amplifiers are rated power output at 2 x 400W @ 8 Ohm which provide an enormous flexibility for different size sound system applications. The DSP processor in combination with remote management software gives user friendly experience with intuitive functions overview for easy configuration. Acoustics can be optimized using noise gate, matrix mixer, PEQ, crossover, delay, compressor, Butterworth, Bessel, Linkwitz6~24. These settings can be custom configured using the English remote software by mini USB port on front panel. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded to the amplifier. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. The amplifier built-in 2 Input 2 Outputs DSP and Dante network card, which can ensure each input and output could be managed respectively, one RJ45 port is used for & Dante and one mini USB on front panel for DSP configure. There are two balanced line inputs by XLR. The amplifiers support 100V & 8 Ohm both commercial audio & professional audio applications, where an output selector could enable this function for dedicated sound system. The installation of this Dante network amplifier with DSP allows receiving and sending of low latency, high quality audio over a standard Ethernet network.
Feature:
2 x 400W Class-D stereo power amplifier at 8 Ohms (DSP-2400)
Support 100V, 70V & 8 Ohm, 4 Ohm and Bridge modes
Built-in DSP with EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter
31 bands of input PEQ and 10 bands of output PEQ
30 pre sets of DSP (Digital Signal Processor)
Dante network module and DSP module both with 2 In 2 Out matrix
One Ethernet RJ-45 network connector for Dante configure
One mini USB port on front panel for DSP configure
0dBu/6dBu sensitivity adjustment for each input
Remote GPIO for failure outputs shall be customized and unavailable now
1U height 19” rack mount type power amplifier
Balanced line input by XLR for two channels
Complete short circuit, overload, high temp, clip and DC protection
Specification:
Model | DSP-2400 | DSP-2300 | DSP-2200 |
Description | Stereo Power Amplifier with DSP & Dante | ||
Rated Power Output 8 Ohm | 2 x 400W | 2 x 300W | 2 x 200W |
Rated Power Output 4 Ohm | 2 x 800W | 2 x 600W | 2 x 400W |
Rated Power Output 100V | 400W | 300W | 200W |
Bridge Output 8 Ohm | 1000W | 800W | 600W |
Speaker Output | 4Ω, 8Ω & 100V, 70V, mono, free matrix, stereo, bridge | ||
DSP | EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter, Butterworth, Bessel, Linkwitz6~24 Mini USB for configure, monitoring & control via fully manageable remote PC software | ||
Frequency Response | L/H Cut OFF 20Hz-20KHz (+1/-2dB) | ||
Input | 6dBu, Max. 16dBu (4.9V), balanced XLR by two channels | ||
THD | <0.1% (1KHz/-3dBv, 300W) | ||
S/N Ratio | 6dBu: 94dB, 0dBu: 94dB | ||
Crosstalk | <-70dB | ||
Gain Control | 6dBu: 30dB（29.5 times）, 0dBu: 36dB（31.1 times） | ||
Protection | DSP limiter, High temperature, DC, high frequency, short circuit, back EMF, peak current limiter, Back EMF, Surge current limiter, startup delay, power circuit breaker protection, power overvoltage , under voltage protection | ||
Display | 240x240 pixel, IPS LCD colorful English Display | ||
Power Consumption | 1000W | 800W | 500W |
Power Supply | AC input switchable between 180~260V, 50-60Hz | ||
Dimension | 484x300x44 mm | ||
Weight | 3.4Kg | ||
DSP (2 IN 2 OUT)Specifications | |||
Input PEQ | 31 PEQS | ||
Output PEQ | 10 PEQS | ||
Crossover | Butterworth, Bessel, Linkwitz6~24 | ||
Output Delay | Input Delay: 2 x 80ms / Output Delay: 4 x 20ms | ||
Output Compressor | Knee, Threshold, Attack, Ratio, Release | ||
Output Limiter | Threshold-90dBu~21dBu, release 1~2895ms | ||
DSP Presets | 30 (one for factory preset) | ||
Control port | USB, RS485, RS232, GPIO (shall be customized and unavailable now) | ||
DSP Channel | 2 Inputs & 2 Outputs | ||
Dante Module | 2 Inputs & 2 Outputs | ||
