Ceiling Subwoofer SUB-860D 100V & 8 Ohm

SUB-860D is 8 inch ceiling subwoofer for extra bass and heavy low frequency applications. 60 watts RMS AND 120W Max with power taps support 100V, 70V and 8 Ohms, low frequency down to 40Hz, ideal for auditorium and conferencing center sound system.

Feature:

  • Ceiling subwoofer for extra low frequency & heavy bass
  • With transformer support 70v/100v or 8 Ohm
  • 60W RMS and Max 120W power output
  • 60W-30W-15W-7.5W& 8 Ohm power taps on front
  • 8" glass fiber low frequency transducer
  • With breathing whole for strengthened performance
  • ABS enclosure and metal fire dome
  • In-ceiling quick installation by dog ears
  • Extra bass supplement for in-ceiling sound system


Description:

The ceiling subwoofer is especially designed for extra low frequency or heavy bass applications, built-in low loss matching transformer allows for either 70v/100v or 8 Ohm operation. Its rated power of60W of RMS power and Max output of 120W. The multiple tapings of 60W-30W-15W-7.5W & 8 Ohm for different room size applications. Low frequency down to 40Hz, which is truly designed for super heavy bass applications.


Specification:

Model

SUB-860D

Description

8” Ceiling Subwoofer

Power Taps

60W-30W-15W-7.5W & 8 Ohm

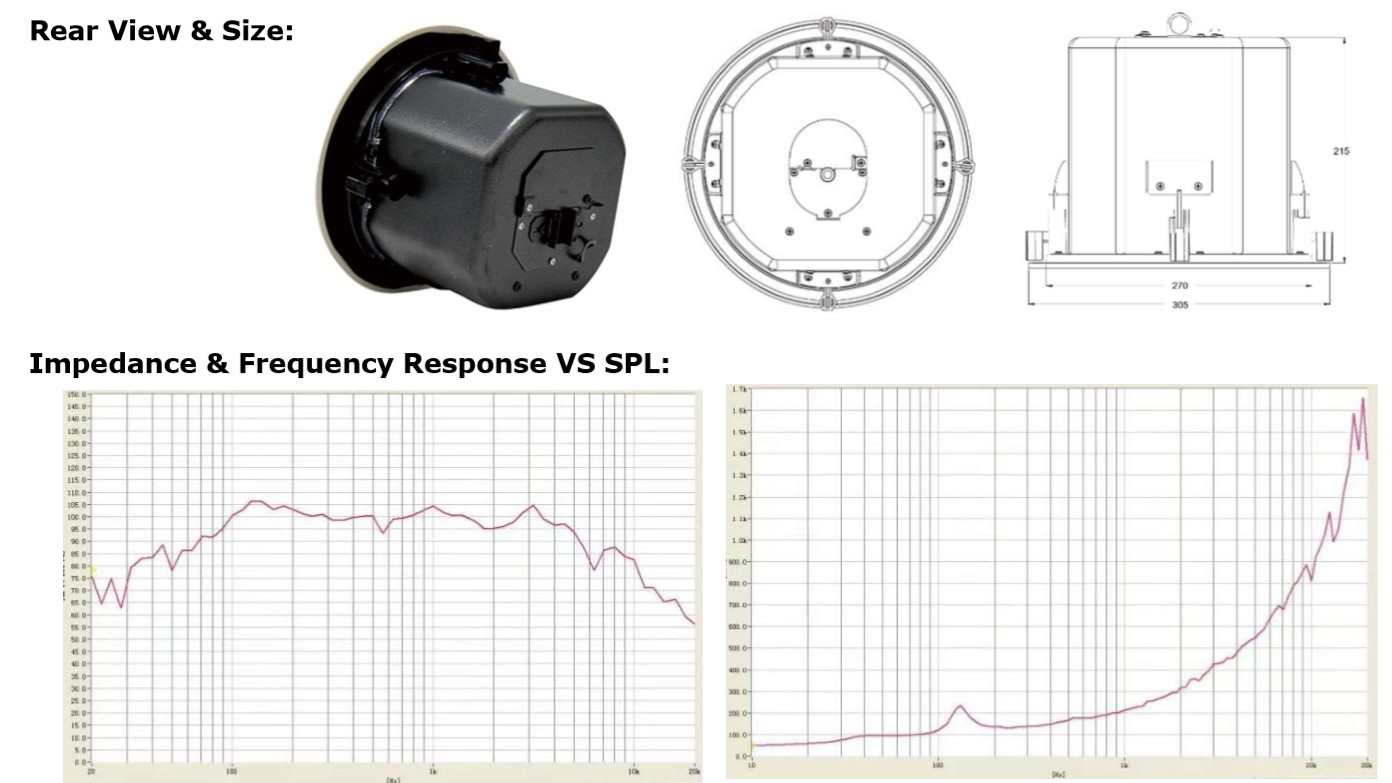

Frequency Response

40-108Hz

SPL(@1W/m)

89±3dB

Speaker Unit

8” glass fiber low frequency transducer

Cutout Size

Ø270mm

Dimension

Ø305×215mm

Material

ABS enclosure and metal fire dome

Weight

4.8kg



Ceiling Subwoofer SUB-860D 100V & 8 Ohm
SUB-860D is 8 inch ceiling subwoofer for extra bass and heavy low frequency applications. 60 watts RMS AND 120W Max with power taps support 100V, 70V and 8 Ohms, low frequency down to 40Hz, ideal for auditorium and conferencing center sound system.
