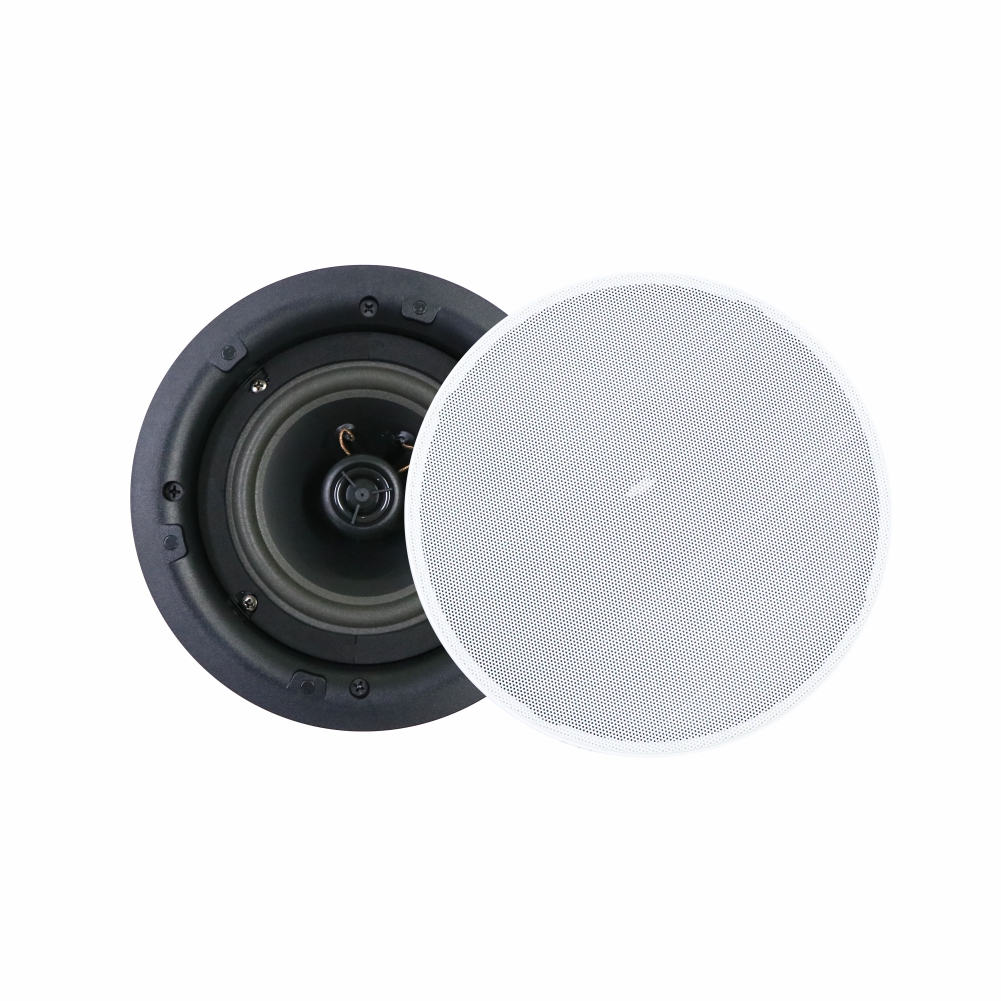

CSK-814HT 8” 2-Way Ceiling Speaker
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerCSK-814HT 8” 2-Way Ceiling Speaker，Power taps of 40W-20W-10W,8” bass speaker with 1” tweeter,Exclusive grill design allows true frameless speakers
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer
- hi-flex polypropylene cone main driver for extended low frequency response
- 8” bass speaker with 1” tweeter
- Power taps of 40W-20W-10W
- Magnetic frameless grille& ABS baffle
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-814HTM (100V & 8 O h Ohm, with ABS back can); CSK-814HR ( 8 Ohm, w with crossover)
Specifications:
| Model | CSK-814HT |
| Description | 8” 2-Way Ceiling Speaker |
| Power RMS | 40W |
| Power Taps 100V | 40W-20W-10W |
| Sensitivity 1W/1m | 91dB |
| MAX SPL | 105dB |
| Frequency Response | 80-20KHz |
| Finish | Baffle: ABS, black; Grille: magnetic steel, white |
| Speaker Driver | 8' bass +1' tweeter two way system |
| Cutout Size | Ø250mm |
| Dimensions | Ø280×115mm |
| Weight | 2.1Kg |
Side & Rear View:

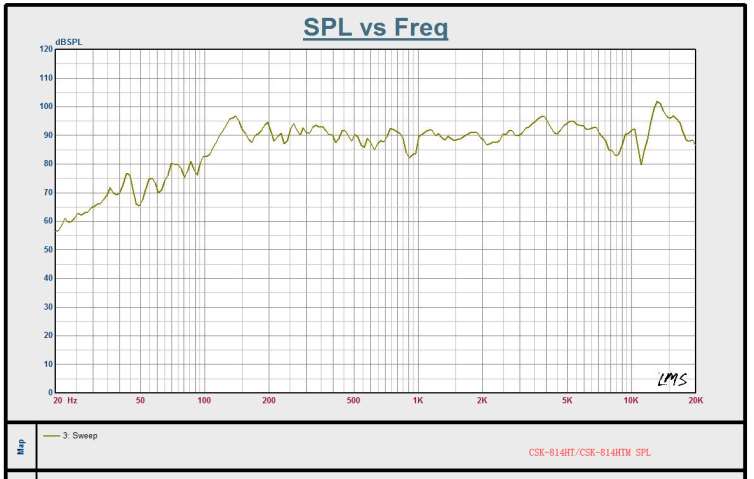

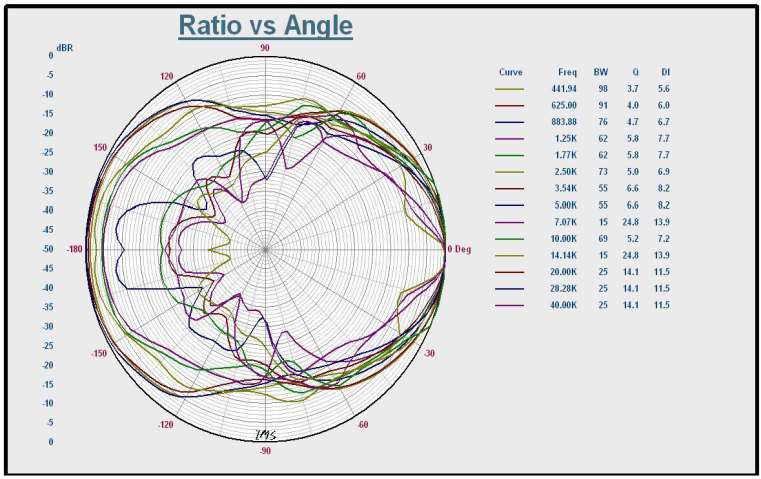

Polar Diagram & Frequency Response:
