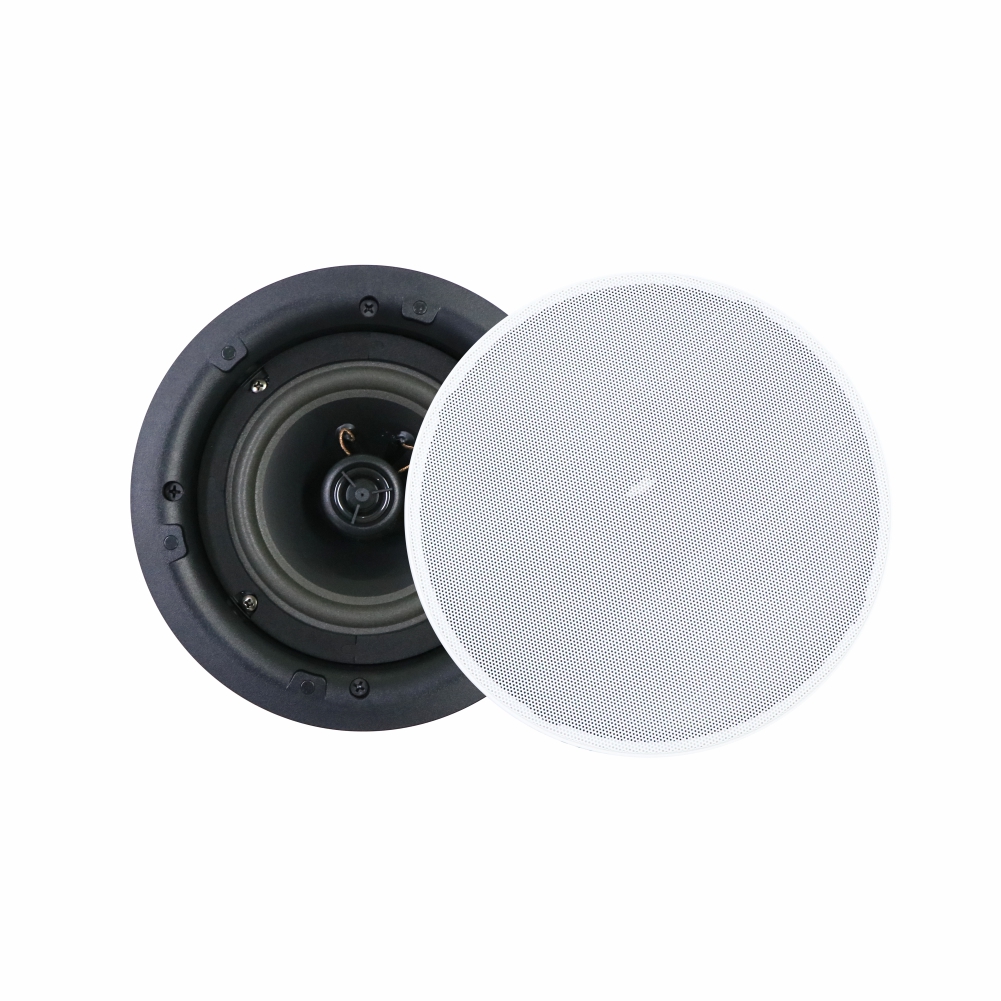

CSK-613HT 6.5” 2-Way Ceiling Speaker
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerCSK-613HT 6.5” 2-Way Ceiling Speaker，Power taps of 30W-15W-7.5W,6.5” bass speaker with 1” tweeter,Exclusive grill design allows true frameless speakers
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
High grade slim line 2-way ceiling speaker
100V line ceiling speaker with transformer
hi-flex polypropylene cone main driver for extended low frequency response
6.5” bass speaker with 1” tweeter
Power taps of 30W-15W-7.5W
Magnetic frameless grille& ABS baffle
Flush mount easy and secure installation
Exclusive grill design allows true frameless speakers
Options: CSK-613HTM (100V & 8 O h Ohm, with ABS back can); CSK-613HR ( 8 Ohm, w with crossover)
Specifications:
Model | CSK-613HT |
| Description | 6.5” 2-Way Ceiling Speaker |
| Power RMS 100V | 30W |
| Power Taps 100V | 30W-15W-7.5W |
| Sensitivity 1W/1m | 90dB |
| MAX SPL | 103dB |
| Frequency Response | 80-20KHz |
| Finish | Baffle: ABS, black; Grille: magnetic steel, white |
| Speaker Driver | 6.5' bass +1' tweeter two way system |
| Cutout Size | Ø205mm |
| Dimensions | Ø235×110mm |
| Weight | 1.7Kg |

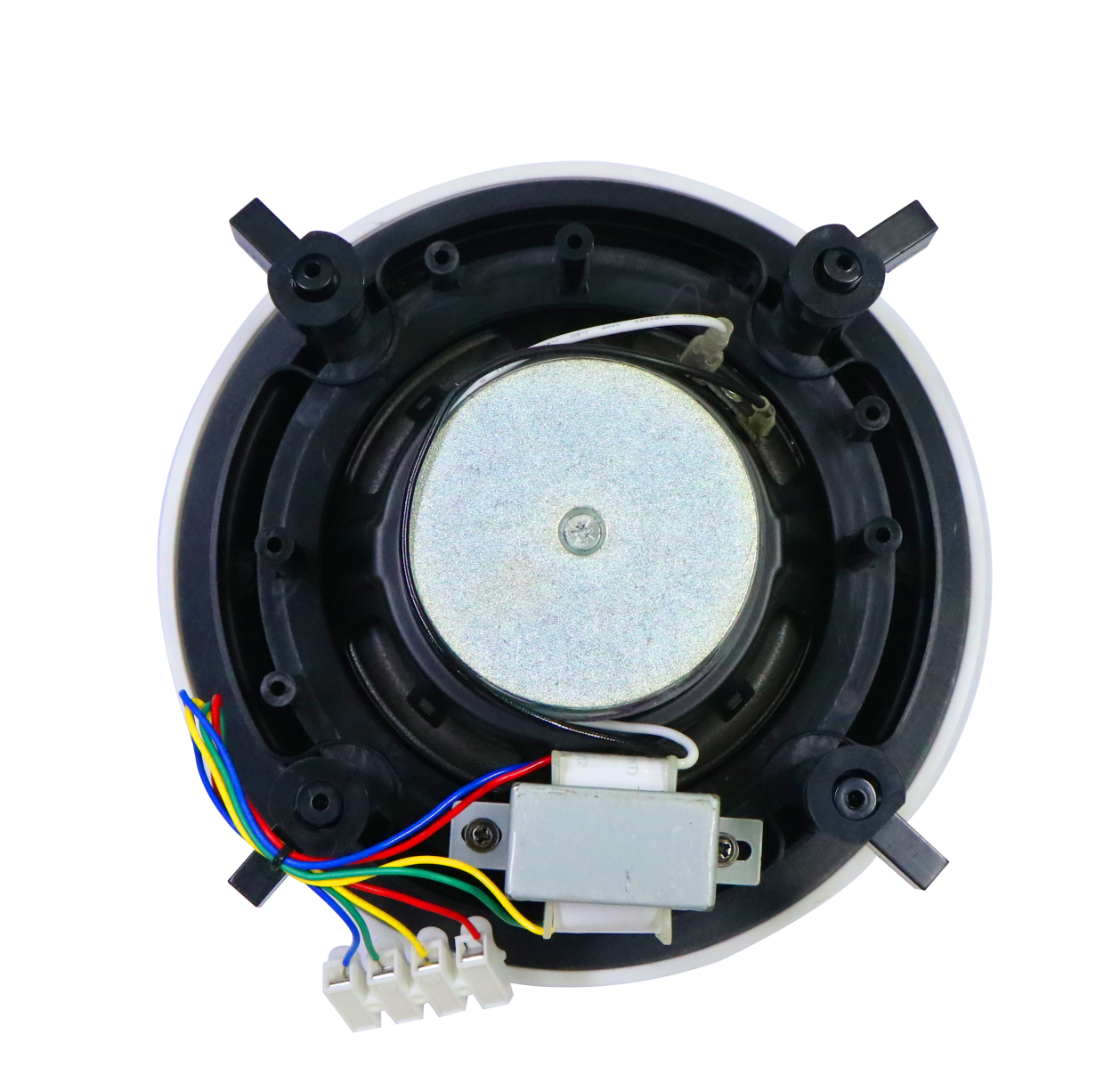

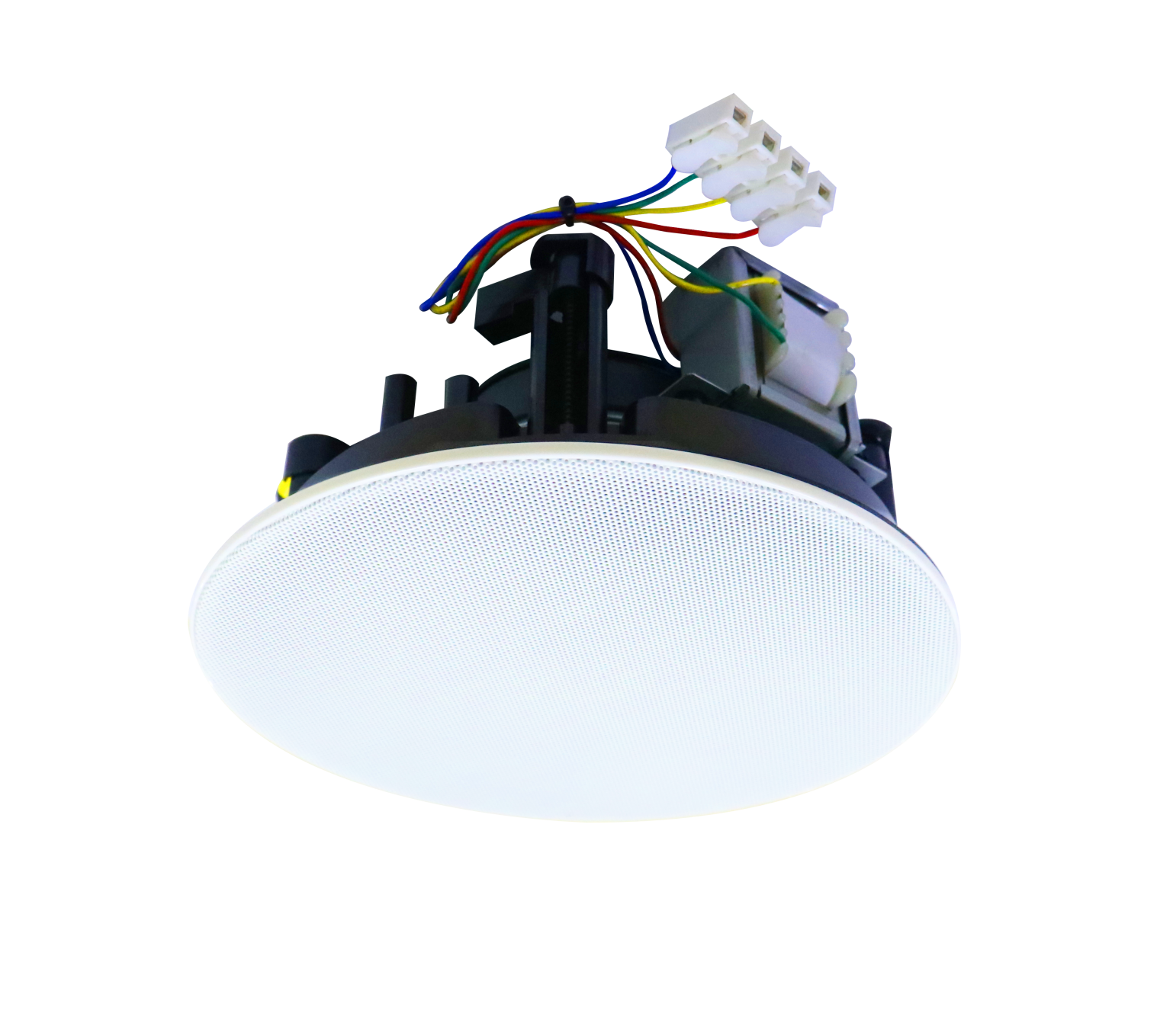

Side & Rear View:

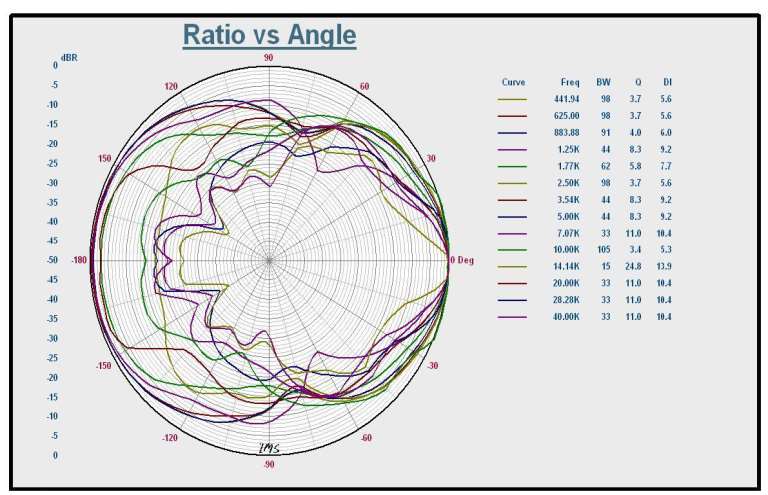

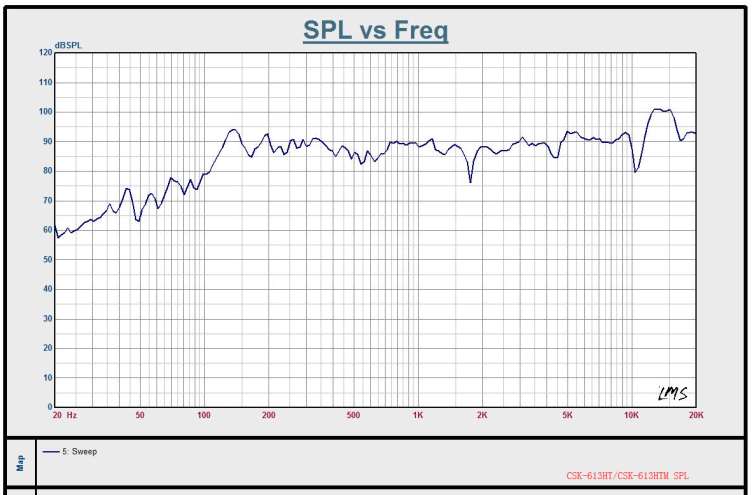

Polar Diagram & Frequency Response:
