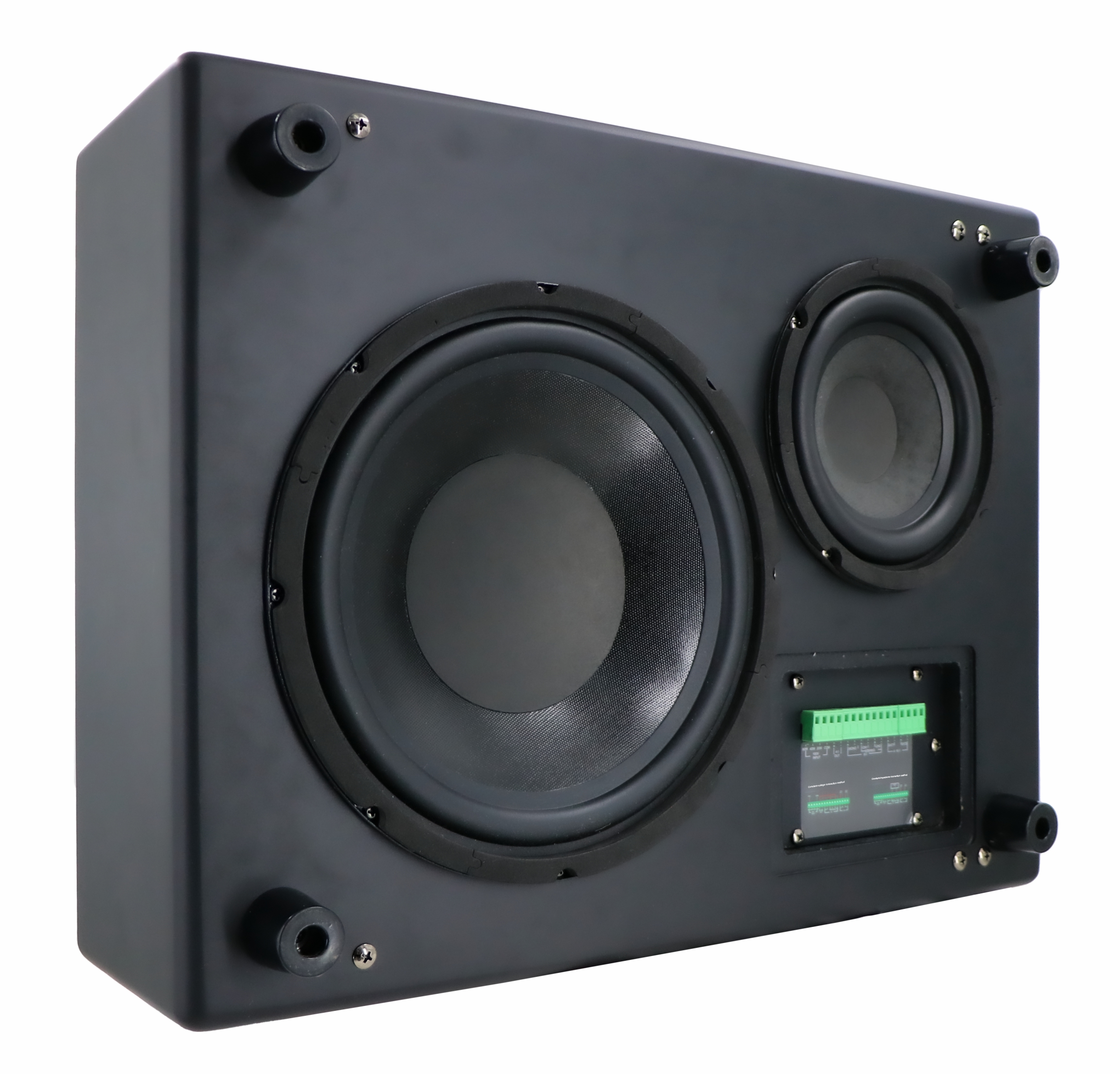

Super Bass Wooden Box Speaker SUB-608HT
100V 70V Speakers Subwoofer Professional Loudspeakers 100 Volt Speakers BGM Speakers Outdoor SpeakerDeep Bass Options, 6.5″ subwoofer+10″ passive basin deliver enhanced low-frequency extension, boosting bass response for warmer and richer BGM,Flexible Input Options,100V/70V transformer and 8Ω both applications,Rated power 80W, support 80W-40W-20W power tap
100V 70V Speakers Subwoofer Professional Loudspeakers 100 Volt Speakers BGM Speakers Outdoor Speaker
Features:
- High-quality wooden speakers strong sound quality
- Deep Bass Options, 6.5″ subwoofer+10″ passive basin deliver enhanced low-frequency extension, boosting bass response for warmer and richer BGM
- Flexible Input Options,100V/70V transformer and 8Ω both applications
- Rated power 80W, support 80W-40W-20W power tap
- Slim Wooden Enclosure,ultra-thin wooden cabinet design in black
- Flexible Installation,support floor, wall installation(option)
- Ideal solution for the BGM in bar,coffee shop,restaurant,fitness center ext.
- On floor installation. Sepcial bracket for on-wall and on-ceiling as an option.
Specifications:
Model | SUB-608HT |
| Description | Super Bass Wooden Box Speaker |
| Power Taps | 100V 80-40-20 W & 8Ω |
| Line Input | 100V/70V & 8Ω |
| Sensitivity 1W/1m | 85±3dB |
| Frequency Response | 40Hz-450KHz |
| Speaker Driver | 6.5″ subwoofer+10″ passive basin speaker system |
| Finish | Slim Wooden Enclosure,ultra-thin wooden cabinet design in black |
| Mounting Way | Floor installation,on-ceiling&on-wall (option) |
| Dimensions | 500×380x150mm |
| Weight | 10kg |
Installation & Wiring diagram:

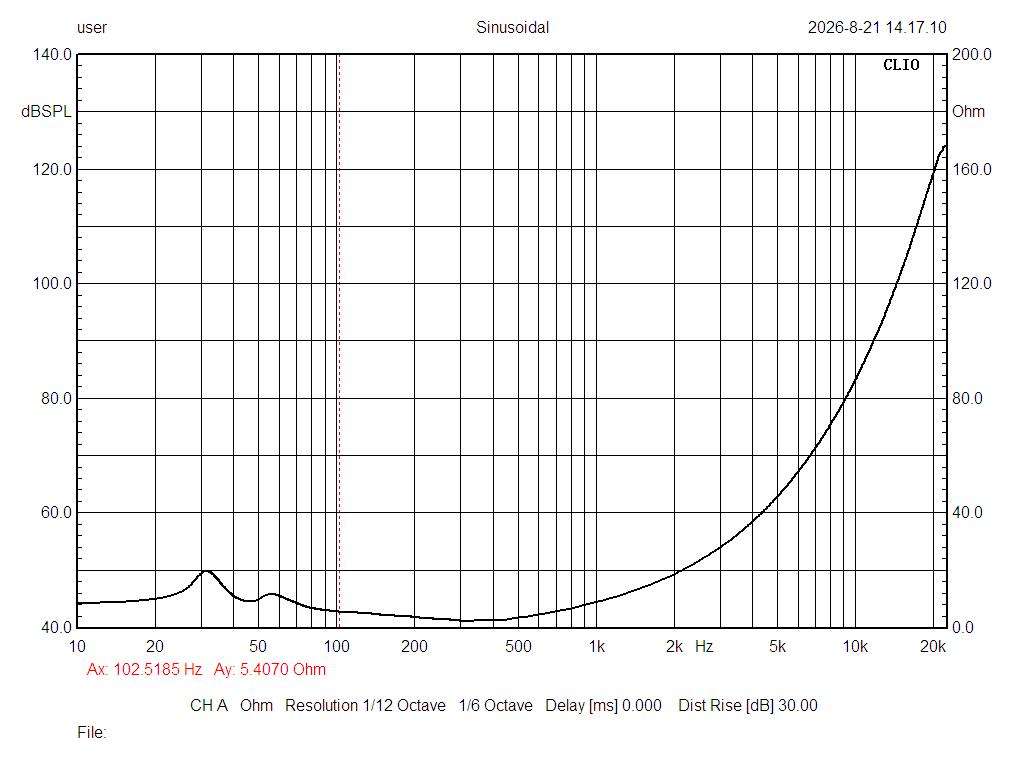

Frequency Response and Impedance Diagram:
