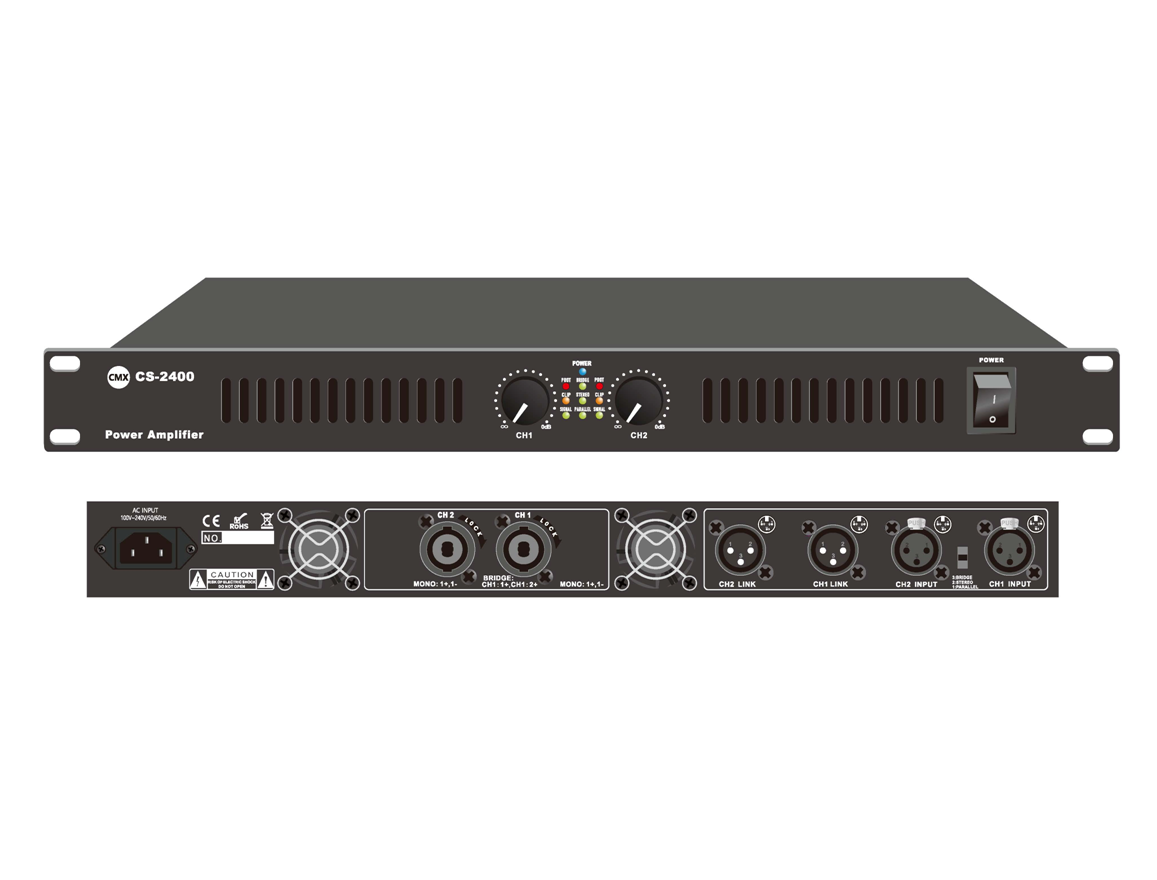

Professional Stereo Power Amplifier CS-2100 CS-2200 CS-2300 CS-2400
Professional Sound Power AmplifierProfessional stereo power amplifier of 2 channel, low impedance version support 8Ω, & 4Ω, rated power from 2×100W, 2×200W, 2×300W, 2×400W at stereo 8Ω, digital class-D amplifier of 19 inch rack mount type in 1U height.
Professional Sound Power Amplifier
Description:
The CS-2100 series power amplifier is designed for professional audio application and fix installation sound system, it is digital class-D technology which helps the amplifier generate powerful output while keep less heat because of its high efficiency up to 85%. The power amplifier is designed with PWM special power supply to ensure its extreme stability, less noise and minimum heat. Its rated power from 2×100W, 2×200W, 2×300W, 2×400W at stereo 8Ω, the amplifier support 8Ω & 4Ω and versatile mode of stereo, parallel and bridge makes it work well with line array speaker, subwoofer and professional loudspeakers. With complete protection of clip, high temp, overload and short circuit to ensure this amplifier work under severe working environment.
Feature:
- Switching power technology digital Class-D power amplifier
- Green technology amplifier of 85% efficiency
- With PWM special power circuit to ensure excellent cooling system
- 19” universal rack mount type in 1U height
- Support stereo output at 8Ω & 4Ω
- Output mode selector of stereo, parallel and bridge
- 2×Input by balanced XLR male connector
- 2×Output by balanced Speakon female connector
- Complete protection include clip, high temp, overload and short circuit
Specification:
Model | CS-2100 | CS-2200 | CS-2300 | CS-2400 |
Description | Two Channel Power Amplifier | |||
Rated Output 4Ω | 2×170W | 2×350W | 2×500W | 2×600W |
Rated Output 8Ω | 2×100W | 2×200W | 2×300W | 2×400W |
Bridge Out 4Ω | 1×330W | 1×600W | 1×900W | 1×1000W |
Bridge Out 8Ω | 1×160W | 1×330W | 1×500W | 1×630W |
Frequency Response | 20Hz~20KHz | |||
THD | <0.3% | |||
S/N Ratio | >105dB | |||
Input Impedance | 20KΩ (bal.), 10KΩ (unbal.) | |||
Crosstalk | >75dB | |||
Connector | Input by XLR, 1V, 20KΩ (bal.), 10KΩ (unbal.) | |||
Power Supply | AC 100~240V, 50/60Hz | |||
Dimension | 484×375×44mm | |||
Net Weight | 2.5kg | 2.6kg | 2.8kg | 3.0kg |
