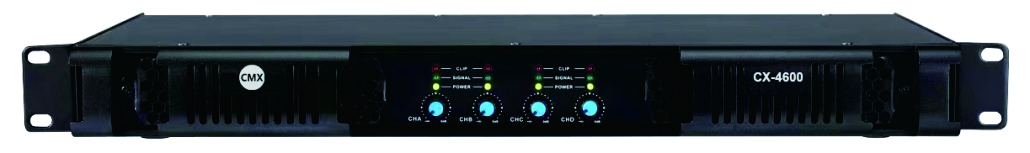

Professional Power Amplifier CX-4600 CX-4800 CX-41000 CX-41200 CX-41400 CX-41600 CX-41800
class-d amplifier, class d amplifier, power amplifier, digital stereo power amplifier with lcd, LCD power amplifier, stereo power amplifier with display, LCD display stereo power amplifier, professional power amplifier, pro power amplifier, installation amplifier, digital power amplifier, professional power amplifier, D amplifier, 8 ohm amplifier, 4 ohm
Feature:
- 1U high standard chassis, compact and lightweight;
- Class D power amplifier module with fixed switching frequency;
- Soft switching LLC resonant switching power module;
- Active Power Factor Correction (PFC) technology, which can operate stably within the full voltage range (90-264V);
- Efficient speaker back electromotive force absorption system;
- Unique peak shaving limiter and ripple elimination network;
- Temperature controlled variable speed fan, with airflow flowing from front to back;
- Backplane connection mode selection (stereo/parallel/bridge);
- The back panel is equipped with input sensitivity selection switch (0.775v/1v/32dB);
- Comprehensive circuit protection, including: soft start, DC, sub audio frequency,overheating, short circuit,startup/shutdown mute;
- Integrated design of power amplifier module and power module, with over 85% of devices using automated operation to ensure product consistency.
| Model | CX-4600 | CX-4800 | CX-41000 | CX-41200 | CX-41400 | CX-41600 | CX-41800 |
F r e q u e n c y R e s p o n s e | ±.5dB | ||||||
| T.H.D | ≤0.035% | ≤0.05% | ≤0.05% | ≤0.1% | ≤0.1% | ≤0.1% | ≤0.1% |
| IMD | ≤0.15% | ||||||
Signal noise8Ω,1kHz,1v Sensitivity | ≥104dB | ||||||
| Input Sensitivity | 0.775V/1V/32dB | ||||||
| Input impedance | 20KΩ/10KΩ | ||||||
| Slew Rate | ≥20V/uS | ||||||
| Damp factor | ≥600 | ||||||
| Resolution | ≥70dB | ||||||
| 8Ω/Stereo | 600Wx4 | 800Wx4 | 1000Wx4 | 1200Wx4 | 1400Wx4 | 1600Wx4 | 1800Wx4 |
| 4Ω/Stereo | 900Wx4 | 1300Wx4 | 1600Wx4 | 2000Wx4 | 2300Wx4 | 2600Wx4 | 2900Wx4 |
| 2Ω/Stereo | 1200Wx4 | 1500Wx4 | 1900Wx4 | 2300Wx4 | 2600Wx4 | 3000Wx4 | 3700Wx4 |
| 8Ω/Bridge | 1200Wx2 | 2600Wx2 | 3200Wx2 | 4000Wx2 | 4600Wx2 | 5200Wx2 | 5800Wx2 |
| 4Ω/Bridge | 2400Wx2 | 3000Wx2 | 3800Wx2 | 4600Wx2 | 5200Wx2 | 6000Wx2 | 7400Wx2 |
| Size(W x L x H) | 483x238x45mm | 483x290x45mm | |||||
