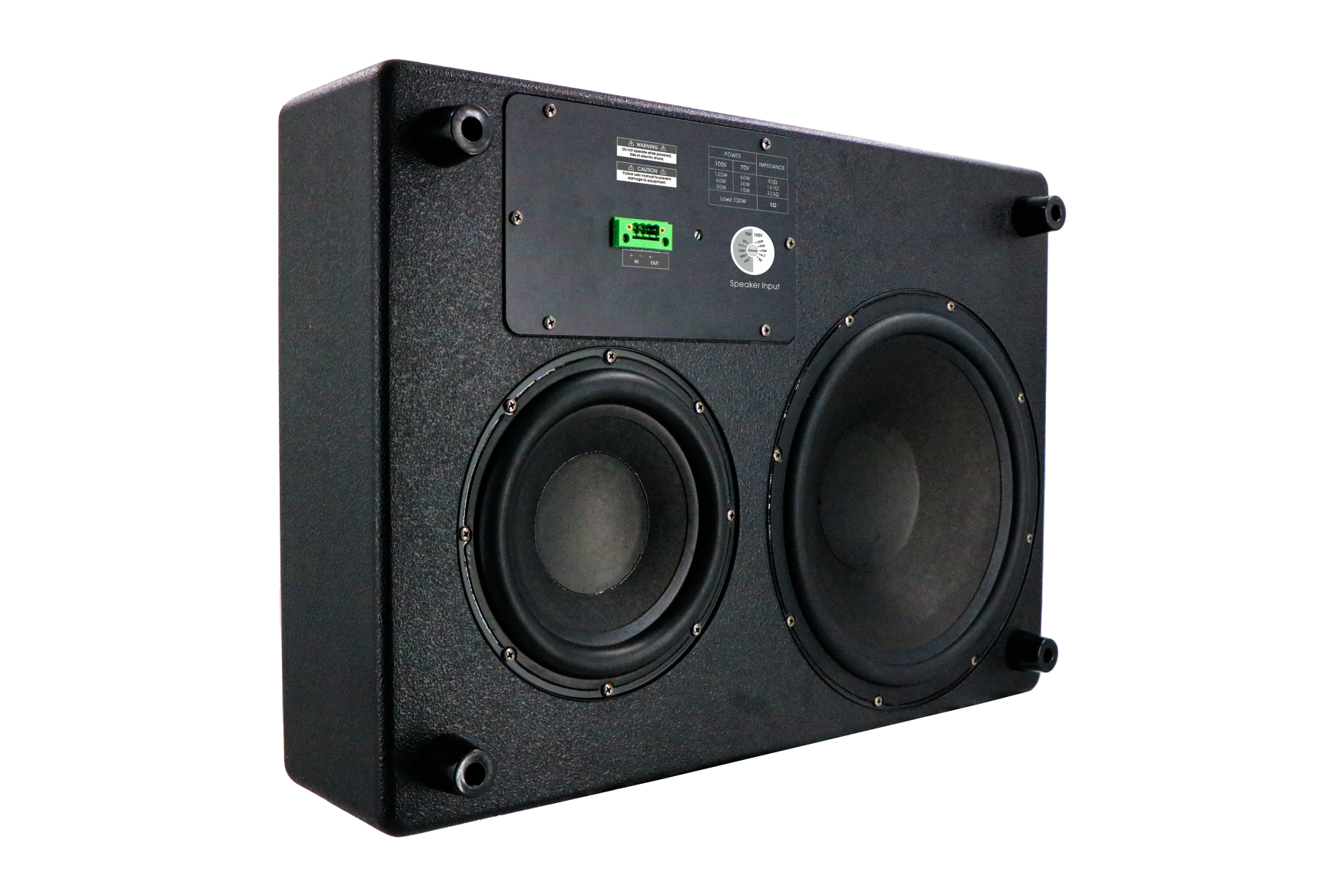

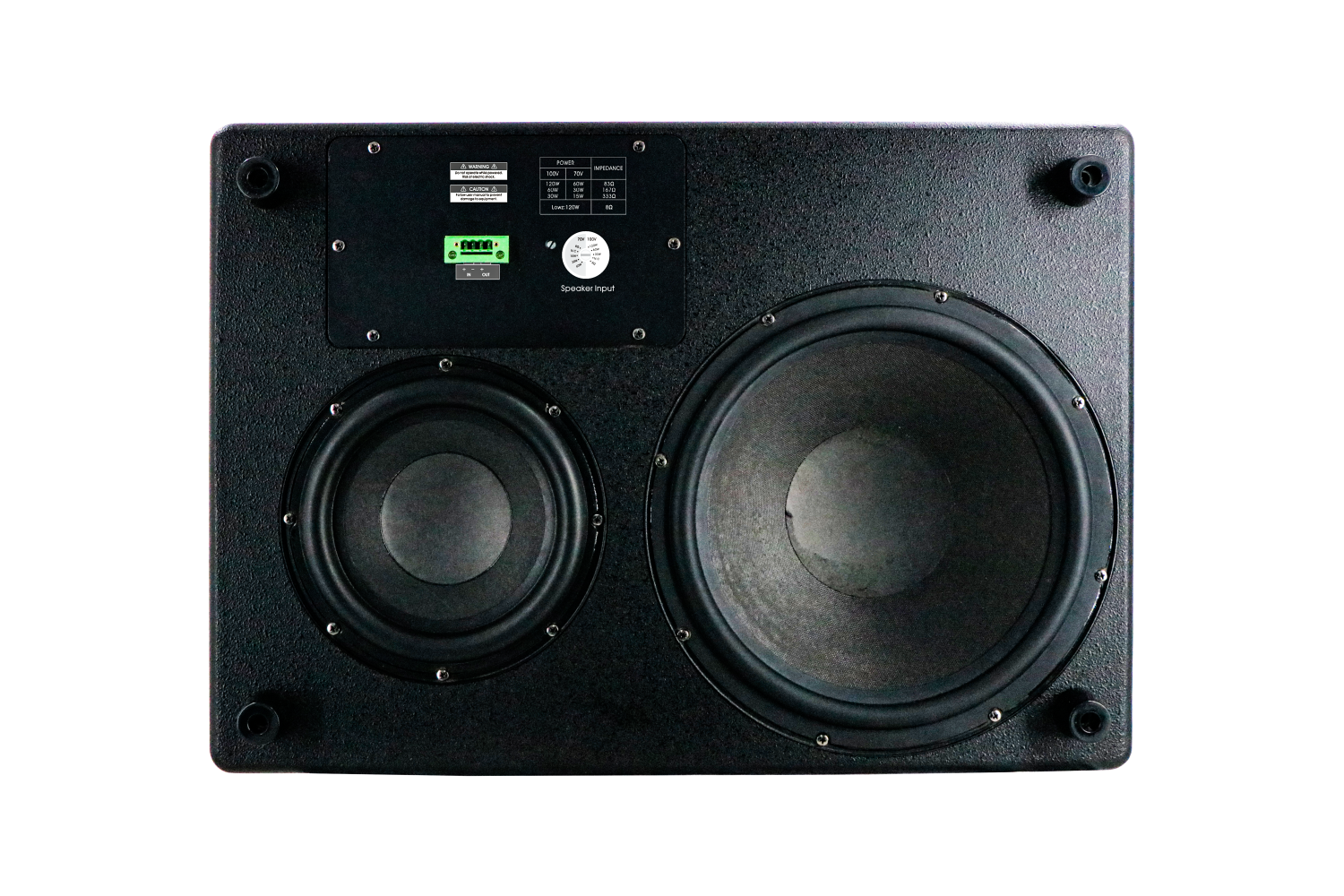

Super Bass Wooden Box Speaker SUB-812HT
High-quality wooden speakers strong sound quality,Flexible Input Options,100V/70V transformer and 8Ω both applications,Rated power 120W, support 120W-60W-30W power tap,Ideal solution for the BGM in bar,coffee shop,restaurant,fitness center ext.
Features:
- High-quality wooden speakers strong sound quality
- Deep Bass Options, 8″ subwoofer+12″ passive basin deliver enhanced low-frequency extension, boosting bass response for warmer and richer BGM
- Flexible Input Options,100V/70V transformer and 8Ω both applications
- Rated power 120W, support 120W-60W-30W power tap
- Slim Wooden Enclosure，ultra-thin wooden cabinet design in black
- Flexible Installation,support floor, wall installation(option)
- Ideal solution for the BGM in bar,coffee shop,restaurant,fitness center ext.
Specifications:
| Model | SCK-812HT |
| Description | Super Bass Wooden Box Speaker |
| Power Taps 100V | 120-60-30 W & 8Ω |
| Line Input | 100V/70V & 8Ω |
| Sensitivity 1W/1m | 85±2dB |
| Frequency Response | 55Hz-550KHz |
| Speaker Driver | 8″ subwoofer+12″ passive basin speaker system |
| Finish | Slim Wooden Enclosure，ultra-thin wooden cabinet design in black |
| Mounting Way | Floor and wall installation (option) |
| Dimensions | 600×420x165mm |
| Weight | 10.7kg |
Installation & Wiring diagram:

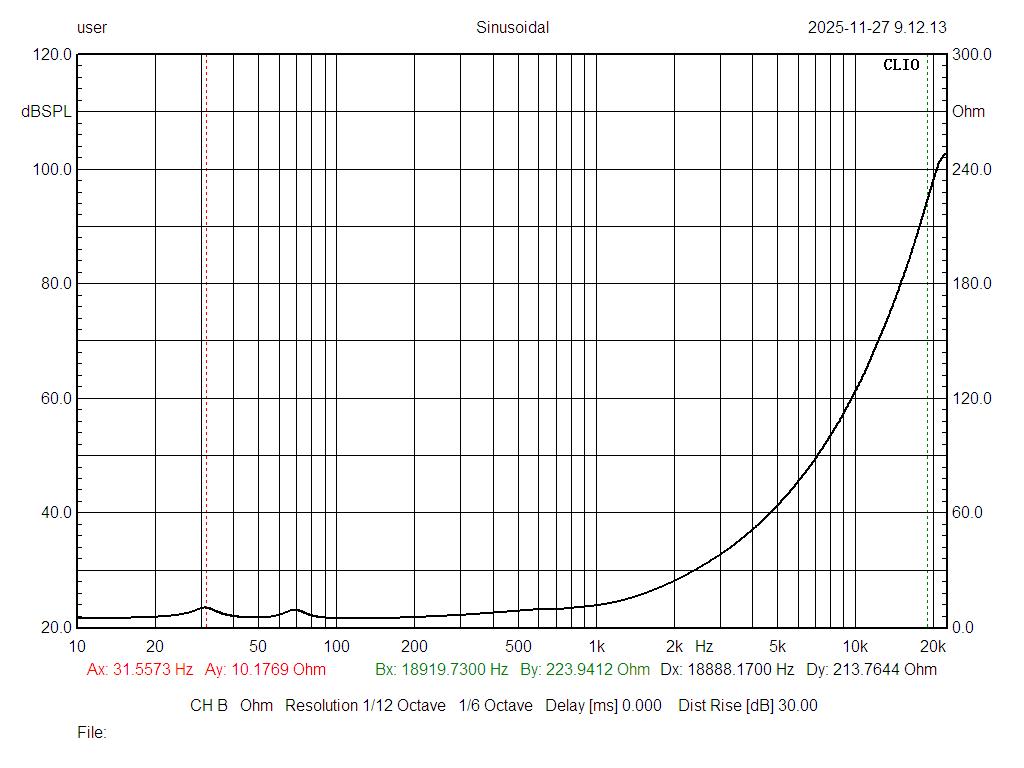

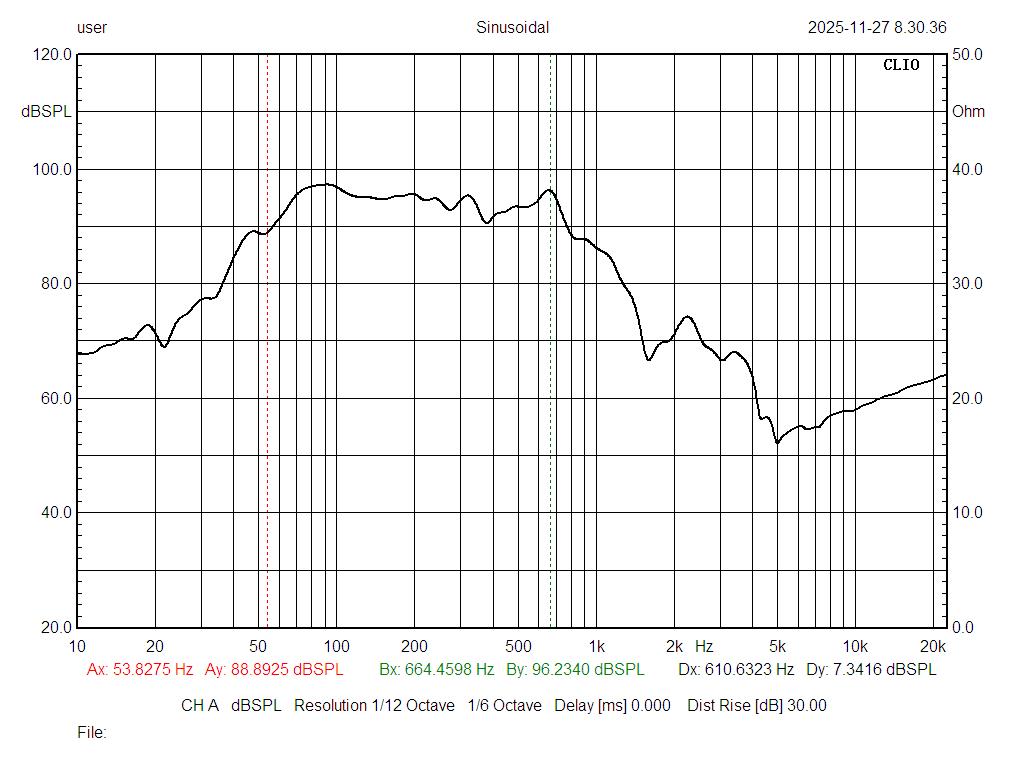

Frequency Response and Impedance Diagram:
