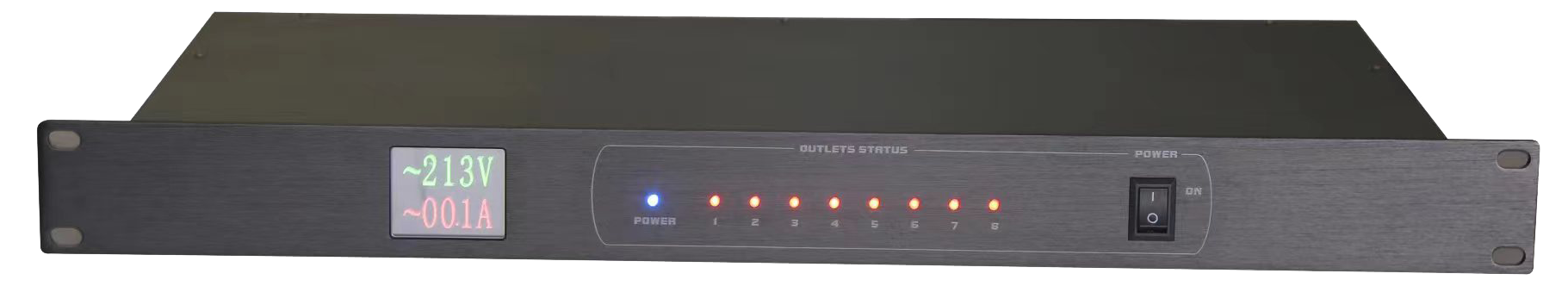

Power Sequencer PA-208PS
Power Sequencer PA-208PS Power Management System to sequencely power on and power off the full professional sound system to avoid high current power damage.
Power Sequencer PA-208PS
Feature:
19”rack mount power sequencer for low voltage system and PA sound system
8 channel power sequencer to manual or auto power control the amplifier
By using this programmable power sequencer to power on/off the amplifier in sequence to avoid high current to damage the amplifier or the power supply system
The interval time is 1.5 seconds between 2 channel actions

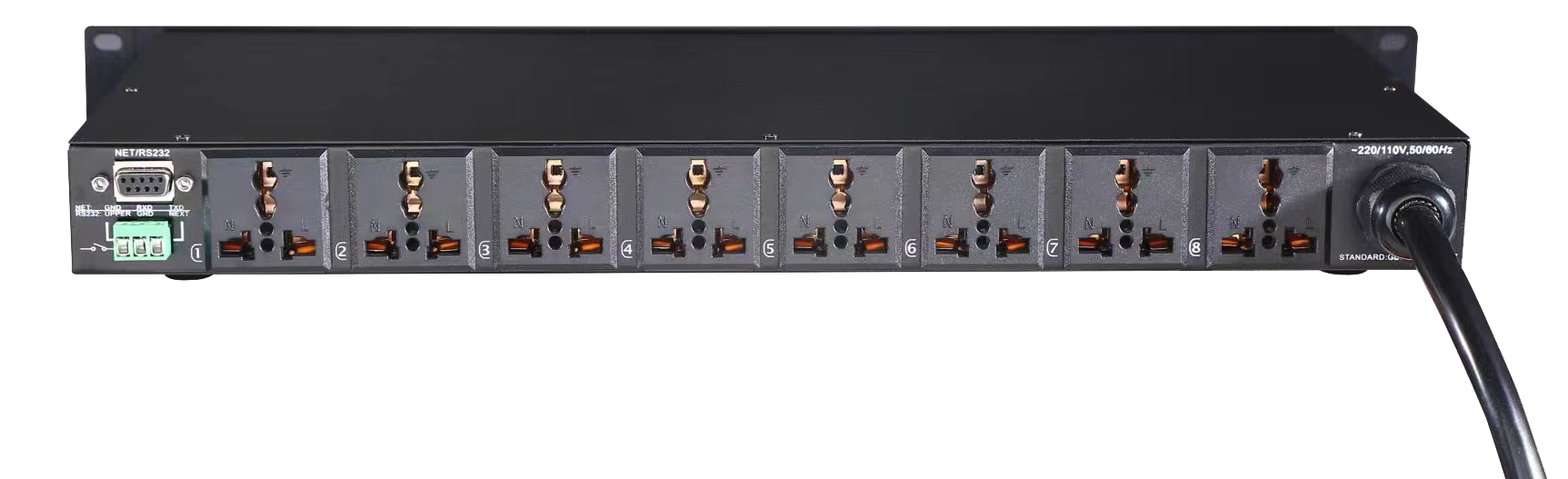

With universal power socket compatible for European, British and Chinese power plug
Each channel with working status on front panel for monitor use
Maximum loading capacity is 6,000 watts for total 8 channels
Each channel maximum output current is 10A
Total 8 channel maximum output current is 30A
With remote power control terminal open circuit to power on and short circuit to power off this unit
AC 115V or 230W power operation, 50-60Hz
Model | PS108 |
Description | 8 Channel Power Sequencer |
Power Consumption | 25W |
Total Output Current | 30A, 6,000W |
Each Channel Out Current | 10A, 750W |
Interval Time | 1.5 second |
Indicators | 8 channel working status on front panel |
Power Socket | Multi-functional socket European, British and Chinese power plug |
Remote Power Control | Remote power control terminal open circuit to power on and short circuit to power off this unit |
Dimension | 425(W)×265(D)×44(H)mm |
Weight | 3.42kg |
Warranty | 1 year |
