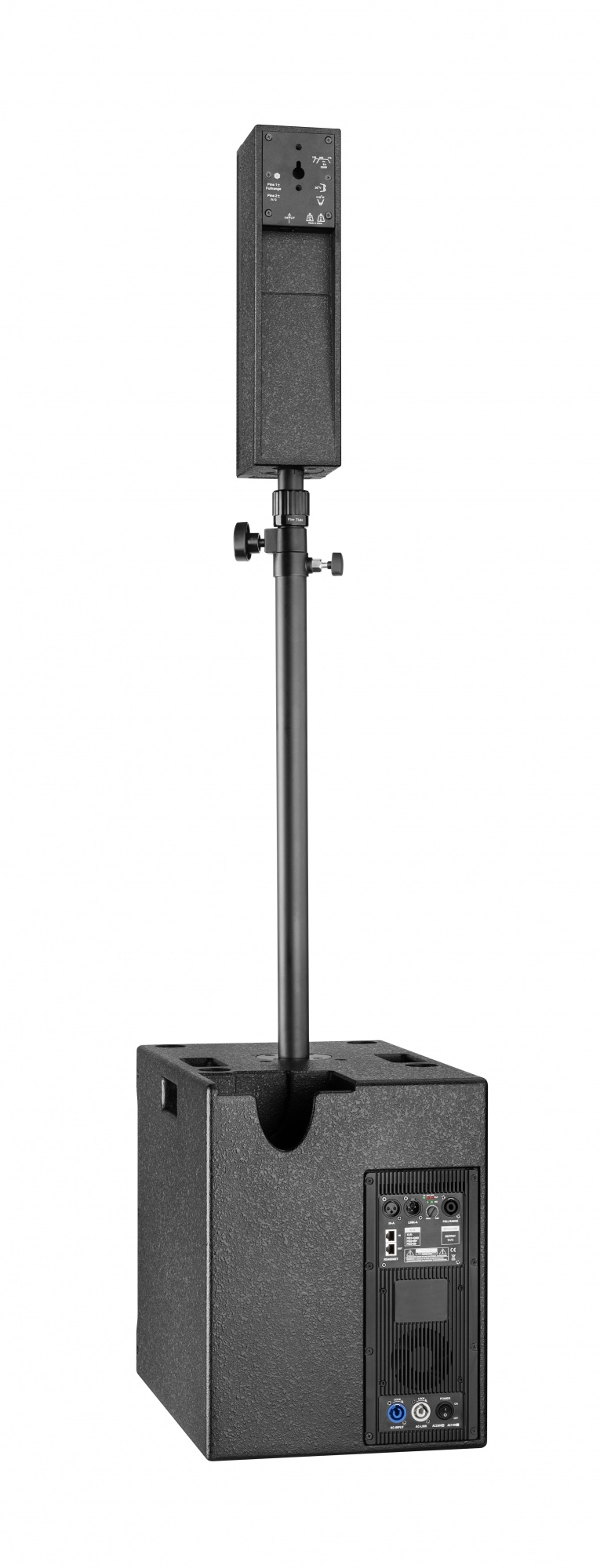

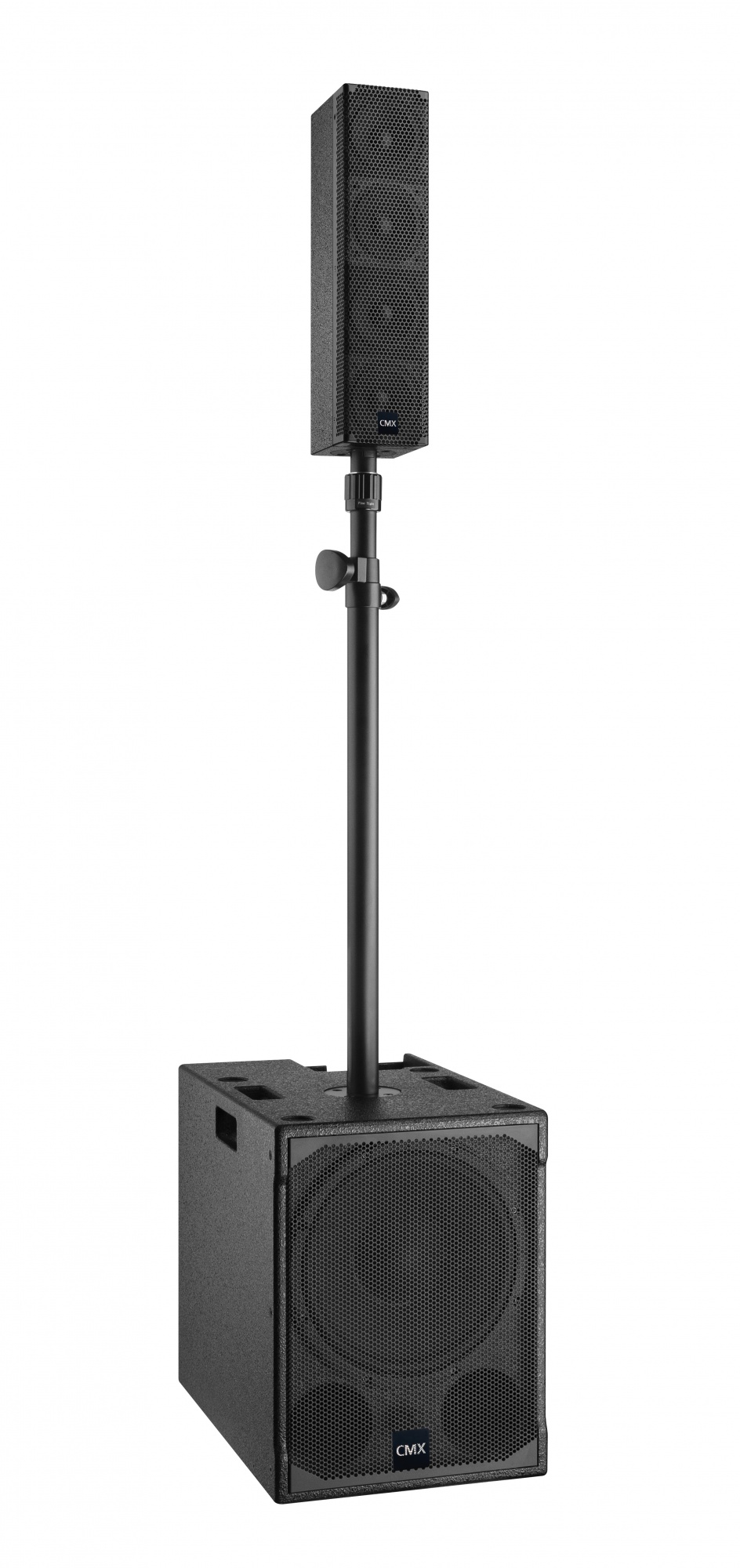

Portable Active Line Array Speaker LASH-12
Active Line Array Powered Line Array Portable Line ArrayPortable Active Line Array Speaker LASH-12 is one set active line array which includes one active 12 inch subwoofer and one 4 inch line array. One pair of this active line array is easy to set up one outdoor live performance system or mobile sound reinforcement system. The built-in amplifier is of well protection and heavey duty performance, the built-in DSP processor with several pre-setting to match with conferencing solution, live performance, openning ceromony and lecture use.
Active Line Array Powered Line Array Portable Line Array
Features:
- All in one portable sound system Active Curved line array Column Speaker Set.
- Complete set with active subwoofer, column speaker & amplifier with mounting pole &connection lead.
- Top-level sound quality from 30Hz to 20k Hz ideal for live sound & fixed installation.
- Long distance sound projection and better than 126dB SPL distribution towards the audience.
- 300W+500 watt 2-way peak power of powerful but compact design.
- Great and dynamic power performance thanks to bi-amplification system.
- Stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
- Lightweight and easy to carry for mobile use or rental use.
- Design and elegance for an easy integration even in the most demanding installations.
- Compact dimensions enable the listener to enjoy even sound dispersion no matter distance near or far away.
Description:
Designed based on the line sound source principle, sound waves will hardly spread in the vertical direction, but will only amplify the sound in the horizontal direction. It reduces the vertical reflection to the greatest extent, thus reducing the reverberation. At the same time, the sound pressure attenuation in the rear field of the linear sound source fan is relatively small, ensuring further improvement of sound clarity.
It adopts a design of four newly developed 4-inch full-range speakers arranged in an arc shape staggered left and right, paired with a 12-inch woofer. Effectively reduce unwanted interference between speakers to obtain crystal clear sound and a relatively suitable vertical dispersion angle to meet various expansion needs, from speeches to exciting music.
Active systems effectively control the generation of reverberate sounds and increase the propagation distance of sounds because sound waves spread in the effective vertical direction. Convenient, easy to use.
Suitable for small and medium-sized events and rental live sound system applications.
Specification:
Model | LASH-12 | |
Description | Active Subwoofer & Column Speaker Set | |
Components | Passive Column Speaker 4X4" | Active Sub-woofer 1X12" |
Impedance | 8 Ohms | 8 Ohms |
Frequency Response DSP | Control by computer | |
Sub | 12",Voice coil 3in | |
Column | 4*4"+Voice coil 1in | |
Speaker Power | Sub：500W/750W/1000W；Sub：120W/300W/450W | |
Dispersion | Horizontal110° Vertical30° | |
Frequency Range | Sub：30Hz～2.5KHz(-10dB)；Column：30Hz～20KHz(-10dB) | |
Frequency Response | Sub：40Hz～300Hz(+-3dB)；Column：100Hz～17kHz(+-3dB) | |
Max SPL @ 1W/1m | Sub：126dB；Column：124dB | |
Sensitivity @ 1W/1m | Sub：96dB；Column：97dB | |
Input | Sub1× XLR | |
Active power amplifier module | Sub Amplifier 800W+Sub Amplifier600W | |
Frequency Response DSP | Control by computer | |
THD (THD%) | (10%Rated power，1KHz ) <0.5% Slew rate( Rated power，1KHz)>20V/μs | |
Damping coefficient | (Rated power，1KHz)>200 | |
Dynamic Range | ≥95dB | |
SNR | ≥95dB | |
Sensitivity (Rated power,1KHz) | 1.2V rms | |
