PA-1600RM 16 Zone Paging Selector
The 16 zone remote microphone for remote paging use.Paging modes of separate zone, group zone and all zones remote paging.System capacity of 5 remote paging microphone working at the same time.Work together with PA-1600MC matrix paging controller.High sensitivity condenser microphone of chime and mute features.Audio signals using high-quality balanced transmission technology.Audio signals and control signals using real-time transmission technology.External 24V DC input connector.
Feature:
- The 16 zone remote microphone for remote paging use.
- Paging modes of separate zone, group zone and all zones remote paging.
- System capacity of 5 remote paging microphone working at the same time.
- Work together with PA-1600MC matrix paging controller.
- High sensitivity condenser microphone of chime and mute features.
- Audio signals using high-quality balanced transmission technology.
- Audio signals and control signals using real-time transmission technology.
- External 24V DC input connector.
Specification:
Model | PA-1600RM |
| Description | 16 Zone Remote Microphone |
| Voltage | 24V DC |
| Mic. Input | MIC:600 ohms(Ω) 5mV,unbalanced |
| Line Output | LINE:10k ohms(Ω) 10V,unbalanced |
| Freq. Resp. | MIC,LINE:60 Hz ~ 16k Hz (± 1 dB) |
THD | <0.5% at 1kHz |
| Power Consumption | <0.25mA (each keyboard is less than 0.03mA) |
| Sensitivity | 5mV |
| Rated Output Level | 5V (parallel) |
| SNR | >70dB |
| Distortion | <1% (Rated Output), 1KHz |
| Frequency | 100Hz~16KHz |
| Output Impedance | 100Ω |
| Operation Temp | +5℃ - 40℃ |
| Storage Temp | -20℃ - 70℃ |
| Relative Temp | <95% |
| Dimensions | 238(W)×170(D)×70(H)mm |
| Net Weight | 2.3Kg |

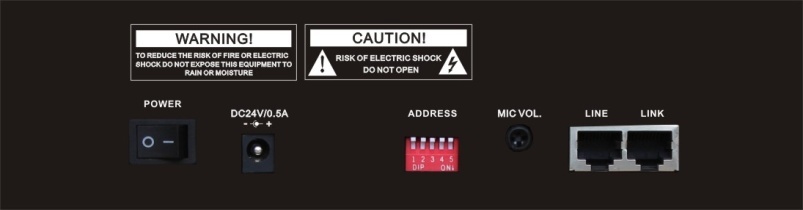

Rear Panel:
