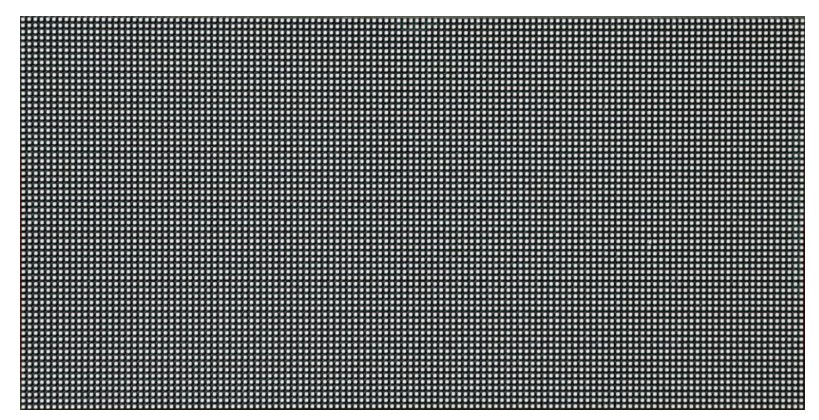

P2.5 Indoor Full Color Viedo Wall (1515 lamp beads) LI-P2.5
LED DisplayIt has the characteristics of seamless splicing, perfect display, long service lifespan, fast frame changing speed, high refresh rate, good
uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch, security
monitoring, video conference, studio display, and various conference display occ
LED Display
Unit Module:
LED Packaging Method:SMD2020 Surface Mount Three-in-One
Horizontal Viewing Angle (H):170°±5°
Vertical Viewing Angle (V):170°±5°
Pixel Composition:1R1G1B
Point Pitch:2.5mm
Scanning Method:1/32 Scan
Drive Mode:Constant Current Drive
Module Resolution:128×64 Dots
Module Size:320mm×160mm×15mm
Module Weight:379g±5g
Module Type:Light Drive Integration
Module Operating Voltage:4.5V - 5V
Module Average Power:11W
Maximum module power:22W
Entire screen:
Usage environment:Indoor
White balance brightness:≥500cd/m²
Color temperature:3000 - 21000K
Average power:211W/m²
Maximum power:422W/m²
Brightness uniformity:≥98.5%
Chroma uniformity:Within ±0.002Cx,Cy
Pixel density (dots/square meter):160000
Power supply mode:AC200 - 240V,50/60Hz
Ground leakage current:≤3.5mA/m²
Working environment temperature:-20℃~40℃
Working environment humidity:10%~60%
Storage environment temperature:-20℃~60℃
Whole screen:
Storage environment humidity:10%~60%
Frame change frequency:60Hz
Refresh frequency:≥1920Hz
Optimal viewing distance:≥2.5m
Signal processing depth:16384
Grayscale/color:281 trillion
Brightness adjustment software:Software 16-level adjustment/16-level automatic
Control mode:Synchronize with computer display screen
Effective communication distance without relay:Maximum transmission distance of unshielded twisted pair is 100 meters, multi-mode optical fiber transmission distance can reach 500 meters, and single-mode optical fiber transmission distance can reach 15 kilometers
Computer operating system:Windows (XP, Vista), Win7, Win8, Win10
Video signal:VGA, DVI, RF, S-Video, RGBHV YUV, YC, COMPOSITION, etc.
MTBF:≥10,000 hours
Lifespan:≥100,000 hours
Entire screen pixel loss rate:≤1/10,000
Regional pixel loss rate:≤3/10,000
Stability:Supports 7×24H continuous operation
Flame retardant (fireproof):PCB flame retardant grade reaches UL94 V-0 level
Kit material:PC + fiber
Attenuation rate (3 years of operation):≤15%:
