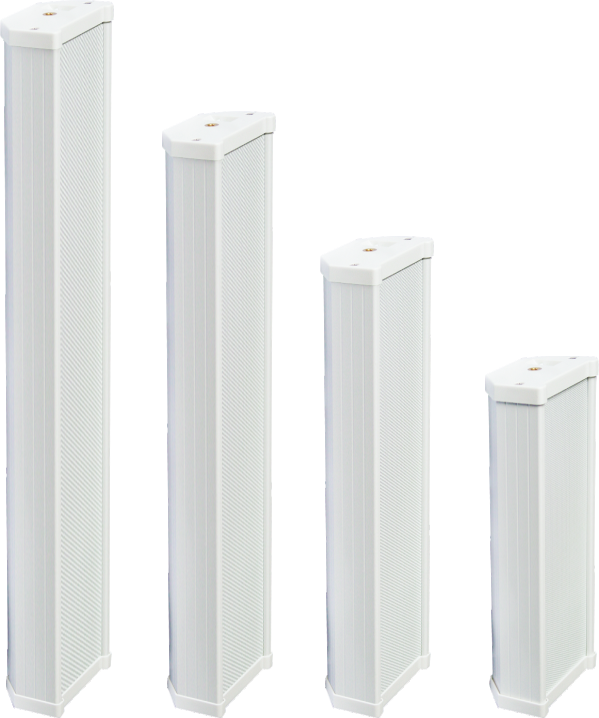

Outdoor Column Speaker CLSK-102E/CLSK-202E/CLSK-302E/CLSK-402E
Installation Loudspeakers 100 Volt Speakers BGM Speakers Outdoor Speaker Waterproof Speaker IP66 Waterproof 2-Way Speakers Outdoor Column SpeakersRated power output 40W / 30W / 20W /10W in 100V,Waterproof level of IP66,Line input 100V or 70V by fire-resistant cable tail with waterproof gland,Ideal for outdoor music and speech use in factory, school, office, hotel and airport
Installation Loudspeakers 100 Volt Speakers BGM Speakers Outdoor Speaker Waterproof Speaker IP66 Waterproof 2-Way Speakers Outdoor Column Speakers
Feature:
- Outdoor column speaker with transformer
- Ideal for outdoor music and speech use in factory, school, office, hotel and airport
- 2.5 ” speaker unit system
- Rated power output 40W/30W/20W/10W in 10 0 V
- Waterproof level of IP66
- Line input 100V or 70V by fire-resistant cable tail with waterproof gland
- Aluminum alloy enclosure and grille in white
- Quick installation by supplied stainless mounting bracket
Specification:
Model | CLSK-102E | CLSK-202E | CLSK-302E | CLSK-402E |
| Description | Outdoor Column Speaker | |||
| Rated Power Output | 10W-5W | 20W-10W | 30W-15W | 40W-20W |
| Speaker | 2.5”x2 speaker system | 2.5”x4 speaker system | 2.5”x6 speaker system | 2.5”x8 speaker system |
| Line Input | 100V or 70V | |||
| Frequency Response | 170-15KHz | |||
| SPL(@1W/m) | 88±3dB | 91±3dB | 92±3dB | 93±3dB |
| IP Rate | IP66 | |||
| Connector | By fire-resistant cable tail with waterproof gland | |||
| Dimension | 262*106*75 mm | 405*106*75 m m | 548*106*75mm | 691*106*75mm |
| Material | Aluminum alloy enclosure and stainless metal bracket in white | |||
| Mounting Way | Quick installation by supplied stainless mounting bracket | |||
| Net Weight | 1.36kg | 2kg | 2.64kg | 3.24kg |

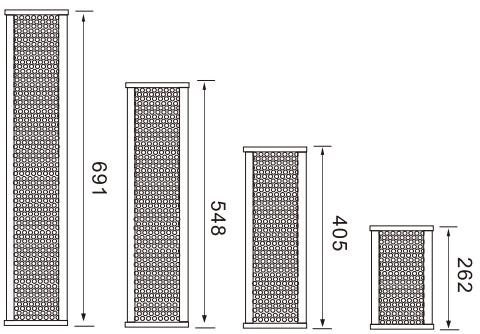

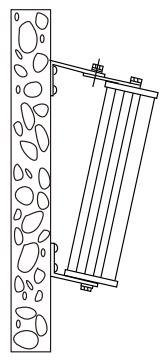

Dimension & Mounting & Diagrams:

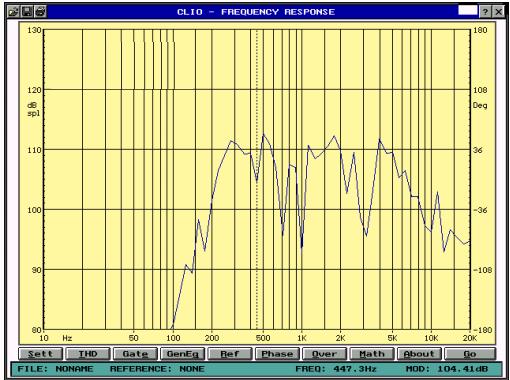

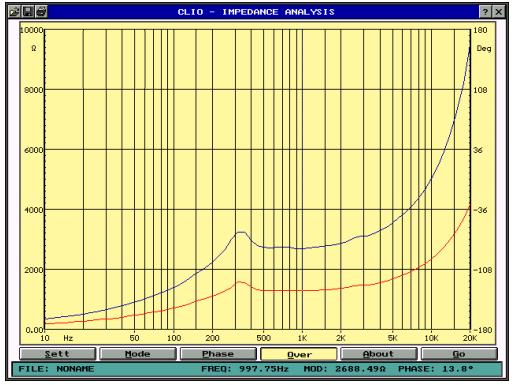

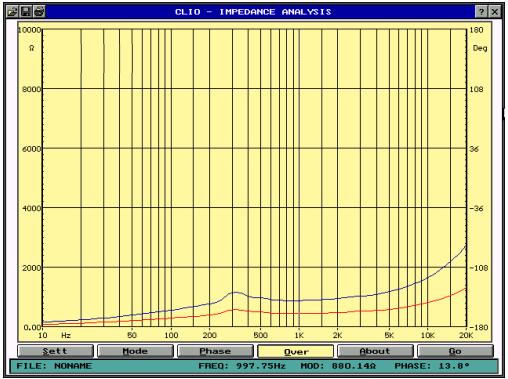

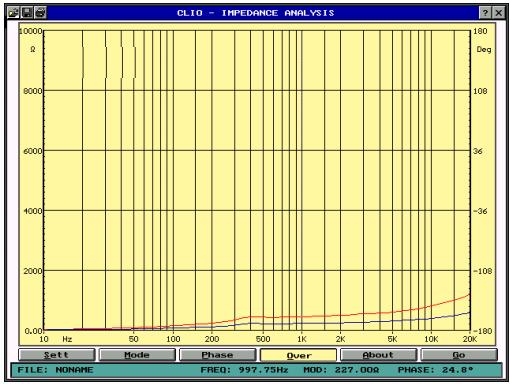

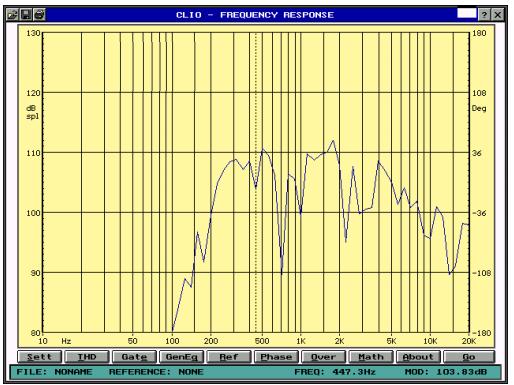

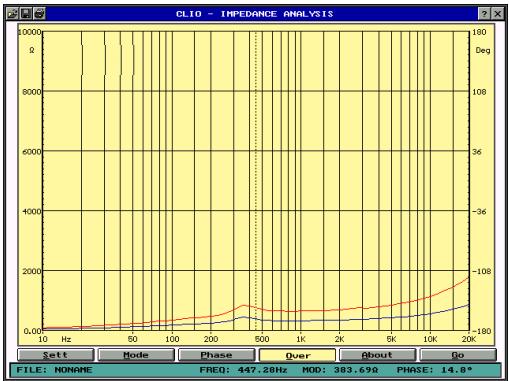

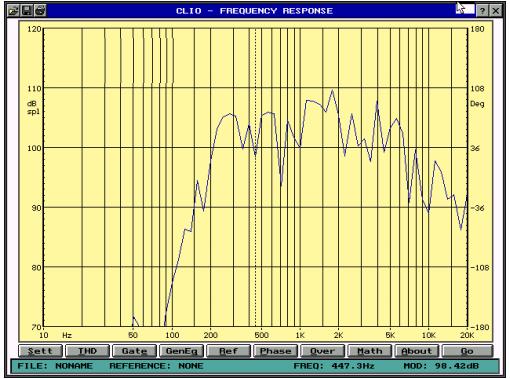

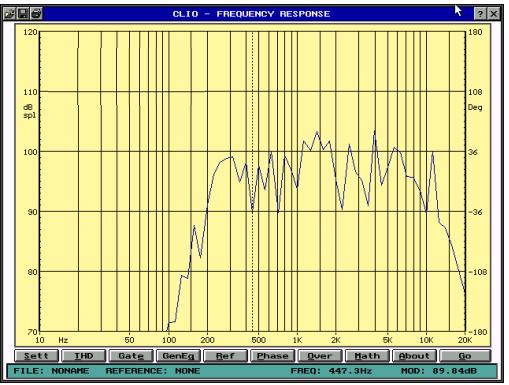

Frequency Response and Impedance Diagram:
CLSK-102E
CLSK-202E
CLSK-302E
CLSK-402E
