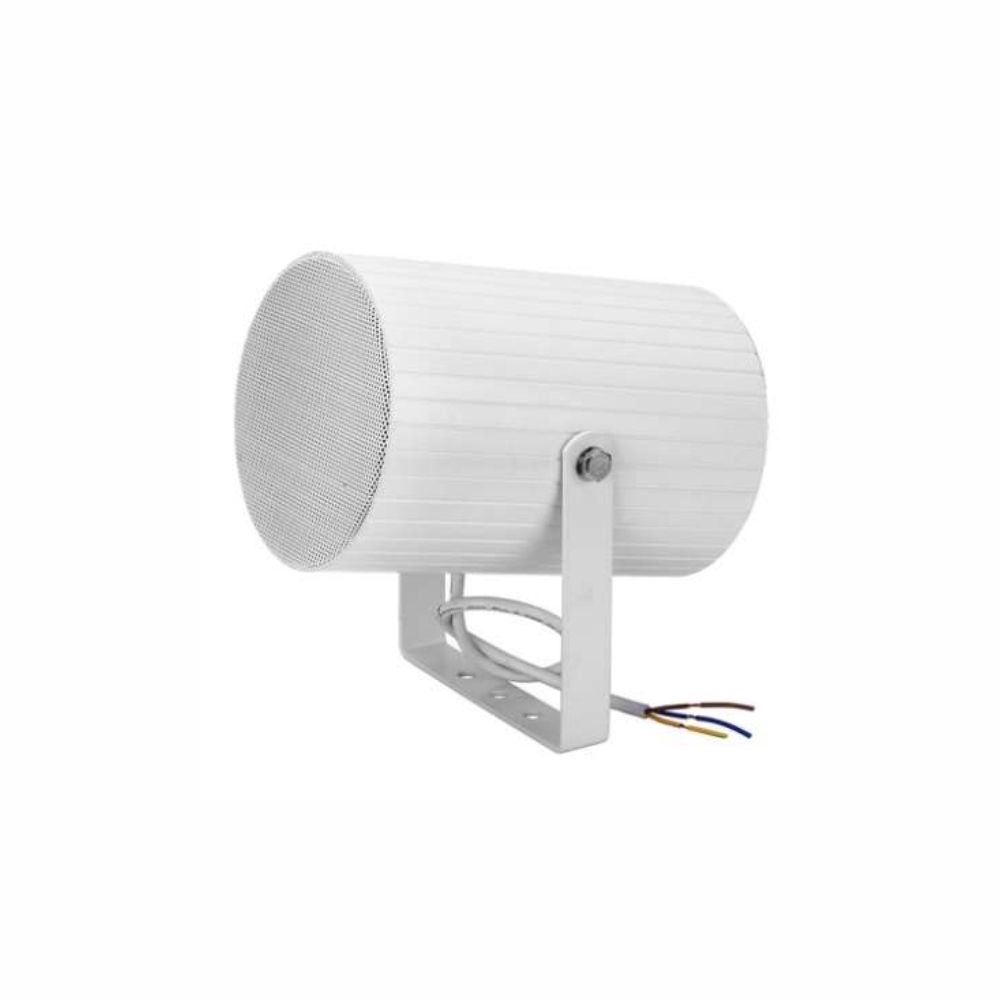

Outdoor Bi-Directional Sound Projector PJSK-20AD 10W-20W 100V or 70V
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Outdoor Speaker Waterproof Speaker Weatherproof Speaker IP66 Waterproof Projection Speakers BGM Speakers ABS Speaker Paging SpeakersOutdoor Bi-Directional Sound Projector PJSK-20AD is one outdoor projector speaker used for background music and paging system, 20W/10W, IP66 outdoor use.
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Outdoor Speaker Waterproof Speaker Weatherproof Speaker IP66 Waterproof Projection Speakers BGM Speakers ABS Speaker Paging Speakers
Feature:
- PA (Public Address) system Bi-directional sound projector with transformer
- Ideal for outdoor music and speech use in school, office, hotel and airport
- Bi-directional sound projector for both side sound dispersion
- 2×6.5” PP full range waterproof woofer
- Rated power output 10W-20W at 100V
- Waterproof level of IP66
- Line input 100V or 70V by cable tail with waterproof gland
- Aluminum enclosure and stainless metal bracket in white
- Quick installation by supplied stainless mounting bracket
Specification:
| Model | PJSK-20AD |
Description | Bi-Directional Sound Projector |
| Rated Power Output | 10W-20W |
| Speaker | 2×6.5” PP full range waterproof woofer |
| Line Input | 100V or 70V |
| Frequency Response | 110-15KHz |
| SPL(@1W/m) | 92dB |
| IP Rate | IP66 |
| Connector | By speaker cable tail with waterproof gland |
| Dimension | Φ170×252mm |
Weight | 2.8kg |
| Material | Aluminum enclosure and stainless metal bracket in white |
| Mounting Way | Quick installation by supplied stainless mounting bracket |
Side View & Dimension:
Frequency VS SPL Diagrams:
