100V POWER AMPLIFIER WITH DANTE & DSP PROCESSOR

2025-11-20 15:19:10

Click：

“ Advantage to choose DSP/DANTE power amplifier : 1. Each channel support with 100V and 8/4 Ohm speaker output 2.Multi-channel,low-latency,high-fidelity audio and video signal transmission 3. Compatible with third-party DANTE products ”

Feture:

4 x 500W Class-D power amplifier at 100V (DSP-4500)
Two channels and four channels available
Support 100V & 8 Ohm, 4 Ohm speaker output
Built-in DSP with EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter
31 bands of input PEQ and 10 bands of output PEQ
30 pre sets of DSP (Digital Signal Processor)4 Input 4 Outputs Dante network module and 4 In 4 Out matrix DSP module
One Ethernet RJ-45 network connector for Dante configure
One type C style USB port on front panel for DSP configure
Balanced line input by phoenix terminal for four channels
Complete short circuit, overload, high temp, clip and DC protection

Advantage to choose DSP/DANTE power amplifier :

1. Each channel support with 100V and 8/4 Ohm speaker output

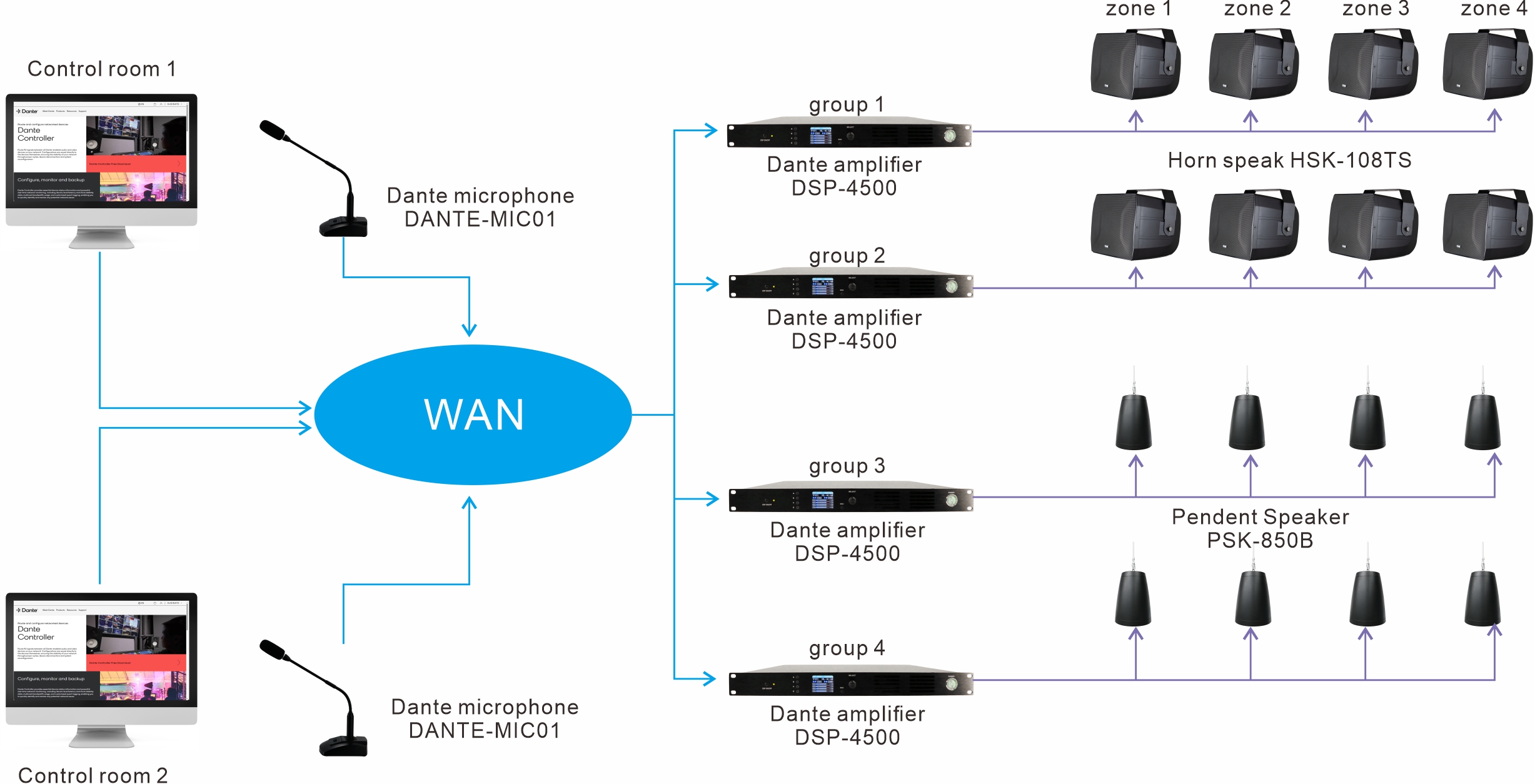

2.Multi-channel,low-latency,high-fidelity audio and video signal

transmission

3. Compatible with third-party DANTE products
