CMX IP PA Audio Solution For 1000 Stores

2025-07-31 09:55:32

Click：

“ The CMX IP PA Network Broadcasting system enables nationwide transmission, breaking regional limitations. Subsequent stores can also flexibly add and expand equipment. It supports centralized management for multiple stores, allowing different management permissions to achieve hierarchical and zoned store management. ”

Why choose the CMX DI-9700 IP PA System?

The CMX IP PA Network Broadcasting system enables nationwide transmission, breaking regional limitations. Subsequent stores can also flexibly add and expand equipment. It supports centralized management for multiple stores, allowing different management permissions to achieve hierarchical and zoned store management.

Additionally, it supports personalized zoned broadcasting, where different stores can play different music. Scheduled automatic broadcasting simplifies management, eliminating the need for manual control of store background music. It also allows remote monitoring and supervision, enabling managers to listen to store broadcasts and check broadcast status remotely. Furthermore, it can integrate with fire alarm and surveillance systems, achieving linkage with store security systems.

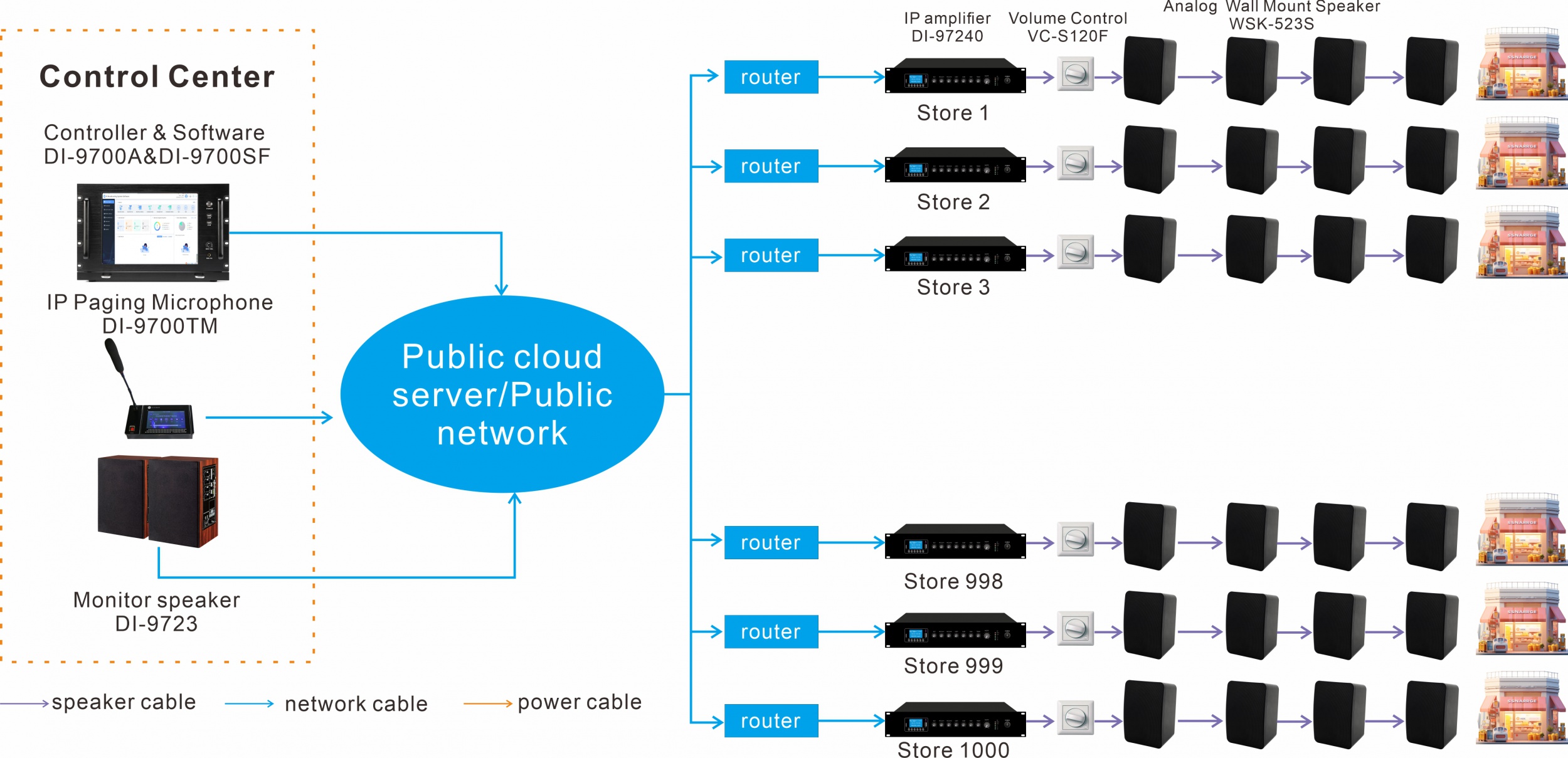

System BOQ

Model	Description	QTY
DI-9700A	15' IP Network PA System Controller, built-in large capacity SSD solid state drive,2 mic input,Aux in,1 trigger input,support dedicated Gigabit network transmission, transmission distance is not limited.Need to buy DI-9700SF and DI-9700UB together.	1
DI-9700SF	IP Network PA System Software, built-in server, built-in encoder, built-in media player, built-in status monitor, built-in weekly program timer, support English Windows 7,8,10.	1
DI-9700TM	IP Network Remote Microphone, with 7' touch screen,5W monitor speaker, USB input to broadcast pre-recorded voice message to different zoens, control up to 6,000 speaker zones	1
DI-9723	Indoor IP Wall Mount Speaker,power output 4Ω, 20W+20W, sereo class d amplifier, AC220V power supply,single unit	1
DI-97240	19' IP Amplifier, 240W,100V & 4-16 Ohm, with streaming and decoder, with 3 mic inputs and 2 line inputs	1000
WSK-523S	5.25' 2-Way Wall Mount Speaker,30-15-7.5-3.75W/8ohm&100V/70V,360 Degree Rotatable Bracket Included,ABS,Black	4000
VC-S120F	Volume Control, 120W, 11 Steps, ABS, with 24V relay	1000
