IP System for Airports
2025-01-22 10:55:46
Click：
“
System OverviewWith easy expansion, multi-level control, efficient management, p
”

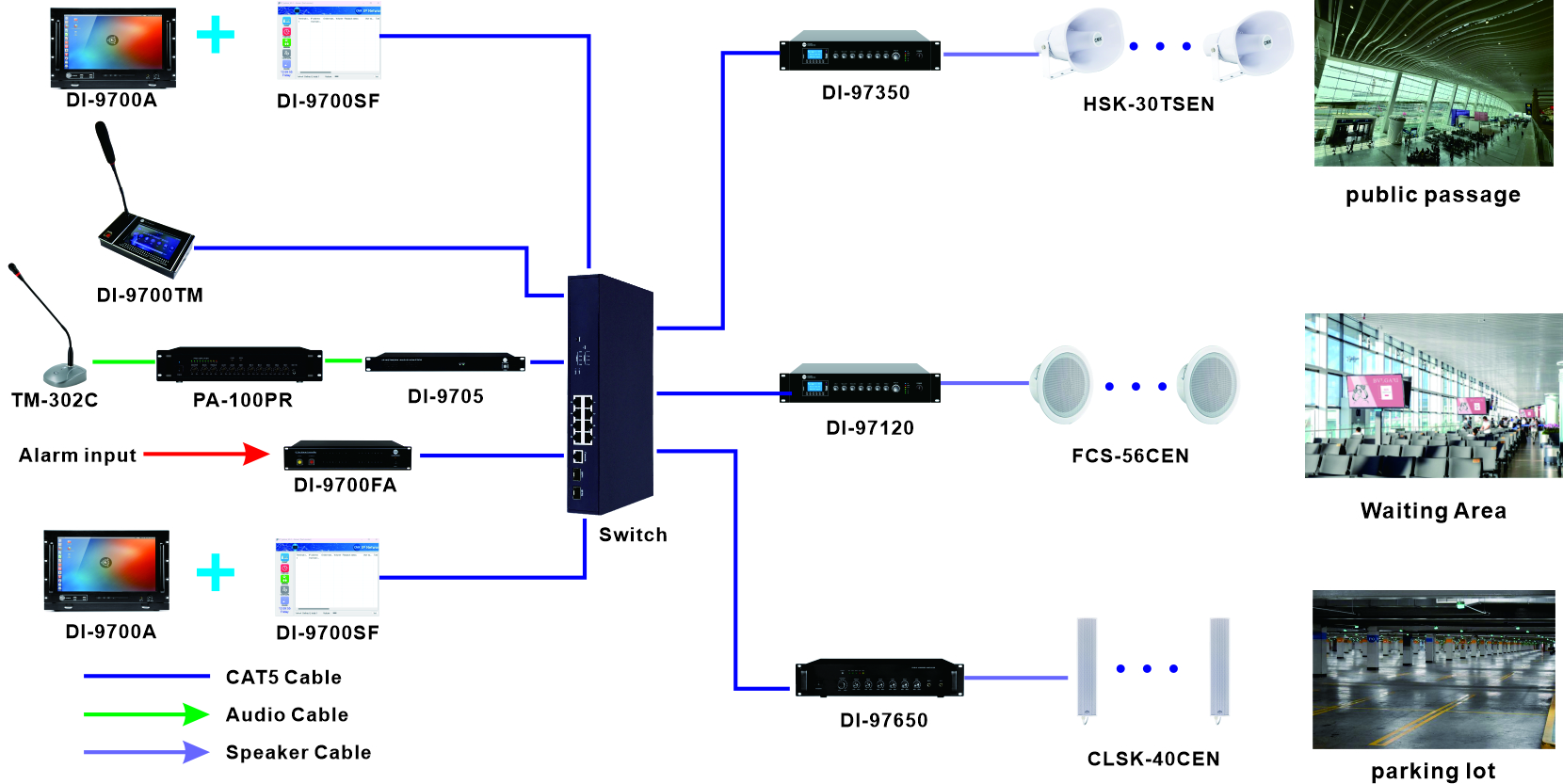

System Overview
With easy expansion, multi-level control, efficient management, powerful functionality, and a stable architecture, it offers a seamless and reliable communication solution for airports.
Features
- Multi-zone, Different Playback
Meets diverse usage needs for various scenarios.
- EN54-Compliant Speakers
High reliability, strong fire resistance, and superior sound quality.
- Flexible IP Architecture
Precise localization, efficient information transmission.
- Strong Expandability
Can be integrated with fire alarm systems for enhanced flexibility and control.
- Multi-level Control Management
Highly efficient and streamlined management.
Upgrade Your Airport Communication System with Confidence!
System BOQ
| Model | Feature | QTY |
DI-9700A | 15' IP Network PA System Controller, built-in large capacity SSD solid state drive,2 mic input,Aux in,1 trigger input,support dedicated Gigabit network transmission, transmission distance is not limited.Need to buy DI-9700SF and DI-9700UB together. | 2 |
| DI-9700SF | IP Network PA System Software, built-in server, built-in encoder, built-in media player, built-in status monitor, built-in weekly program timer, support English Windows 7,8,10. | 1 |
| DI-9700UB | Dongle for DI-9700SF | 1 |
| DI-9700SCF | Sub Remote Control Software | 1 |
| DI-9705 | IP Network Wireless Programmer，with IP audio encoder & IP audio decoder，with six programs buttons and six functional buttons on IR receiver | 1 |
| TM-303C | Condenser Microphone, Phantom power 48V & DC3V, balanced output, ABS base, XLR output | 1 |
| PA-100PR | 10 Input Pre-Amplifier, 5 mic, 3 aux and 2 EMC. | 28 |
| HSK-30TSEN | EN54-24 Outdoor Horn Speaker, 30-15-7.5W/100V+ 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, with EN54-24 certificate | 528 |
| FCS-56CEN | EN54-24 5' Ceiling Speaker with Fire Dome, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable, with EN54-24 certificate | 30 |
| CLSK-40CEN | EN54-24 certificated 3' 2-Way Outdoor Column Speaker, 40-20-10W/100V+8 Ohm, Aluminum, IP66, thermal fuse, fire-resistant cable and cable gland, ABS, with EN54-24 certificate | 10 |
| DI-97650 | 19' High Wattage IP Amplifier,650W,100V/70V&4-8 Ohm | 15 |
| DI-97120 | 19' IP Amplifier, 120W,100V & 4-16 Ohm, with streaming and decoder, with 3 mic inputs and 2 line inputs | 5 |
| DI-97240 | 19' IP Amplifier, 240W,100V & 4-16 Ohm, with streaming and decoder, with 3 mic inputs and 2 line inputs | 6 |
| DI-9700TM | IP Network Remote Microphone, with 7' touch screen,5W monitor speaker, USB input to broadcast pre-recorded voice message to different zoens, control up to 6,000 speaker zones | 1 |
