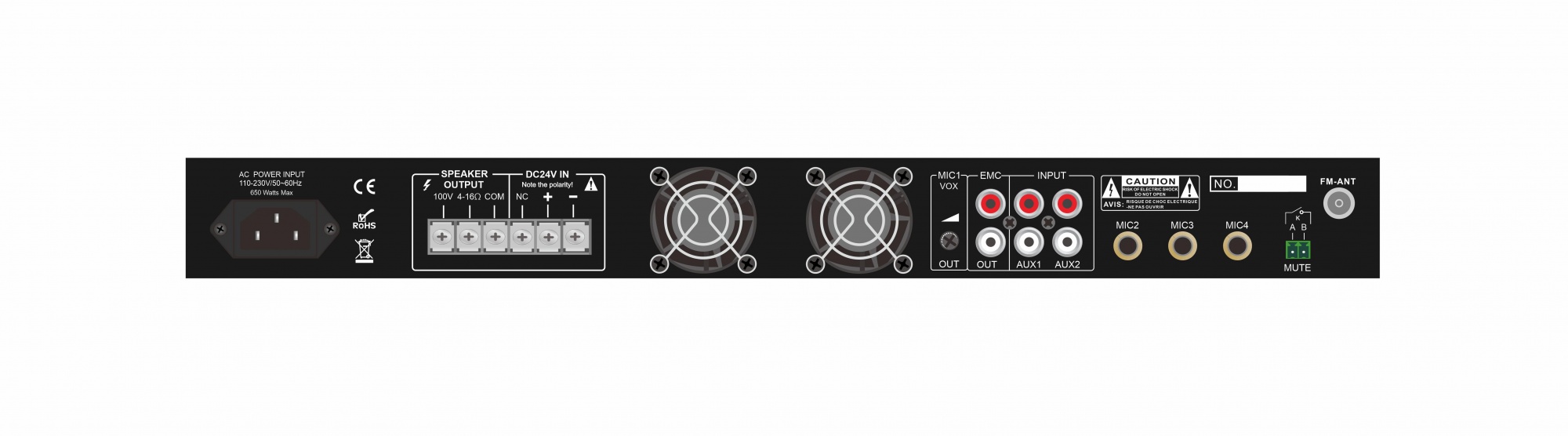

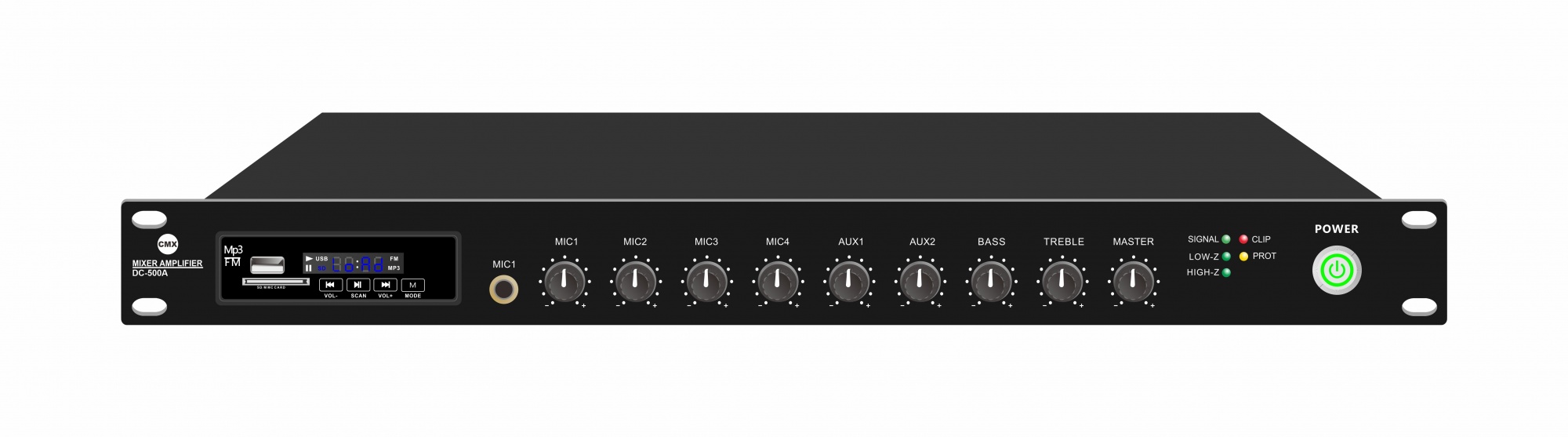

Mixer Amplifier with USB/SD/FM/Bluetooth DC-60A/DC-120A/DC-240A/DC-350A/DC-500A
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersCompact 1U size public address amplifier.Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth.Rate power output at 60W, 120W, 240W, 350W to 500W.Speaker output of 100V & 4 Ohm-16 Ohm.Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Features:
- Compact 1U size public address amplifier
- Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 60W, 120W, 240W, 350W to 500W
- Speaker output of 100V & 4 Ohm-16 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
- LED indicators for signal, Low-Z, High-Z, clip and protect
- Priority MUTE>MIC1>EMC>Others
- Mic1-4 switchable inputs unbalanced 6.3mm jack
- Aux 1-2 input of RCA input and one EMC output
- Volume control for Mic1-4, Aux1-2, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- AC110V-230V switchable power supply system and 24V DC in
Specification:
Model | DC-60A | DC-120A | DC-240A | DC-350A | DC-500A |
| Description | Mixer Amplifier with USB/SD/FM/Blue Tooth | ||||
| Rated Power Output | 60W | 120W | 240W | 350W | 500W |
| Speaker Outputs | 100V & 4 -16 Ohm | ||||
| Connector | MIC switchable input 1-4 unbalanced 6.3mm jack AUX 1-2 inputs by RCA; EMC output by RCA | ||||
| Priority | Mute>MIC1>EMC>others | ||||
| Input | MIC1-4: 25mV; AUX 1-2, 250mV, unbalanced RCA | ||||
| Output | 1000mV,1KΩ | ||||
| Frequency Response | 50Hz-16kHz(±3dB) | ||||
| S/N Ratio | Mic≥66dB; Aux≥80dB, | ||||
| THD | Less than 0.5% | ||||
| Protection | Short-circuit, clip, overload and high temp protection | ||||
| Power Consumption | 80W | 150W | 310W | 450W | 650W |
| Power Supply | AC230V; 50-60Hz | ||||
| Dimension | 484×370×45mm | ||||
| Weight | 4.5kg | 4.6kg | 4.7kg | 4.8kg | 5kg |
