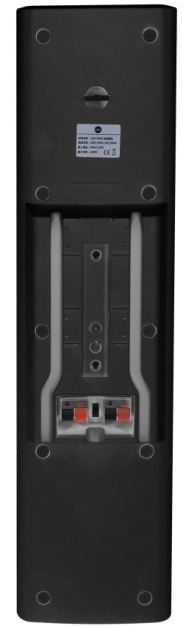

Line Array Column Speaker LAS-504C
Professional Sound Pro Louspeakers Professional Loudspeakers Installation Loudspeakers Column Line ArrayThe passive line array speaker LAS-504C is high-end passive line array loudspeaker, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The passive line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.
Professional Sound Pro Louspeakers Professional Loudspeakers Installation Loudspeakers Column Line Array
Feature:
- High-end line array column loudspeaker with a frequency response of 80Hz to 20kHz
- Compact passive line array column loudspeakers
- 4 x 5" full range speaker unit
- RMS power 80W in 100V, 100W in 8 ohm.
- Built-in 70V/100V transformer, plus 8 ohm direct capability.
- lImproved dispersion of horizontal 150°& vertical 20°.
- Design and elegance for easy integration even in the most demanding installations.
- Compact dimensions ensure listeners will focus on the sound and not the speaker.
- Weatherproof IP55 for indoor & outdoor application.
- Swivel (pan) / tilt wall bracket included.
- Fiberglass reinforced ABS cabinet in black, painted aluminum grille
Specification:
Model | LAS-504C |
Description | 5” Passive Line Array Loudspeaker System |
Driver | 4X5" full range speaker driver |
Input | 80W ( 125Ω) in 100V , 100W in 8Ω |
Dispersion | Horizontal 150° and Vertical 20° |
Power Capacity | 150W (600W peak), 2 hrs 100 W (400W peak), 100 hrs |
Frequency Response | 80Hz～20KHz |
Max SPL³ | Speech mode: 115 dB cont ave (121 peak) Music mode: 111 dB cont ave (117 peak) |
Sensitivity @ 1W/1m | 95±1dB |
Finish | Fiberglass reinforced ABS cabinet, painted aluminum grille |
Outdoor Capability | IP55 |
Mounting | Included swivel (pan) / tilt wall bracket |
Dimension | 160mm x180mm x600mm; |
Weight | 5.7Kg |
Frequency:
Installation:
