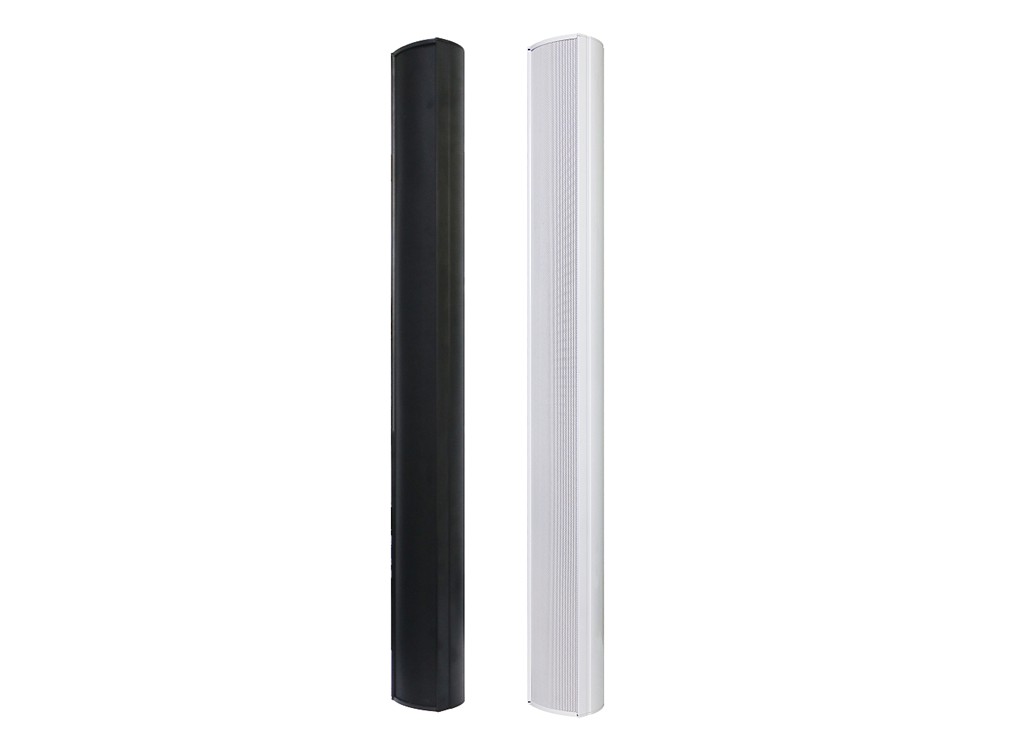

LAS-H309 LAS-H309W Line Array Column Loudspeakers

Outdoor Speaker Weatherproof Speaker IP66 Waterproof Outdoor Column Speakers Column Line Array

LAS-H309 & LAS-H309W is 3 inch passive line array speaker system of multiple driver units up to 100W/200W output, IP66 indoor & outdoor paging and BGM applications.

Outdoor Speaker Weatherproof Speaker IP66 Waterproof Outdoor Column Speakers Column Line Array

Download Annex

Product Detail

Description:

LAS-H309 & LAS-H309W Line Array Column Speaker is true line array technology, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The column system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.

Feature:

High-end line array column loudspeaker with a frequency response of 100Hz to 20kHz
9 x 3' full range speakers
2 x Euroblock connectors
RMS power 100W & Max 200W
Improved dispersion of horizontal 150 ° & vertical 15°
Design and elegance for easy integration even in the most demanding installations
Compact dimensions ensure listeners will focus on the sound and not the speaker
Weatherproof IP66 for indoor & outdoor applications
Horizontal and vertical rotatable mounting bracket included

Specification:

Model	LAS-H309	LAS-H309W
Description	Line Array Column Loudspeaker
Finish	Black	White
RMS Power	100 Watts/Max 200 Watts
Nominal Impedance	8 Ohms
Frequency Response	100Hz~20K Hz (±3dB)
Sensitivity	92dB 1W/1m
MAX SPL	120dB
Speaker	9 x 3' full range speakers
IP Rate	IP66
Horizontal Dispersion	150 °
Vertical Dispersion	15 °
Material	Aluminum alloy enclosure and Aluminum grill
Dimension	97x86x942mm
Weight	6.0kg
