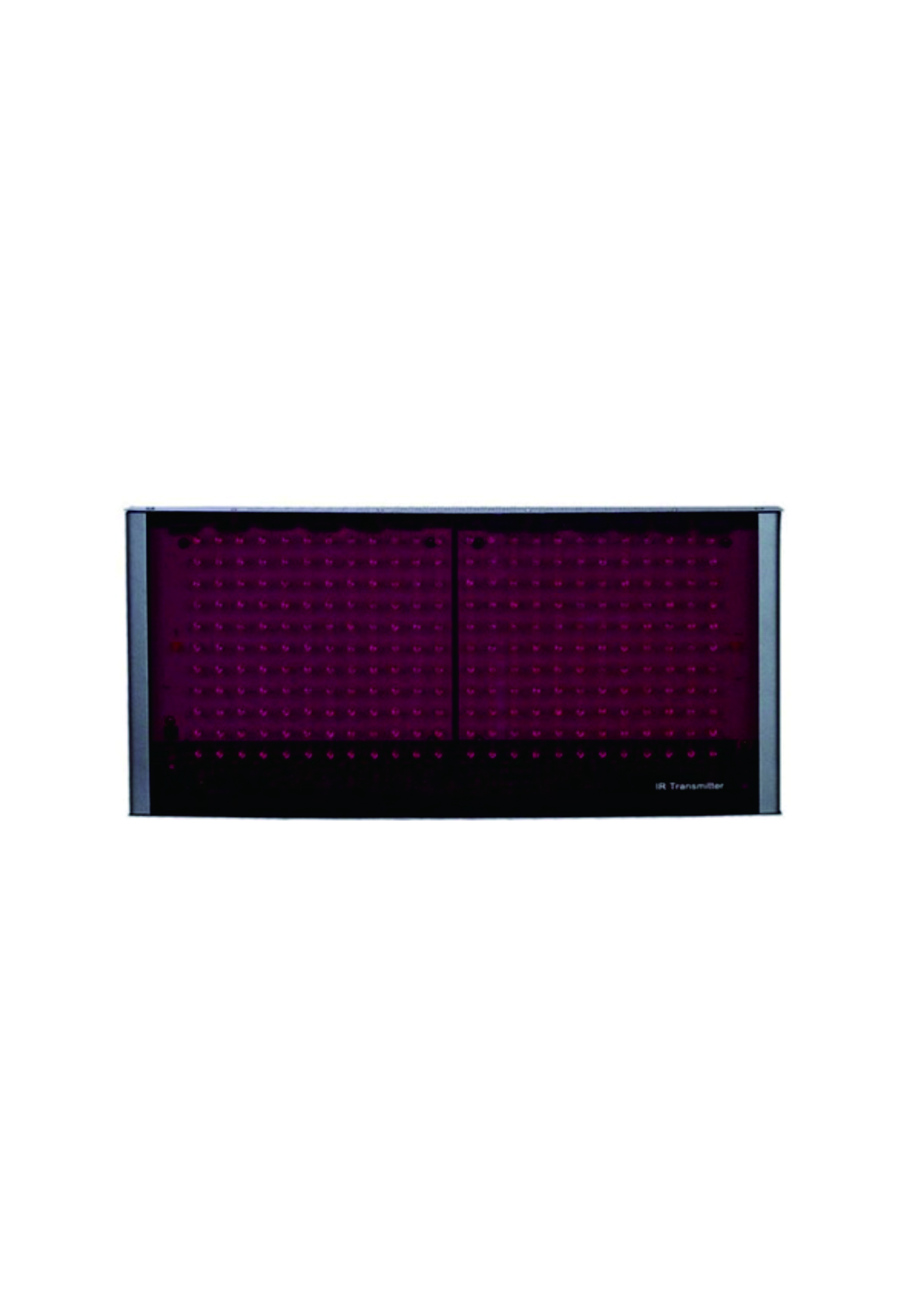

IR Wireless 12 Channel Radiator TS-701
Conference System Digital Conferencing SolutionsMain equipment of language distribution and simultaneous interpretation system.12 languages (1 ground and 11 international) simultaneous translation and distribution system.Ideal for international summit meeting, religious meeting and hotel rental use.
Conference System Digital Conferencing Solutions
Features:
- Main equipment of language distribution and simultaneous interpretation system.
- 12 languages (1 ground and 11 international) simultaneous translation and distribution system.
- Ideal for international summit meeting, religious meeting and hotel rental use.
- This transmitter will receive 12 different voice inputs then generate the infrared wireless signal to be radiated by the IR radiator, while the attendant with IR receiver could receive different translated language by selecting different receiving channels.
- Stable strong signal for accurate wireless infrared transmission system to prevent interference.
- One radiator capable of radiate and distribute 12 languages to be received by the IR receiver.
- Rated power output of 30W.
- Coverage of 30 square meters for room ceiling less than 8 meters.
- Big size room could cascaded several radiator together.
- Automatically power standby after 5 seconds without receiving input.
- Automatically power on immediately at sight of any signal input.
- Automatically control the gain output to ensure the maximum signal radiation.
- Versatile mounting way by ceiling, surface mount, wall mount or floor stand installation.
- Daisy chain connection for easier expand and cable saving.
- Wider radiation angles ±22℃ at half intensity to ensure signal strength in every corner.
- Rotatable mounting bracket is supplied.
Specifications:
| Model | TS-701 |
| Description | IR Wireless 12 Channel Radiator |
| Frequency Band | 1.7-4.0MHz |
| Rated Power Output | 100-14KHz |
| Coverage | 30 SQ meters the roof is less than 8 meters high |
| Radiation Angle | ±22℃ at half intensity |
| RF Output Level | 700mV |
| RF Output Impedance | 50Ω |
| RF Input Level | 100-2KV |
| Power Consumption | 55W and 8W of standby |
| Power Supply | AC220V or 115V, 50-60Hz |
| Dimension | 440(W)×232(D)×75(H)mm |
| Weight | 3.6kg |
