IP POE Wall Mount Speaker DI-97523P
IP Speaker IP Audio SolutionsThe IP POE Powered Wall Mount Speaker is the latest in IP technology. This Power over Ethernet (Compatible with IEEE 802.3at) POE loudspeaker featured of network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The POE loudspeaker is capable of broadcasting audio through multicast. The POE powered wall mount speaker enable to be built up an IP based soun
IP Speaker IP Audio Solutions
Features:
- All in one outdoor IP speaker includes IP streaming, IP decoder, amplifier and speaker
- IP POE Wall Mount Speaker support POE network or non-POE network system.
- POE IP PA system with background music, paging system and voice alarm system
- Minimum cable connection over existing LAN/WAN/Internet system
- Huge system capacity up to 6,000 zones
- Compatible with IEEE 802.3at POE standards
- IP based POE powered 30 Watt wall mount speaker
- Wide rang of frequency for music and speech
- Long distance clear music and speech restoration up to 5kms
- IP66 waterproof and dust proof rate for extreme severe outdoor working environment
- Built-in IP streaming audio decoder, class-D amplifier and speaker
- Single network cable for control, signal and power supply
- Same POE speakers enable to be several group or zone defined
- Different music or voice message simultaneously broadcast through different POE speakers
- Paging prioritization and background music system
- Network adjustable speaker volume
- 12V DC power supply input as standby use
- Ideal for supermarket,shopping mall,hotel,school applications.
Description:
The IP POE Powered Wall Mount Speaker is the latest in IP technology. This Power over Ethernet (Compatible with IEEE 802.3at) POE loudspeaker featured of network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The POE loudspeaker is capable of broadcasting audio through multicast. The POE powered wall mount speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply. The POE powered loudspeaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External 12V DC connector is also equipped in this POE speaker for standby power supply use. The POE loudspeaker is designed with 5” wall mount speaker with 30W class-D amplifier. The remote paging microphone DI-9700TM enables to make announcement over individual speaker, group speakers over network.
Specification:
Model | DI-97523P |
| Description | IP POE Wall Mount Speaker |
| Power Output | 30W Watt (1KHz@-3dB) |
| Built-in Amplifier | Class-D technology, 30 Watts, 4 Ohm |
| Network I/F | 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3/MP2 |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 97dB/1W/1M |
| S/N Ratio | ≧85dB |
| THD | ≦0.1% |
| Frequency Response | 60-20KHz |
| Connector | One RJ45 port for existing LAN/WAN & internet One DC12V battery backup input |
| Power Input | POE 802.3at & DC 12V |
| Operation Temp | -30℃ to +55℃ |
| Dimension | 230×160×135mm |
| Bracket | Stainless mounting U-shaped bracket is supplied |
| Material | ABS enclosure and waterproof finish metal grille in black |
| Weight | 2.5kg |

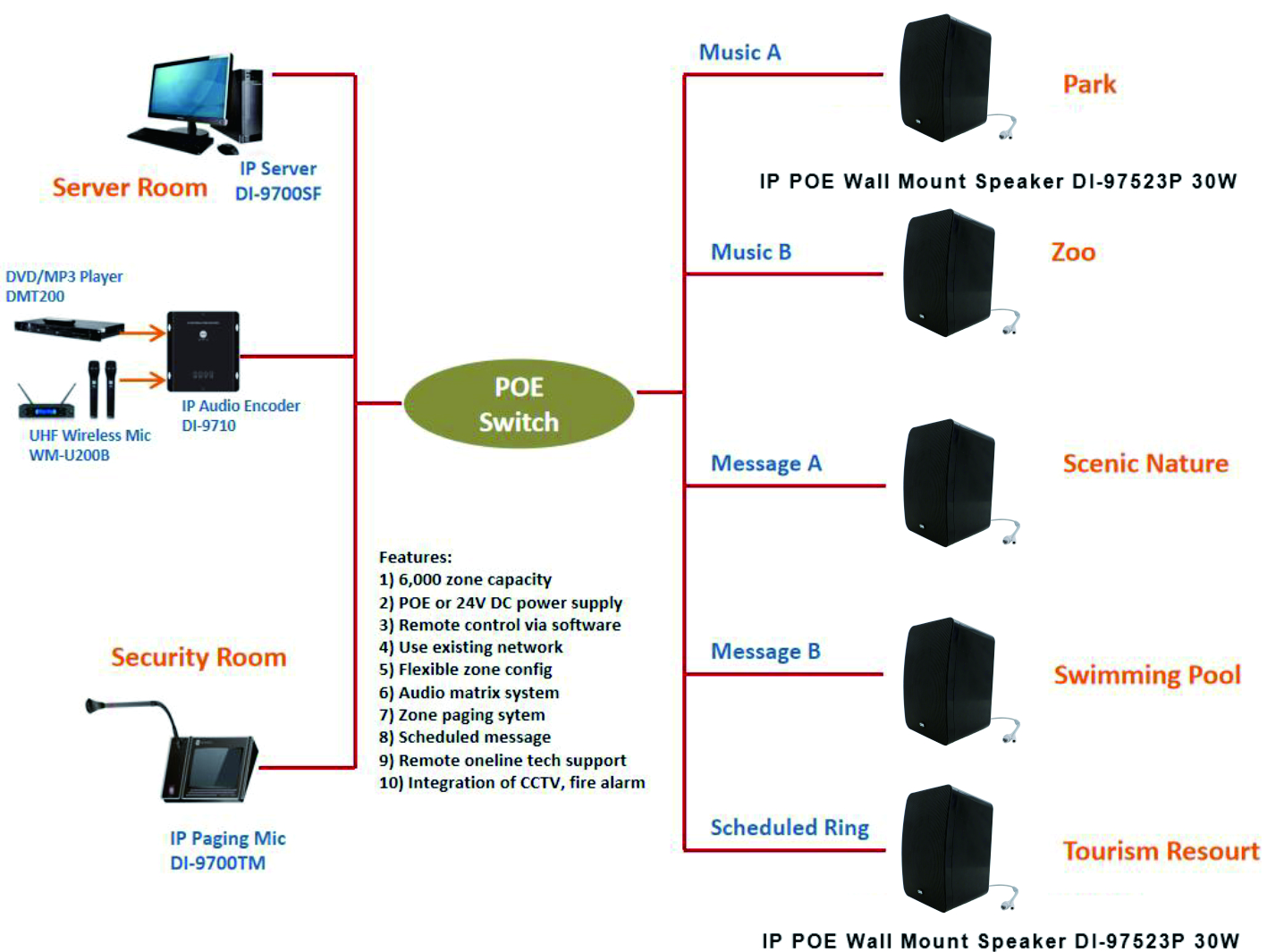

Connection Diagram:
