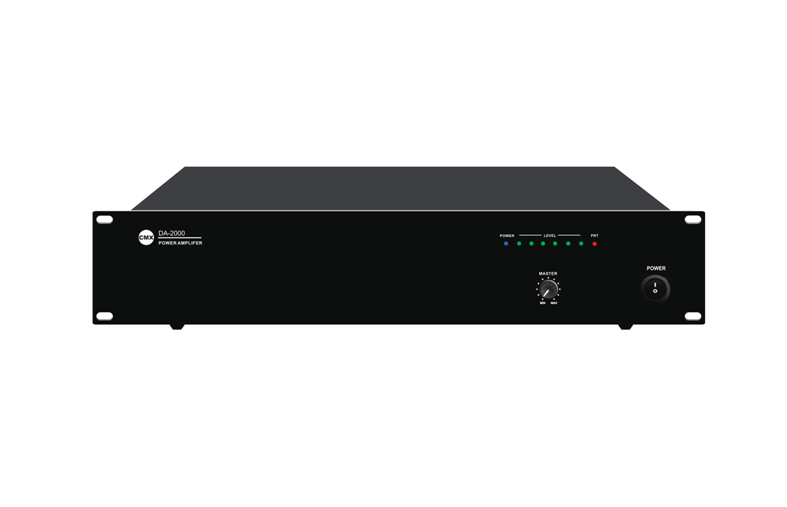

High Wattage PA Power Amplifier DA-1000 DA-1500 DA-2000
PA System Commercial Audio PA Amplifiers Power AmplifierHigh wattage PA power amplifier DA-1000, DA-1500 & DA-2000 are used for public address system to power 100V/70V PA loudspeakers or commercial loudspeakers. They are of rated power at 1000W, 1500W & 2000W, which support 100V/70V & 8 Ohm & 4 Ohm, 2U height, 19 inch rack mount and 85% efficiency.
PA System Commercial Audio PA Amplifiers Power Amplifier
Description:
The DA-1000 & DA-1500 & DA-2000 High Wattage PA Power Amplifier are of switching power supply Class-D technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span. The DA-1000 & DA-1500 power amplifiers are of rated power output at 1000W & 1500W & 2000W, so it could be used as digital public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V/70V & low impedance 4-8 Ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs. There are one balanced inputs by XLR connector with volume control on front panel. Visual working status indicators include power, signal & protection for easy amplifier working status monitoring. With complete protection includes short circuit, overload & high temp etc.
Features:
- Premier sound performance and extreme reliable Class-H power amplifier
- Switch power supply of green star technology
- Efficiency up to 85% or higher ensure minimum power consumption
- With output transformer for high voltage protection and premier sound quality
- 2U height for less rack space & less heat generation
- Single channel power amplifier into 19” rack size
- Rated power output at 1000W & 1500W & 2000W
- Speaker outputs 4Ω-8Ω & 100V/70V
- Balanced line input by XLR & Link out
- With volume control on front panel
- Separate indicators for power, signal & protection
- Complete protection includes short circuit, overload, high temp etc
- Suitable for giant quantity PA loudspeakers connection like playground, stadium, park & airport
Specification:
Model | DA-1000 | DA-1500 | DA-2000 |
Description | High Wattage PA Power Amplifier | ||
Rated Power Output | 1000W | 1500W | 2000W |
Speaker Output | 4-8Ω & 100V/70V | ||
Frequency Response | 40Hz-16KHz | ||
Input | 1V, 1.2KΩ(Bal)/600Ω(balanced) | ||
Input Impedance | 10KΩ | ||
THD | <0.3% | ||
S/N Ratio | >90dB | ||
Power Consumption | 1300W | 2000W | 2500W |
Power Supply | AC 220V-240V, 50-60Hz | ||
Dimension | 484x375x88mm | ||
Weight | 9.5kg | 10.0kg | 10.5kg |
