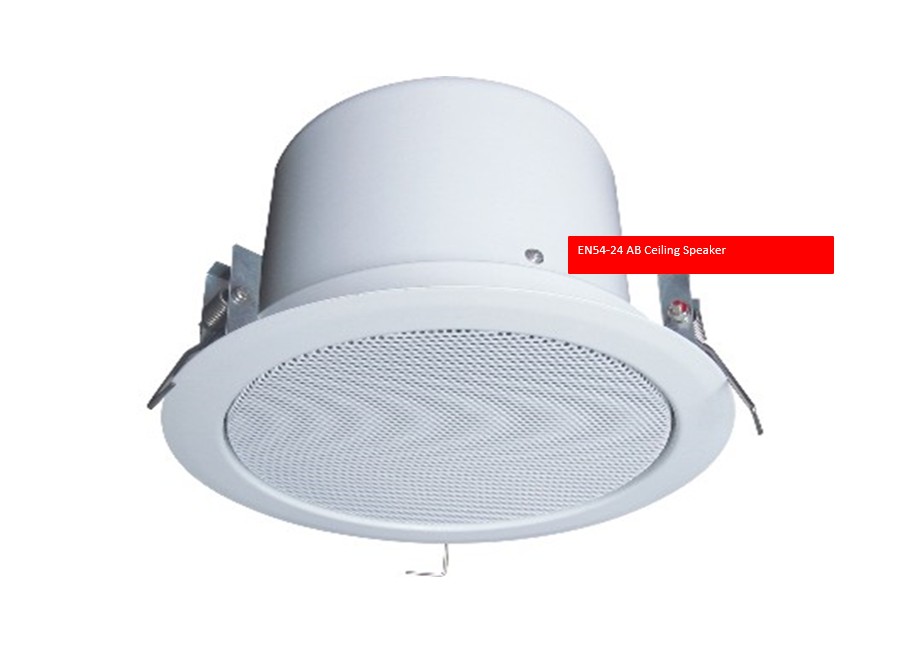

FCS-66ABEN EN54-24 AB Line Ceiling Speaker

Installation Loudspeakers 100 Volt Speakers Ceiling Speaker EN54 Certified Speakers EN54-24 Loudspeakers

FCS-66ABEN is EN54-24 AB Line ceiling speaker with transformer, which is designed of 2×3.5 inch dual ceiling speaker for voice alarm & evacuation system use. The AB line ceiling speaker power output is 2x6/3/1,5/0.75W, it is mainly used in case of a failure of one speaker line the redundancy of the speakers.

Installation Loudspeakers 100 Volt Speakers Ceiling Speaker EN54 Certified Speakers EN54-24 Loudspeakers

Feature:

  • EN54-24 AB Line ceiling speaker with transformer.
  • 2×3.5” dual ceiling speaker for voice alarm & evacuation system use.
  • Power output 2x6/3/1,5/0.75W
  • In case of a failure of one speaker line the redundancy of the speakers.
  • The powder coated metal similar with fire dome in RAL 9010.
  • 2-pin ceramic connector block, thermal fuses are provided.
  • Quick and easy mounting with spring clamps and short tension distance.



Specification:

Model

FCS-66ABEN

Description

EN54-24 AB Line Ceiling Speaker

Operation

Double Operation

Power Output

2x 6/3/1.5/0.75 W

Frequency Response

120 - 18,500 Hz

SPL (1W/1m)

104.8 dB

Sensitivity (1W/4m)

80.8 dB

Ceiling Cutout

Ø220mm

Connector

2-pole ceramic terminal

Color

white RAL 9010

Dimensions

Ø240 x 100 mm

Weight

1.8kg


FCS-66ABEN EN54-24 AB Line Ceiling Speaker
FCS-66ABEN is EN54-24 AB Line ceiling speaker with transformer, which is designed of 2×3.5 inch dual ceiling speaker for voice alarm & evacuation system use. The AB line ceiling speaker power output is 2x6/3/1,5/0.75W, it is mainly used in case of a failure of one speaker line the redundancy of the speakers.
