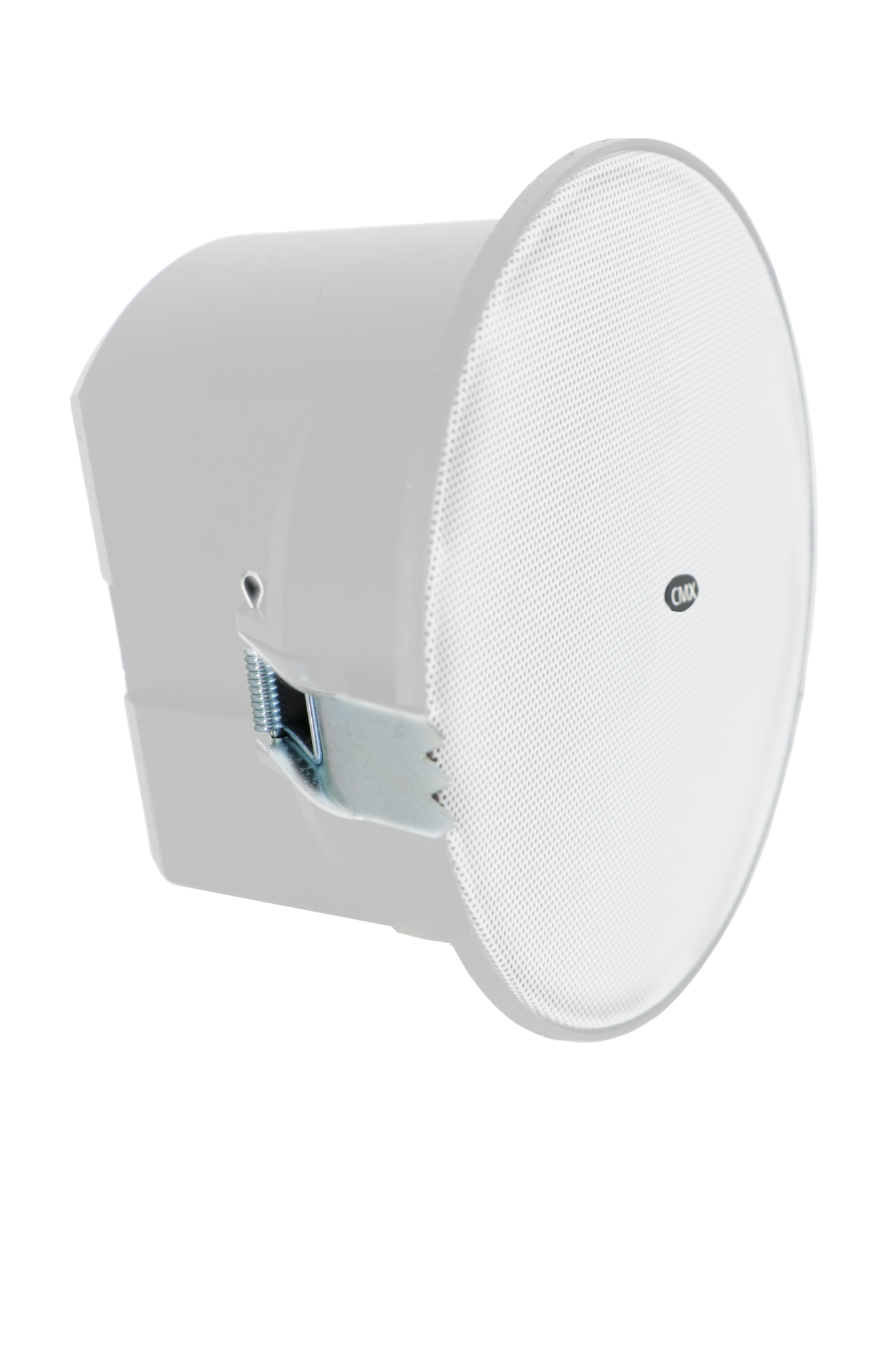

EN54-24 6” Ceiling Speaker CSK-620HAEN
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers ABS Speaker 2-Way Speakers EN54-24 LoudspeakersEN54-24 6” Ceiling Speaker CSK-620HAEN，Built-in 100v/70v transformer for PA & VA system，Rated power output 20 /10 /5 /2.5 W at 100V，6" full range fire resistant finish and rustproof speaker unit
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers ABS Speaker 2-Way Speakers EN54-24 Loudspeakers
Features:
- Compliant with the EN54-24 standards
- Built-in 100v/70v transformer for PA & VA system
- Commercial fireproof ceiling speaker with transformer
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 20 /10 /5 /2.5 W at 100V
- 6' full range fire resistant finish and rustproof speaker unit
- V0 fire resistant ABS enclosure,back box and metal grille in white
Specifications:
| Model | CSK-620HAEN |
| Description | EN54-24 6” Ceiling Speaker |
| Power Taps 100V | 2.5W-5W-10W-20W |
| Sensitivity 1W/1m | 93dB |
| Frequency Response | 80-15KHz |
| Speaker Driver | 6” full range fire resistant finish and rustproof speaker unit |
| Finish | V0 fire resistant ABS enclosure,back box and metal grille in white |
| Mounting | WayIn-ceiling spring clip quick installation |
| Cutout Size | Ø170mm |
| Dimensions | Ø186×110mm |
| Weight | 520g |

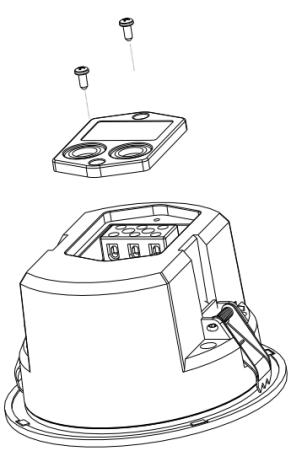

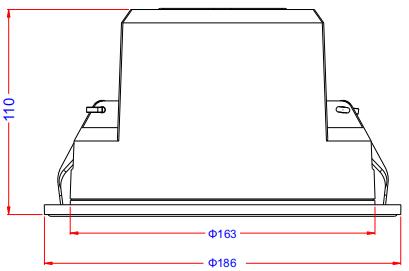

Installation & Wiring diagram:

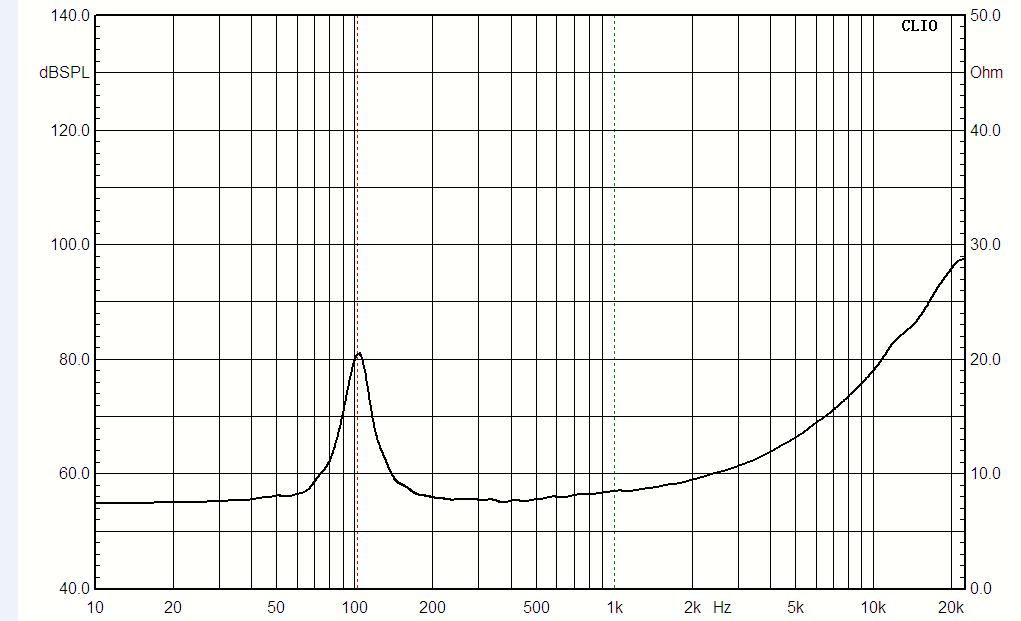

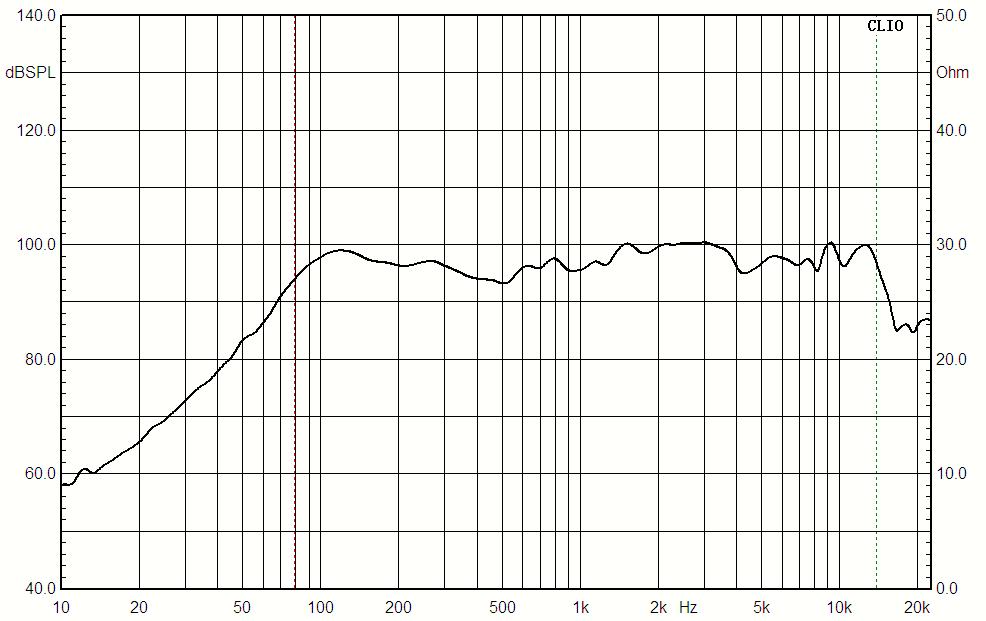

Frequency Response and Impedance Diagram:
