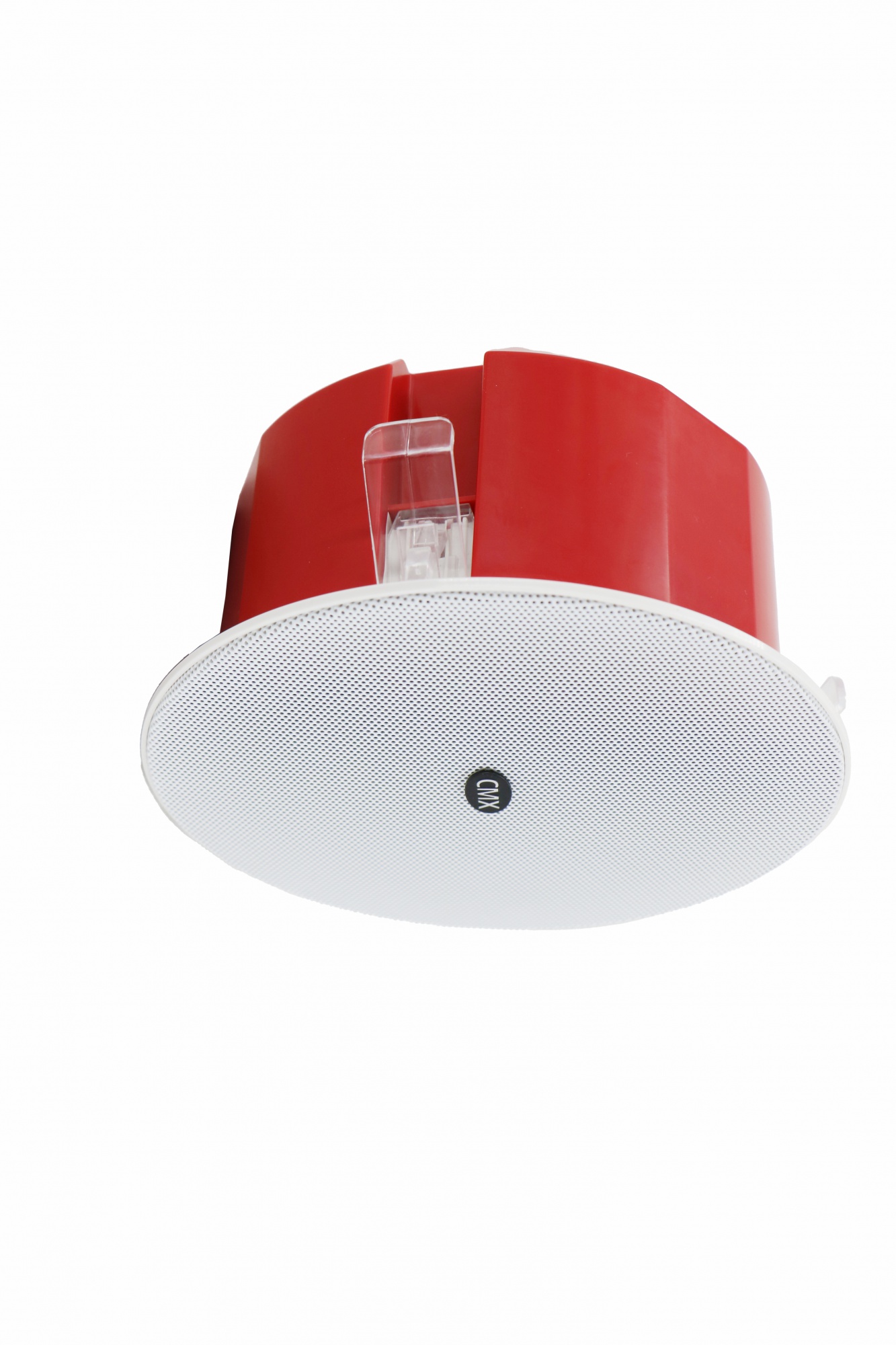

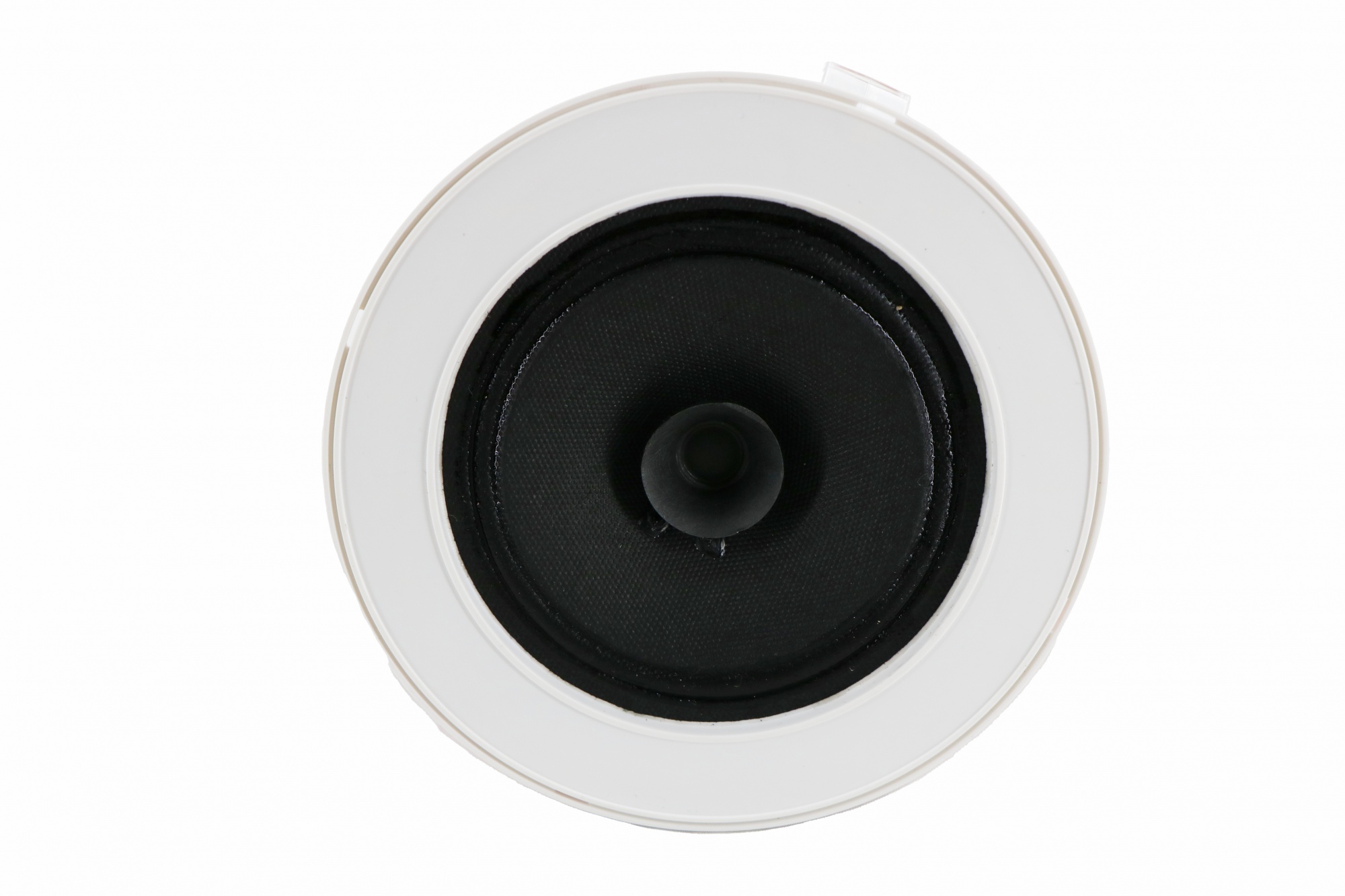

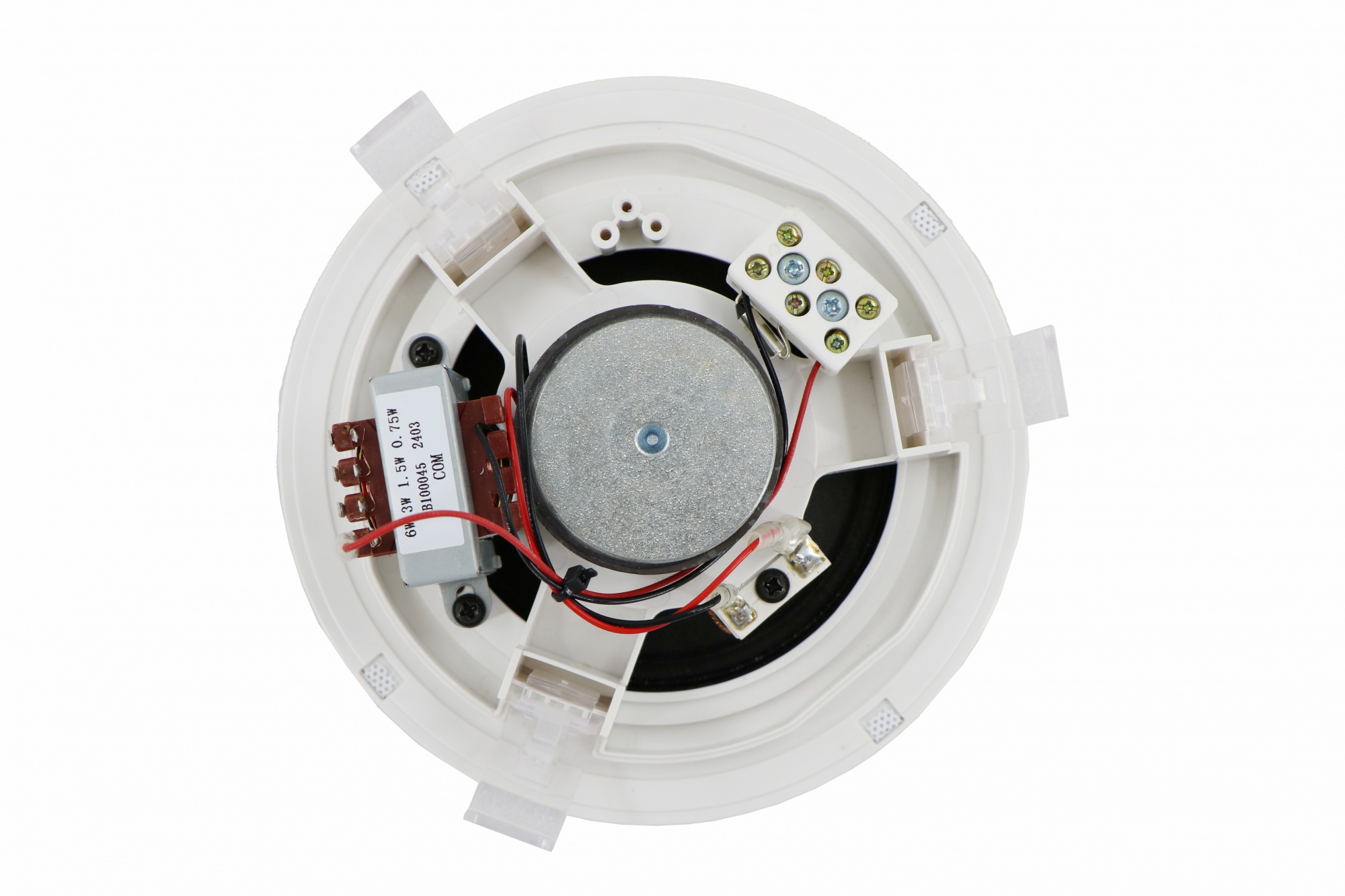

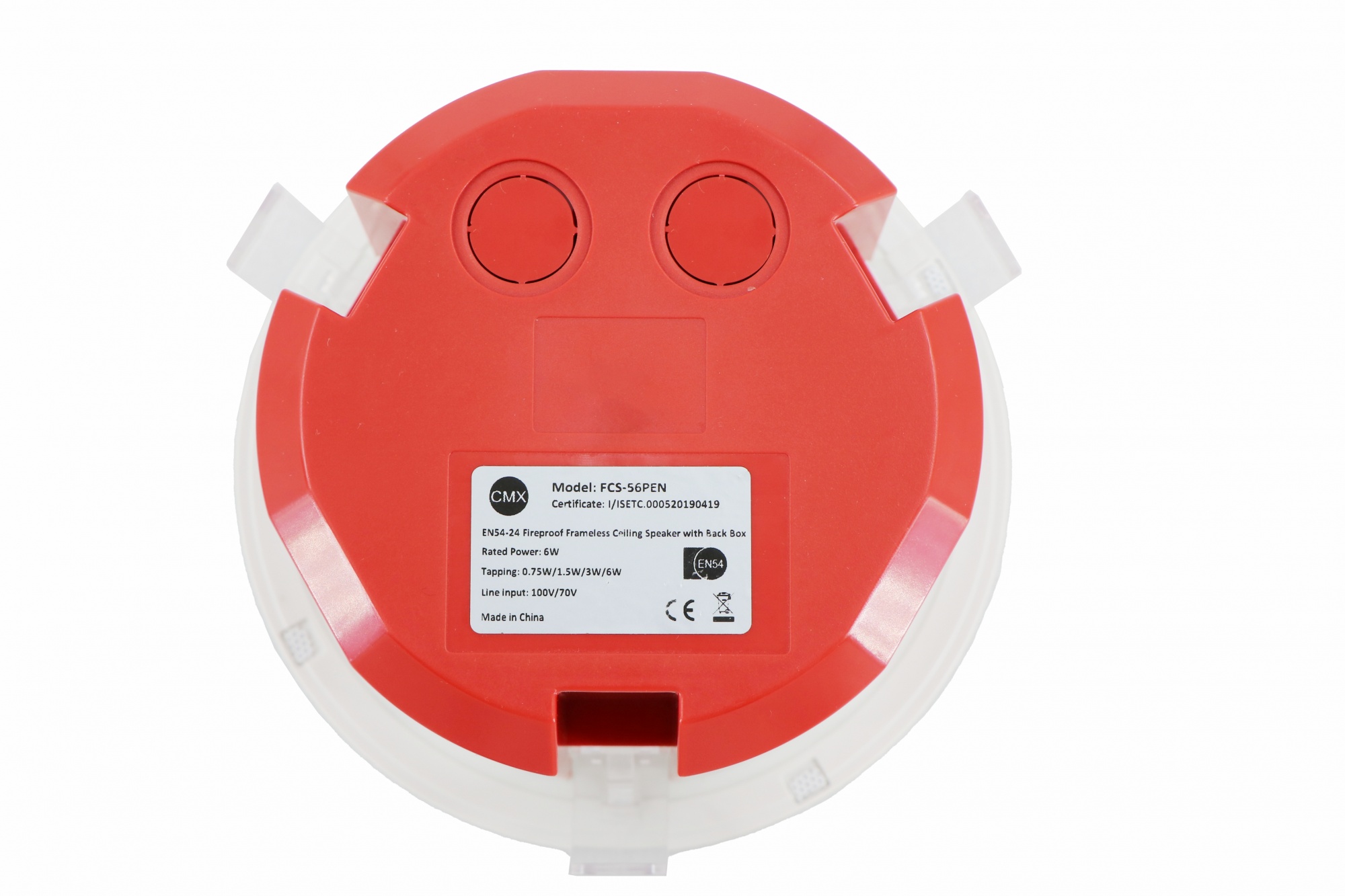

EN54-24 5” Ceiling Speaker FCS-56PCEN 6W-3W-1.5W-0.75 W at 100V
PA Speakers 100V 70V Speakers BGM Speakers Ceiling Speaker ABS Speaker EN54 Certified Speakers EN54-24 LoudspeakersFCS-56PCEN is EN54-24 5” Ceiling Speaker ,one quick mount ceiling speaker, 5" 6W/3W with 100V transformer, ideal for background music system and PA system use.
PA Speakers 100V 70V Speakers BGM Speakers Ceiling Speaker ABS Speaker EN54 Certified Speakers EN54-24 Loudspeakers
Features:
- Compliant with the EN54-24 standards
- Built-in 100v/70v transformer for PA & VA system
- Commercial fireproof ceiling speaker with transformer
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 6 /3 /1.5 /0.75 W at 100V
- 5' dual cone fire resistant finish and rustproof speaker unit
- V0 fire resistant ABS enclosure,back box and metal grille in white
Specifications:
Model | FCS-56PCEN |
| Description | EN54-24 5” Ceiling Speaker |
| Power Taps 100V | 0.75W-1.5W-3W-6W |
| Sensitivity 1W/1m | 92±2dB and Max 98±2dB |
| Frequency Response | 105Hz-15KHz |
| Speaker Driver | 5” dual cone fire resistant finish and rustproof speaker unit |
| Finish | V0 fire resistant ABS enclosure,back box and metal grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø140mm |
| Dimensions | Ø165×89mm |
| Weight | 0.6kg |

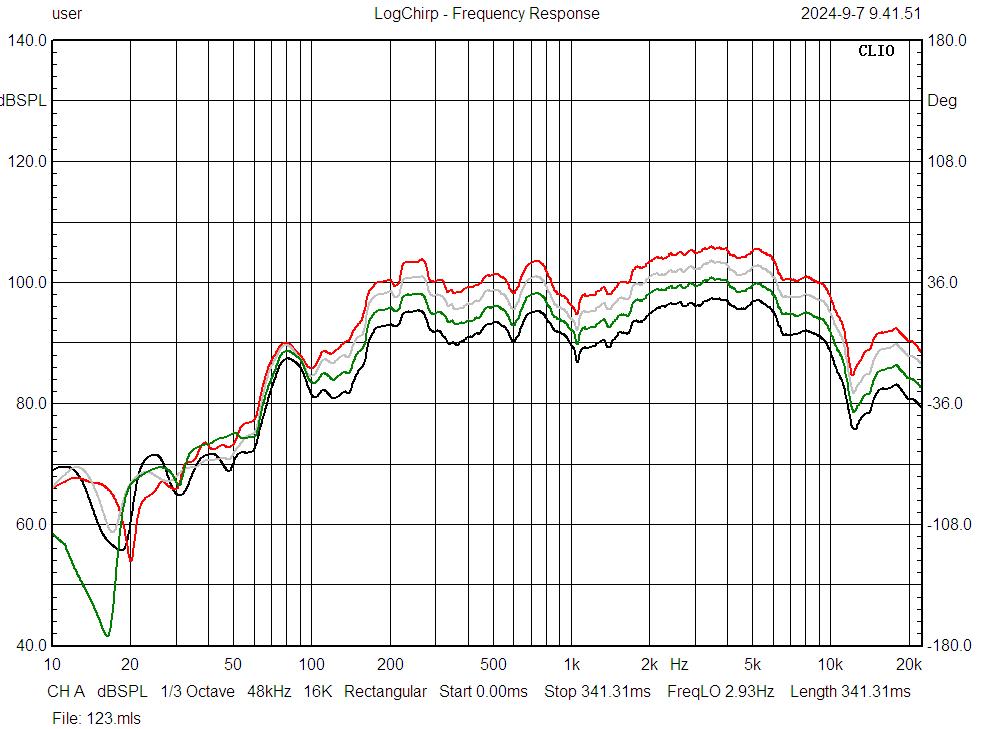

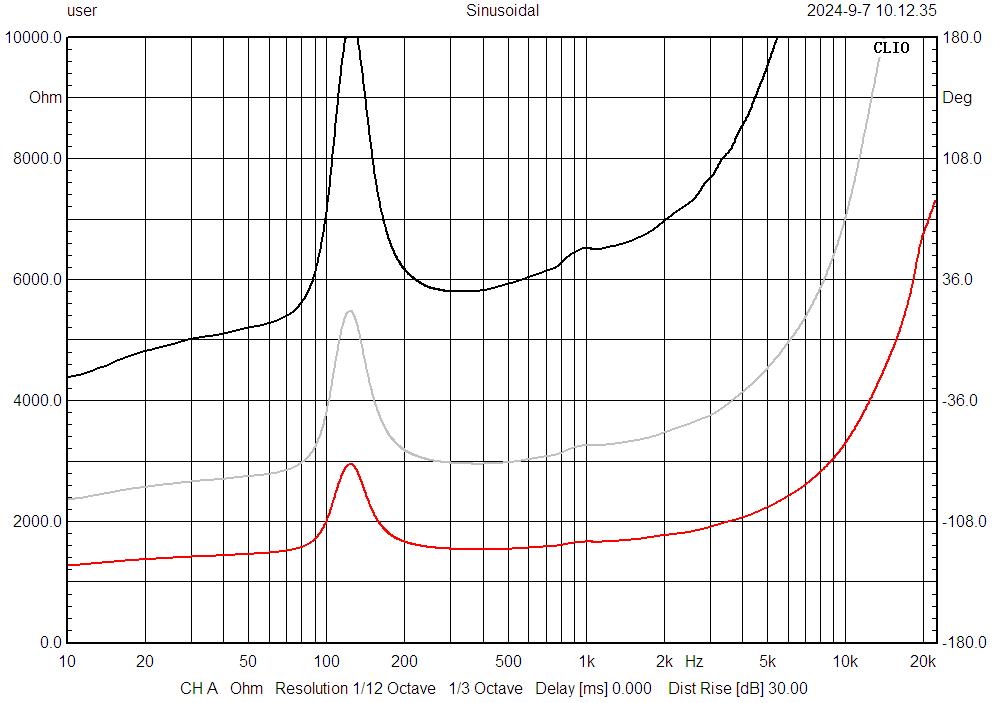

Frequency Response and Impedance Diagram:
