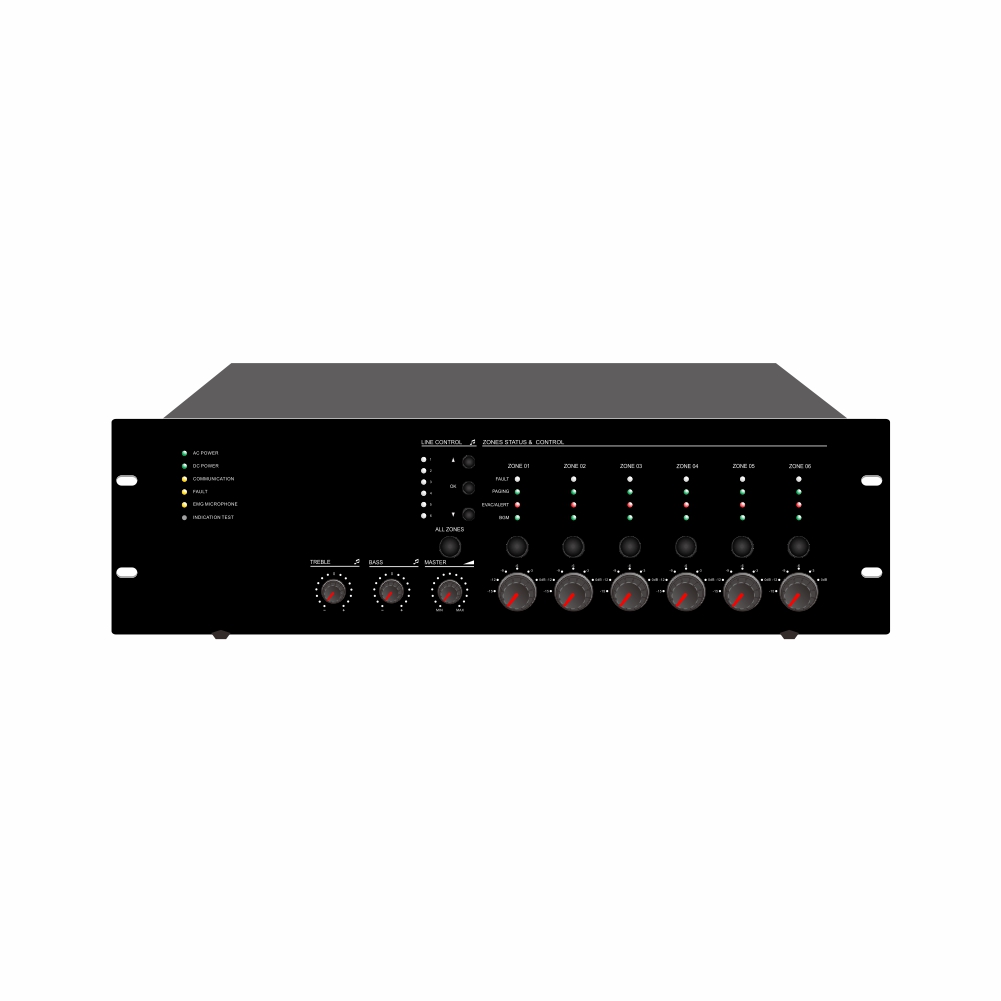

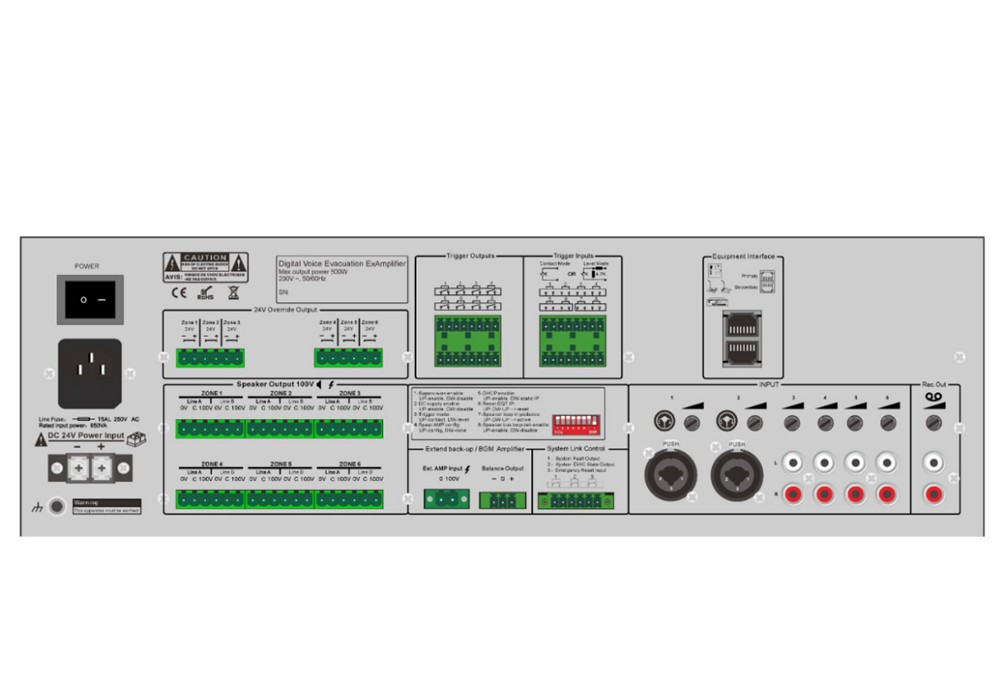

EN54-16 Voice Evacuation Router EVAC-500RT

EVAC-500RT is EN54-16 certified 6 zone voice alarm router, which is used for zone expansion by working with voice alarm controller EVAC-500. The voice alarm router is built-in 500W amplifier, voice alarm slave controller, 6 zone paging controller, speaker line monitoring and amplifier changeover.

Download Annex

Description:

The EVAC-500RT voice evacuation router is one of the most important equipments of EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation router with same features of voice evacuation controller EVAC-500 which includes zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface, while all main signals are feed from the master controller. The voice evacuation router is innovated with most advanced DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation. Each router built-in 6 zone speaker outputs, rated power output at 500W. The voice evacuation router shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router. The voice evacuation system is strictly follow the Construction products RegulationEUNo 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.



Feature:

EN54-16 certification No. I/ISEETC. 000620190305.

Digital voice evacuation system all in one router.

Integration of voice evacuation router, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface.

Same features of master controller EVAC-500 while all main signals are feed from the master controller

Auto broadcasting EVAC and alert 256 voice messages to pre-set zones.

AB speaker line surveillance to avoid any speaker line failure.

Back-up power amplifier management.

Up to 120 zones by cascaded with master controller EVAC-500.

Redundant network cabling backup through CAT6 cable loop connection.

8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs.

Logs and fault events auto recording.



Specification:

Model

EVAC-500RT

Description

6 Zone Voice Evacuation Router

Rated Power Output

500W

Fireman Microphone

5Mv, 600Ω

Frequency Response

80Hz~20kHz

THD

1% at RMS,1KHz

S/N Ratio

>70dB

Speaker Output

100V AB 6 zone speaker outputs

REC Output

200mV

Control Input & Output

8 control inputs: Max 3.3V (voltage mode) or 0V closed contact;

8 control outputs: 0V closed contact;

1 fault, 1 reset & 1 EVAC relay outs

Event Record

HEX format, Hard Flash memory, events up to 1000 records, 10 years valid

Operation Temp

Operation Temp: +5 ~ +40; Store Temp: -20 ~ +70; Humidity: <95%

Power Consumption

650W

Power Supply

AC230V or 115V & 24V DC inputs, 50-60HZ

AC Fuse

250V/6.3A, slow type and restorable fuse

Dimension

484×132×405mm

Weight

9kg

EN54-16 Voice Evacuation Router EVAC-500RT
EVAC-500RT is EN54-16 certified 6 zone voice alarm router, which is used for zone expansion by working with voice alarm controller EVAC-500. The voice alarm router is built-in 500W amplifier, voice alarm slave controller, 6 zone paging controller, speaker line monitoring and amplifier changeover.
