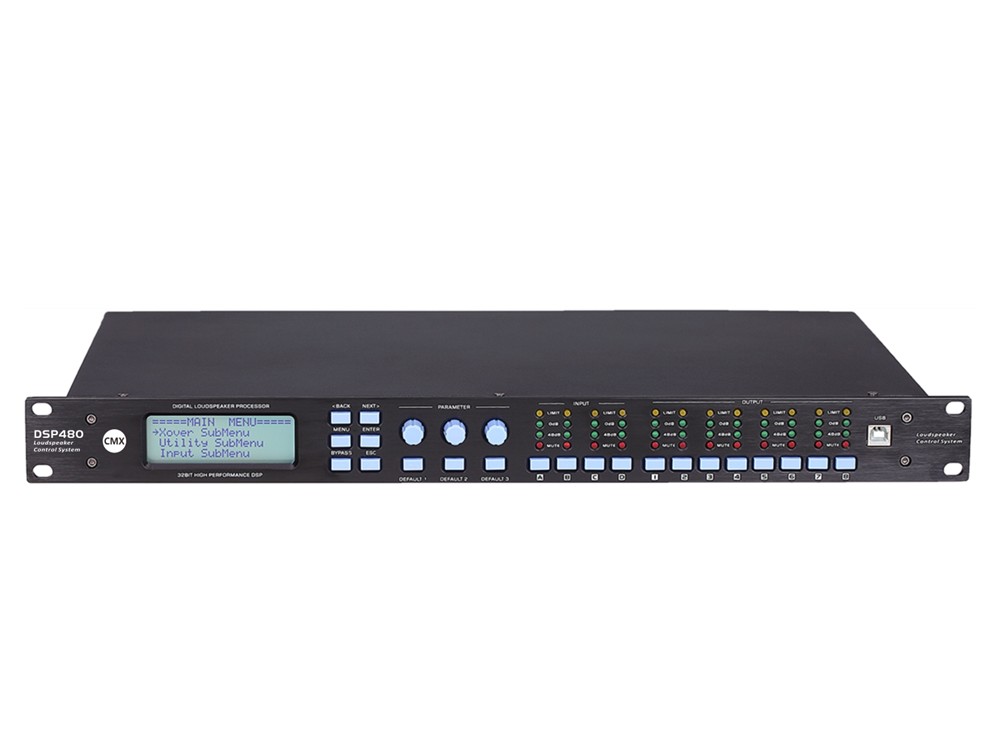

DSP Processor DSP240 DSP360 DSP480
DSP Processor Digtal Signal ProcessorDSP480 is 4 inputs 8 outputs DSP digital signal processor with software to offer all in one high standard professional audio solution.
DSP Processor Digtal Signal Processor
Feature:
- Full digital audio processor for extreme high quality sound performance.
- Applications for auditoriums, houses of worship, theaters, convention centers, stadium and stage monitoring system.
- 4 inputs and 8 outputs with audio matrix system
- 96k Hz sampling rate 24 bit high performance AD/DA converters.
- 40 bit floating point super efficiency DSP chip.
- 8 bands parametric equalization per input channel
- 9 bands parametric equalization per output channel
- Each band can be switched to bell, Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters.
- Crossover filters with slopes from 12dB/Octave up to 48dB/Octave including Butterworth, Bessel, Linkwitz Riley.
- Each output features a dynamic range controller composed of a peak limiter.
- Adjustable delay time up to 1,000 ms for every channel.
- Convenient use of function buttons on either front panel or the included English software interface displays.
- 24 pre sets can be programmed and stored and protected by password.
- Each input channel provides 8 PEQ, gain control, noise gate function, RMS compressor, and configurable delay.
- Each output offers 9 PEQ with the crossover filters wholes slopes from 12dB up to 48dB/Octave.
- Each output path also features peak limiter, HP/LP filters, and driver alignment delay.
- Full matrix mixing mode where inputs may be routed/mixed in any ratio to any output.
- Direct user-friend English PC/Network connection and control.
- Front panel USB connector for direct PC communication.
- RS232 connection for system setup, monitoring and control via full manageable remote PC software.
- Front panel interactive LCD display for local access and configuration.
- Simultaneous control up to 50 units via PC software security lockout.
- Option model of DSP240 (2 In/4 Out) and DSP360 (3 In/6 Out)
Applications:
- Professional Sound System, Sound Reinforcement System, Live Performance, AV Conference System
- Auditoriums, Houses of Worship, Theaters, Convention Centers, Stadium and Stage Monitoring System
Specification:
Model | DSP480 |
Description | Digital Audio Processor |
Analog Input | 4×XLR balanced, >10k Ohm |
Analog Output | 8×XLR balanced, 50 Ohm |
THD+N | 0.002% at 1kHz 0dBu |
S/N Ratio | <100dBA |
Frequency Response | 20-30kHz; -0.5dBu at 20Hz and 20kHz |
AD/DA Converter | 24 bit-48kHz |
DSP Gain | From -40dBu up to +15dBu by 0.1dBu resolution steps |
PEQ | 8 PEQ per channel |
PEQ Type | Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters |
PEQ Gain | From -30dBu up to +15dBu by 0.1dBu resolution steps |
Filter Type | Butterworth, Bessel, Linkwitz Riley |
Filter Slope | From 12dBu up to +48dBu per octave |
PEQ Frequency | 0.05-3 Octaves (Q=0.404-28.852) |
Crossover Filter | HP/LP per output channel |
Input RMS Compressor | Threshold from -20dBu to+20dBu and Byp Attack time from 0.3 ms to200ms; Release time from 0.3 sec up to 3 sec |
Output Peak Limiter | Threshold from -20dBu to+20dBu and Byp Attack time from 1 ms to 900ms; Release time from 0.3 sec up to 5 sec |
Input & Output Polarity | Normal 0° or inverted 180° |
Input & Output Mute | ON/OFF |
Delay | 0-1,000ms per input and output channel |
Presets | 24 user presets |
Connector | 4×XLR inputs, 8×XLR outputs, USB on front panel, RS232 of 9PIN on rear panel |
Power Supply | AC 90V-240V, 50-60Hz |
Dimension | 484×44×222mm, 1RU |
Weight | 4Kg |
