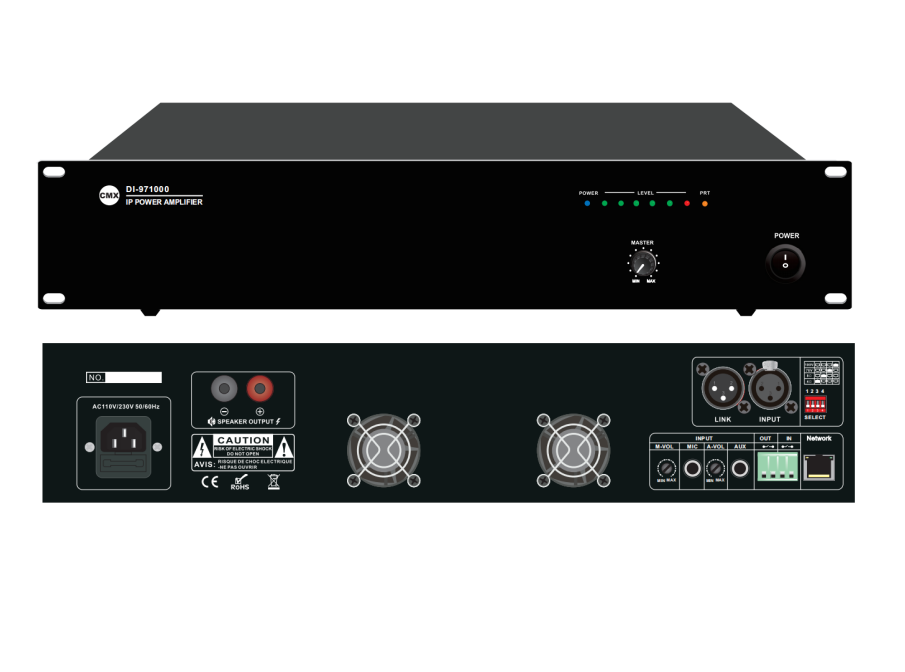

DI-97850 DI-971000 DI-971500 DI-972000 High Wattage IP Network Amplifier
IP Audio SolutionsDI-972000 series is one High Wattage IP Network Amplifiers from 850W, 1000W, 1500W to 2000W, which integrate 100V mixer amplifier, media player and IP audio decoder together. The IP network amplifier could be remotedly controlled by software. The IP network audio system will be used for long distance transmission to save much cable layout cost.
IP Audio Solutions
High Wattage IP Network Amplifier
DI-97850 DI-971000 DI-971500 DI-972000
Description:
The IP Network Amplifier combines the IP audio decoder/IP streaming and 100V/70V/4-8 Ohm high wattage power amplifier together. The IP network amplifier is of 19” rack mount design, it is built-in amplifier rated output at 850W, 1000W, 1500W to 2000W. The IP network technology also allow this IP network amplifier could be installed anywhere even near to the speaker to save cable wiring from control room to each zone. The advantages of the network audio system are: long distance transmission, multiple channel audio matrix, simultaneous group programs & non-dedicated network wiring.
Feature:
- IP network mixer amplifier with audio decoder.
- Simple configuration by system server, paging microphone & IP network amplifier to set up IP audio system.
- Huge system capacity of 6,000 zones paging and multiple BGM system.
- IP based public address system over LAN/WAN or Internet.
- Minimum cable connection by using existing network framework.
- Non-dedicated network audio system solution.
- Economy network PA system for multiple room and multiple program applications.
- Ideal for school, office, restaurant and fitness center IP PA sound system.
- IP network decoder built-in 100V/70V/4-8 Ohm high wattage power amplifier.
- Rated power output of 850W, 1000W, 1500W to 2000W.
- Mic1 input and Aux input and line input and one link output.
- Mic and Aux input with separate volume control.
- One control input and one control output for door access, ring bell or other 3rd party system integration
- Enable to broadcast Mp3 program or pre-recorded voice message from PC server to IP amplifier.
- Remote volume control and program control from server room.
- Timely broadcast ring bell or pre-recorded message to pre-set zones.
- IP remote paging microphone enables to talk to each speaker zone or amplifier over network.
Specification:
Model | DI-97850 | DI-971000 | DI-971500 | DI-972000 |
Description | High Wattage IP Network Amplifier | |||
Power Output | 850W | 1000W | 1500W | 2000W |
Protocol Support | TCP/IP, UDP, IGMP (group broadcasting) | |||
Transmit Speed | 10/100Mbps | |||
Audio Format | 16 digit stereo CD tone | |||
Frequency Response | 20Hz~16KHz | |||
THD | ≤0.3% | |||
S/N Ratio | ≥85dB | |||
Connector | Mic1 input and aux input and line input and one link output. One control input and one control output | |||
Speaker Output | 100V/70V & 4-8Ohm | |||
Working Temp | -5℃ to +40℃ | |||
Humidity | 10% ~ 90% | |||
Power Consumption | 1000W | 1200W | 1750W | 2500W |
Power Supply | AC220V, 50-60Hz | |||
Dimensions | 484x375x88mm | |||
Weight | 9.3kg | 9.5kg | 9.8kg | 10.0kg |
