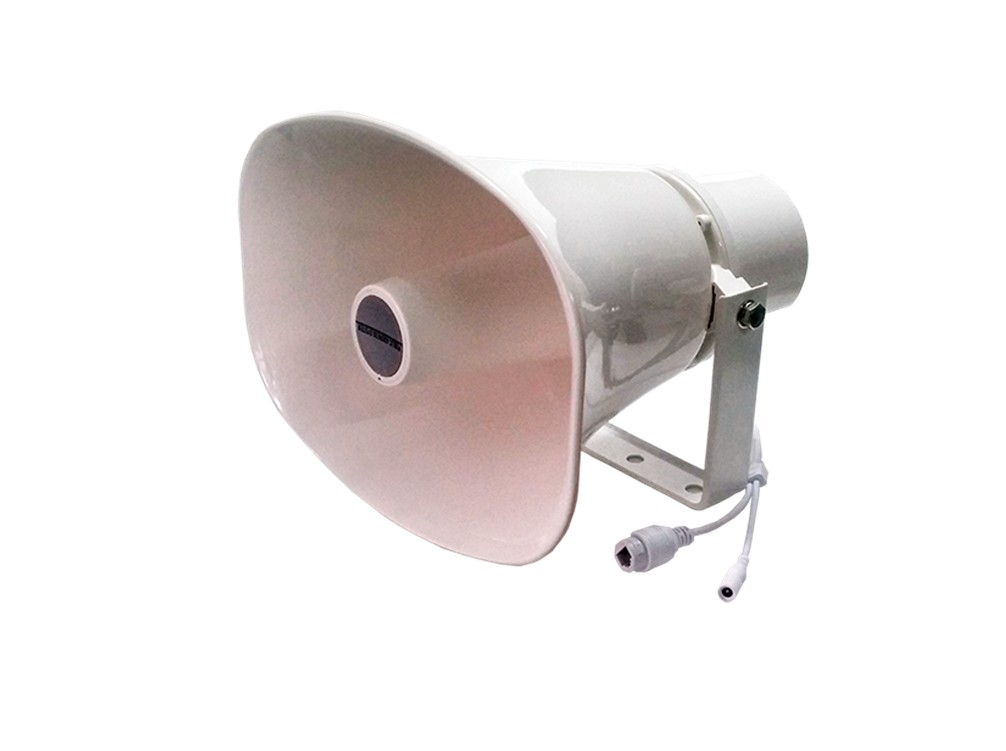

DI-97603 IP POE Horn Speaker IP66 Weatherproof 30W

DI-97603 is one IP based POE horn speaker, built-in ip decoder, POE power supply amplifier and outdoor horn speaker all in one solution. Through the IP software for general speech, live speech, emergency speech, music broadcast, voice alarm and scheduled program to be operated to the IP POE loudspeakers. This IP POE horn speaker is of IP66 outdoor waterproof and dust proof rate.

IP POE Horn Speaker

DI-97603


Features:

  • All in one outdoor IP horn speaker includes IP streaming, IP decoder, amplifier and speaker
  • Outdoor IP horn speaker support POE network or non-POE network system.
  • POE IP PA system with background music, paging system and voice alarm system
  • Minimum cable connection over existing LAN/WAN/Internet system
  • Huge system capacity up to 6,000 zones
  • Compatible with IEEE 802.3at POE standards
  • IP based POE powered 30 Watt outdoor horn speaker
  • IP66 waterproof and dust proof rate for extreme severe outdoor working environment
  • Built-in IP streaming audio decoder, class-D amplifier and speaker
  • Single network cable for control, signal and power supply
  • Same POE speakers enable to be several group or zone defined
  • Different music or voice message simultaneously broadcasted through different POE speakers
  • Paging prioritization and background music system
  • Network adjustable speaker volume
  • 12V DC power supply input as standby use


Description:

The Outdoor IP POE Horn Speaker DI-97603 is the latest in IP technology. This Power over Ethernet (Compatible with IEEE 802.3at) POE horn speaker featured of network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast. The POE outdoor IP horn speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply. The POE outdoor IP horn speaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External 12V DC connector is also equipped in this POE speaker for standby power supply use. The POE outdoor IP horn speaker is designed with output power at 30 Watt, its amplifier technology is class-D type. The remote paging microphone DI-9700RM enables to make announcement over individual speaker, group speakers over network.


Specifications:

Model

DI-97603

Description

IP POE Horn Speaker

Power Output

30W Watt (1KHz@-3dB)

Built-in Amplifier

Class-D technology, 30 Watts, 4 Ohm

Network I/F

10/100Mbps

Protocol

ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast)

Audio Format

MP3/MP2

Audio Quality

16digit stereo CD level

Sampling Rate

8K~48K

Bit Rate

8K~512Kbps

Sensitivity

92dB/1W/1M

S/N Ratio

≧85dB

THD

≦0.1%

Frequency Response

100-18KHz(±3dB)

Connector

One RJ45 port for existing LAN/WAN & internet

One DC12V battery backup input

Power Input

POE 802.3at & DC 12V

Operation Temp

-30℃ to +55℃

Dimension

Ø285×205mm

Bracket

Stainless mounting U-shaped bracket is supplied

Material

ABS enclosure in white

Weight

2.4kg




DI-97603 IP POE Horn Speaker IP66 Weatherproof 30W
DI-97603 is one IP based POE horn speaker, built-in ip decoder, POE power supply amplifier and outdoor horn speaker all in one solution. Through the IP software for general speech, live speech, emergency speech, music broadcast, voice alarm and scheduled program to be operated to the IP POE loudspeakers. This IP POE horn speaker is of IP66 outdoor waterproof and dust proof rate.
